Cold Start, Engine Data Sensors & Torque Converter Clutch
Cold Start, Engine Data Sensors & Torque Converter Clutch

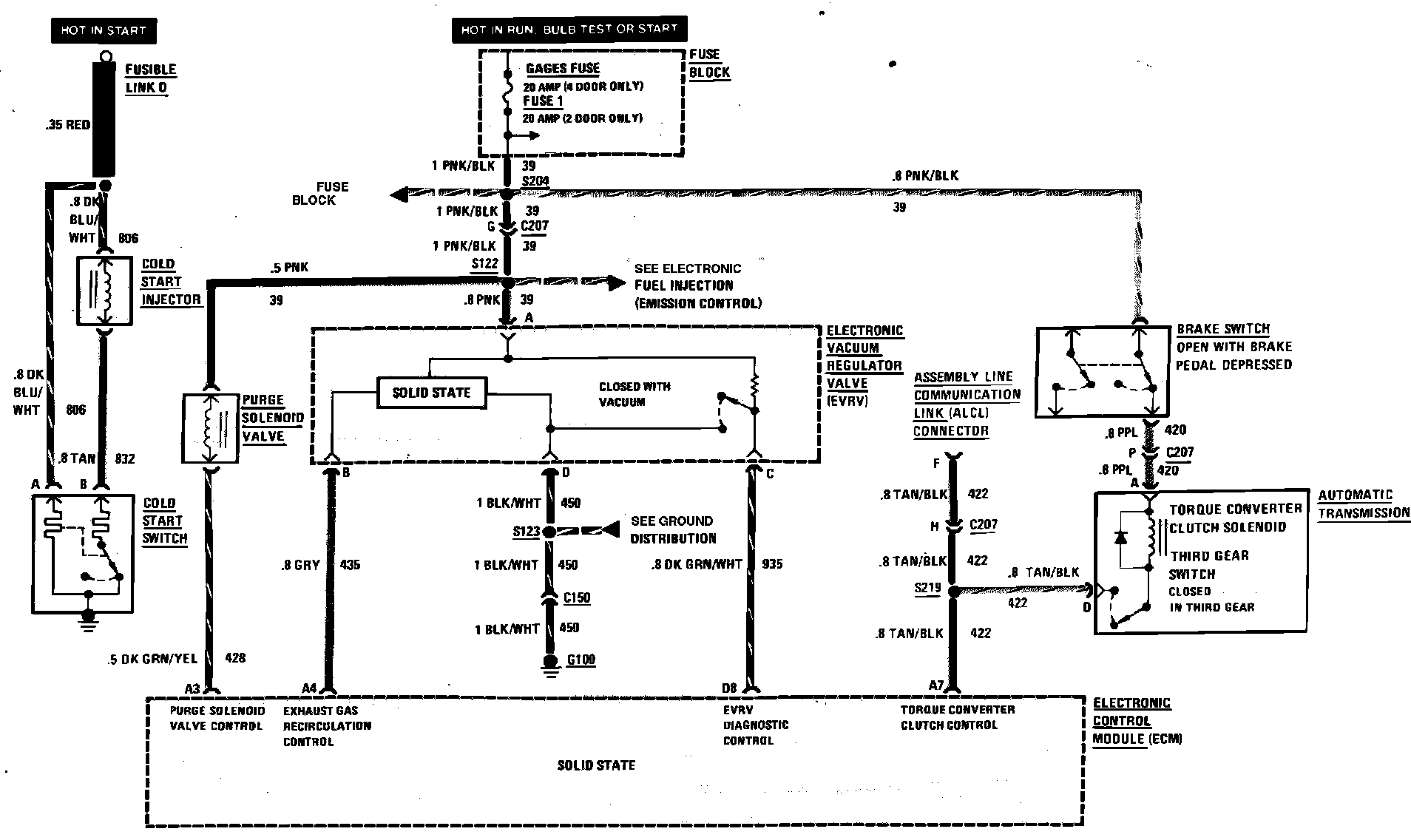

Multiport Fuel Injection (Cold Start, Engine Data Sensors & Torque Converter Clutch) Wiring Circuit:
