Home
>>
Chevrolet
>>
1985
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Window Door CB & A/C Heater & C/H Fuse
Window Door CB & A/C Heater & C/H Fuse

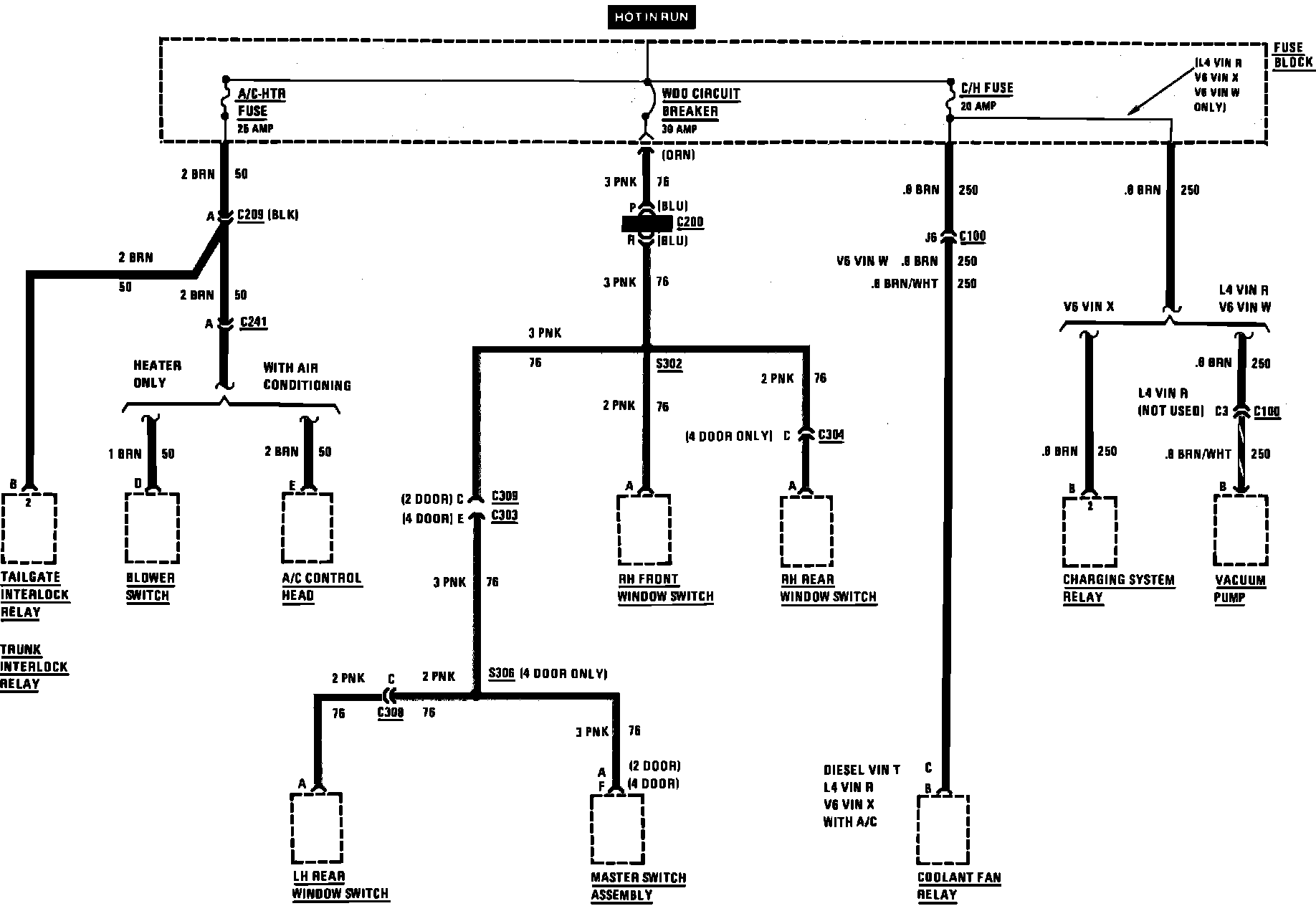

Fuse Block Details-Window Door Operation Circuit Breaker, A/C Heater Fuse & C/H Fuse:
