Electrical Diagrams

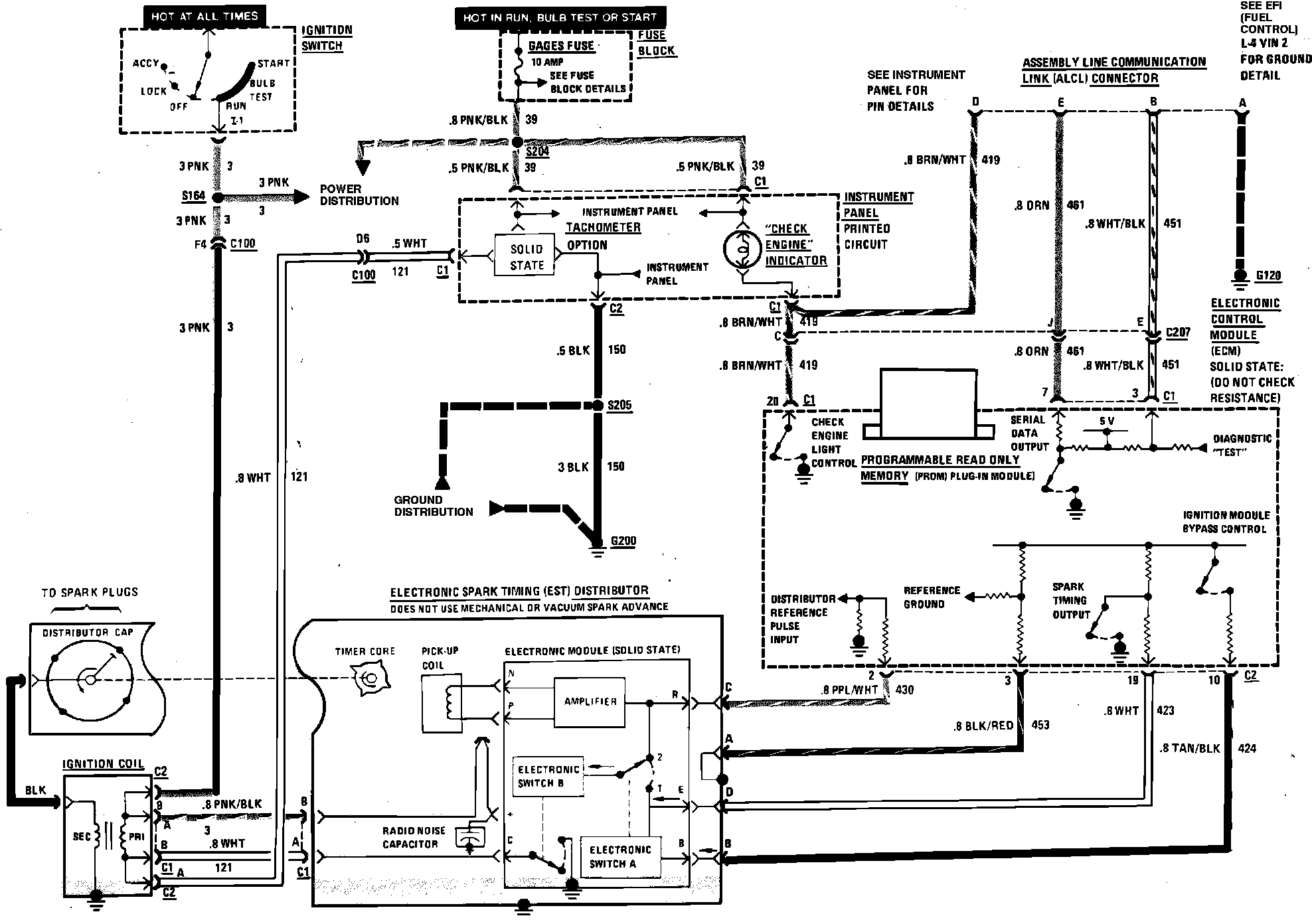

Throttle Body Injection Wiring Circuit (Check Engine Lamp, Ignition & Tachometer):
