Instrument Panel, Gauges and Warning Indicators: Specifications

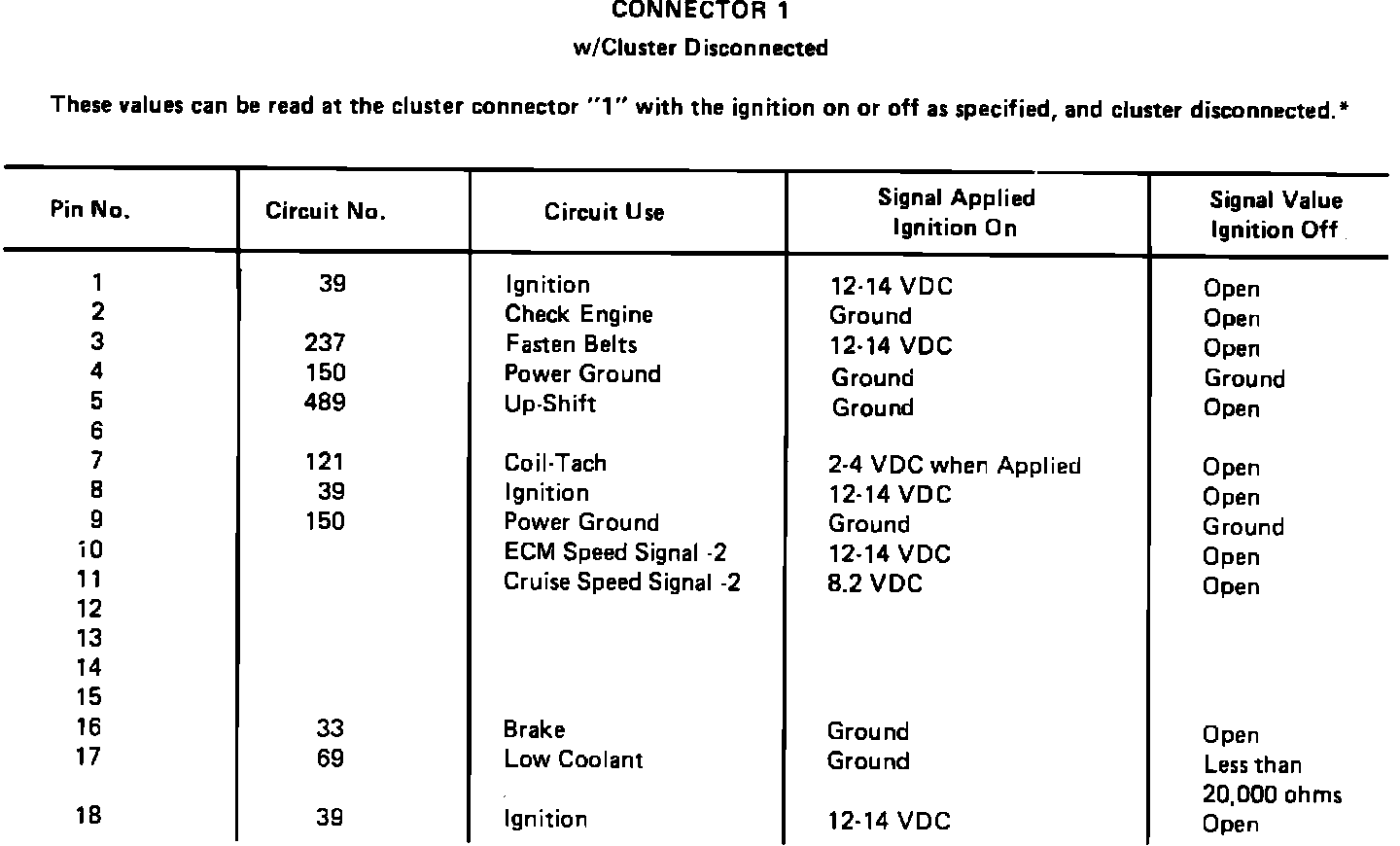

Instrument Cluster Connector C1:

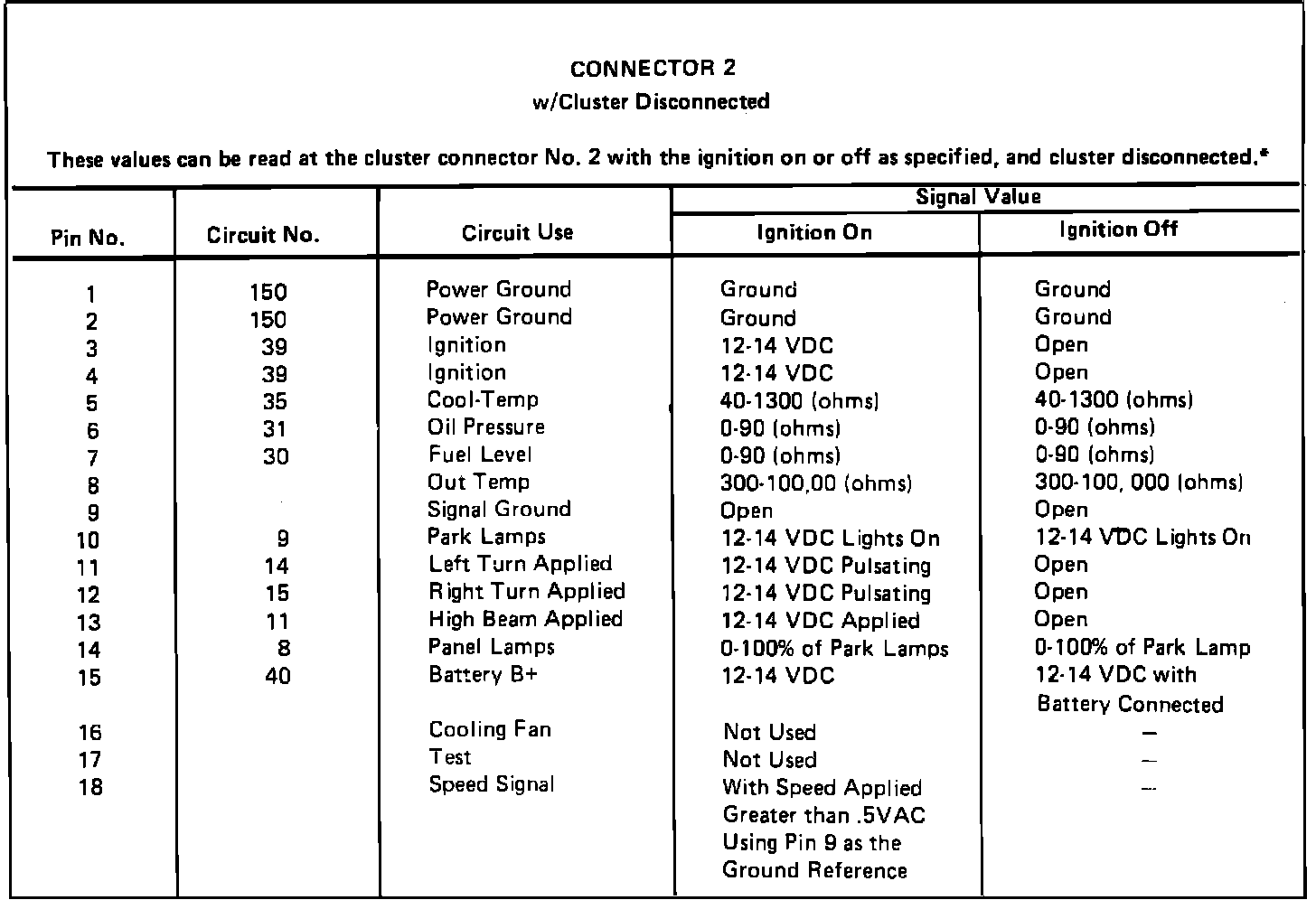

Instrument Cluster Connector C2:
