Home >> Chevrolet >> 1986 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Manifold Absolute Pressure (MAP) Sensor >> Convertible

Convertible

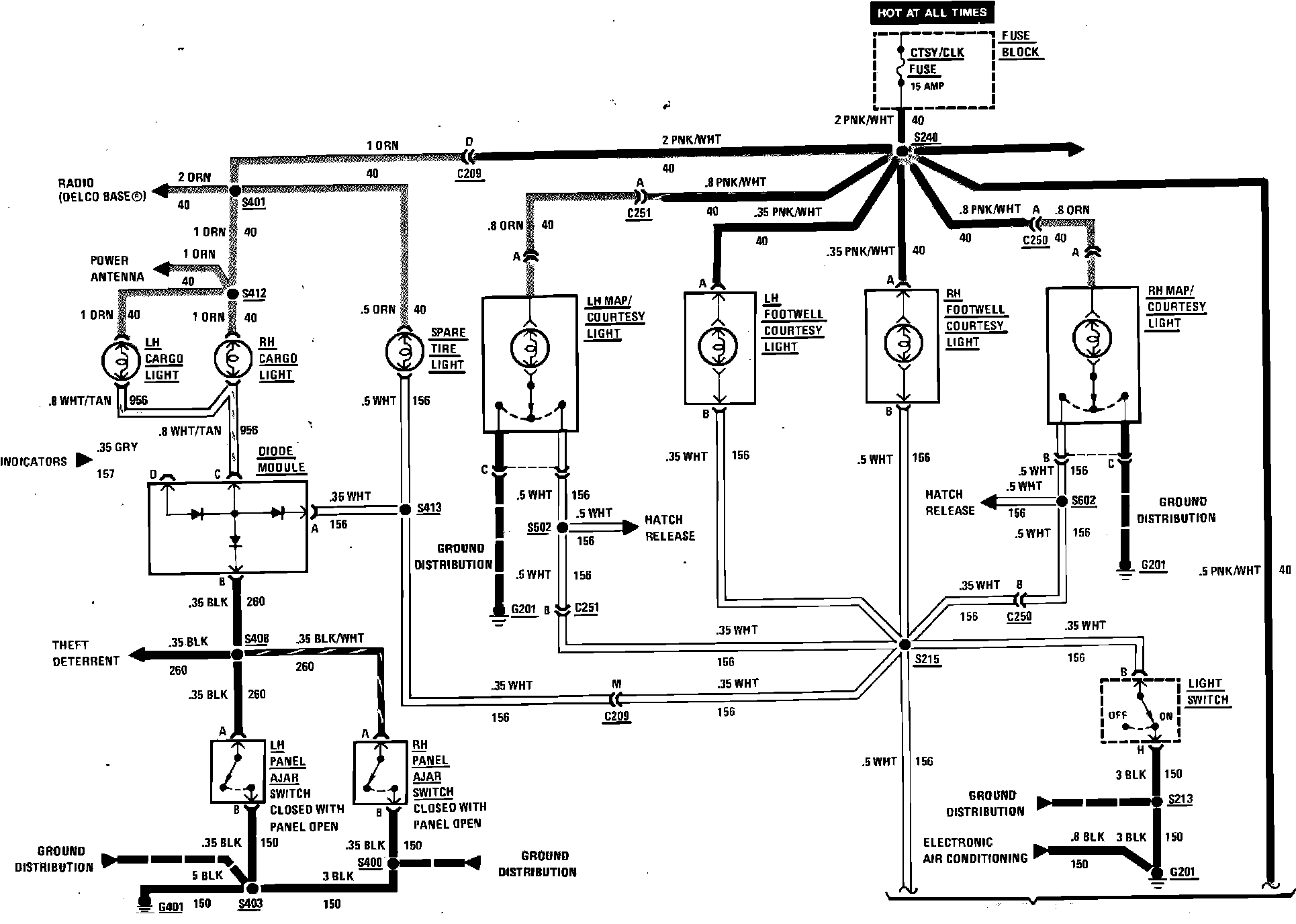

Cargo, Courtesy, Map, Spare Tire & Vanity Mirror Lamp Wiring Circuit (Part 1 of 2). Convertible:

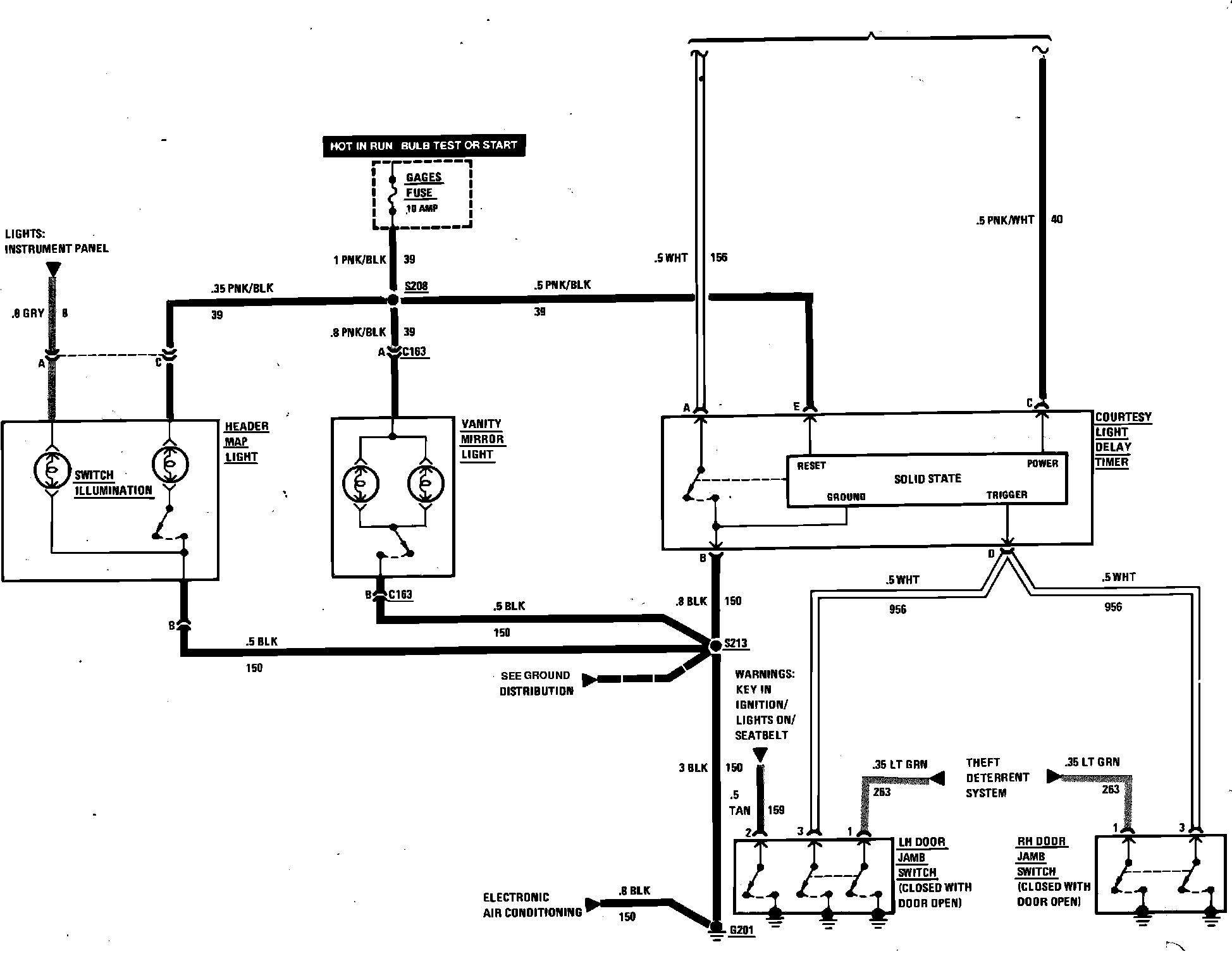

Cargo, Courtesy, Map, Spare Tire & Vanity Mirror Lamp Wiring Circuit (Part 2 of 2). Convertible:
