Home >> Chevrolet >> 1986 >> Spectrum L4-91.5 1.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element

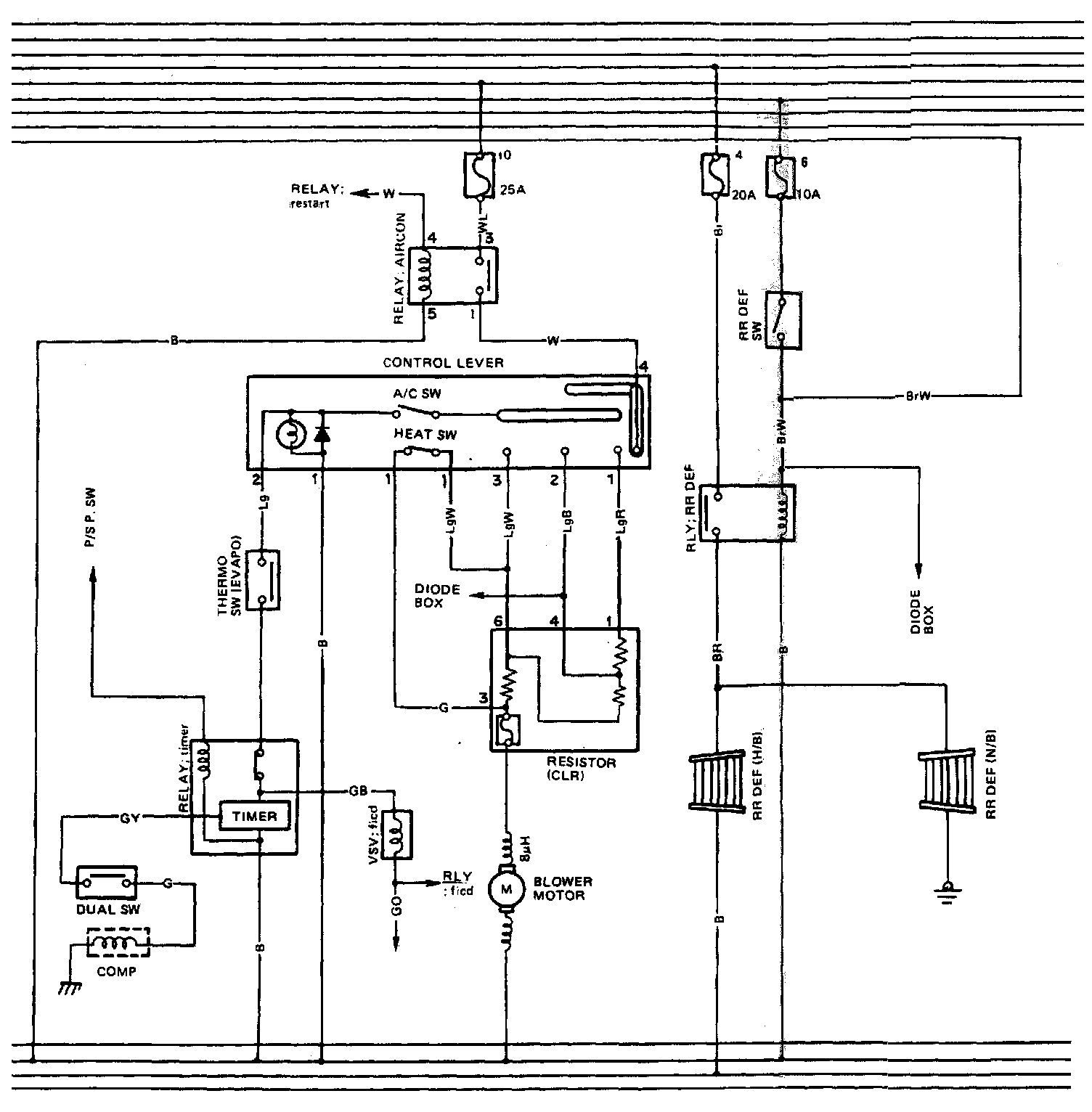

Heated Glass Element

Rear Defroster / Heating & A/C:
