Altitude Compensator: Testing and Inspection

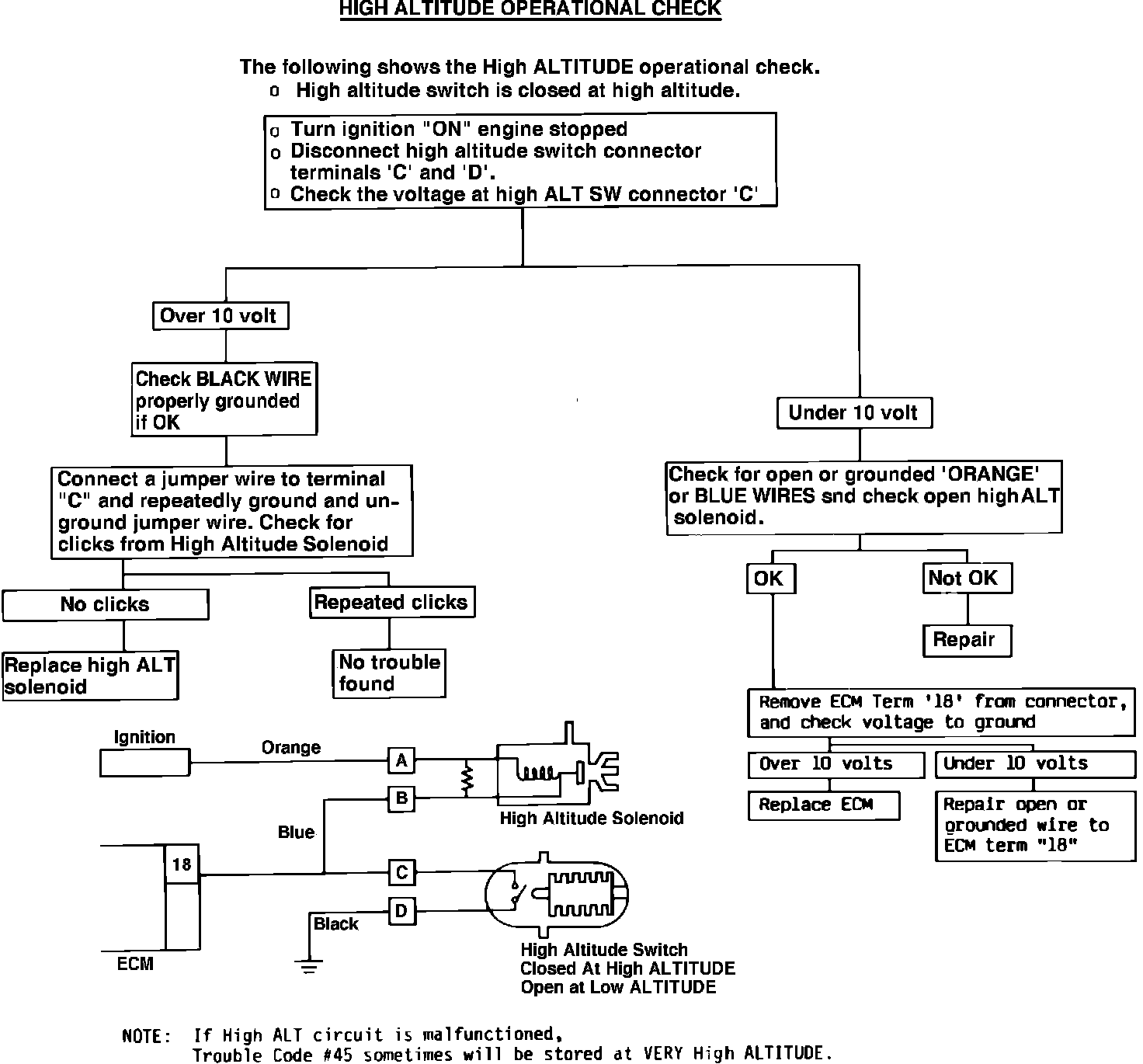

Fig. 33 High altitude emission control system operational check:
