Home >> Chevrolet >> 1987 >> Beretta L4-121 2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> With Air Conditioning >> Test D: Blower Switch Test >> Table 2

Table 2

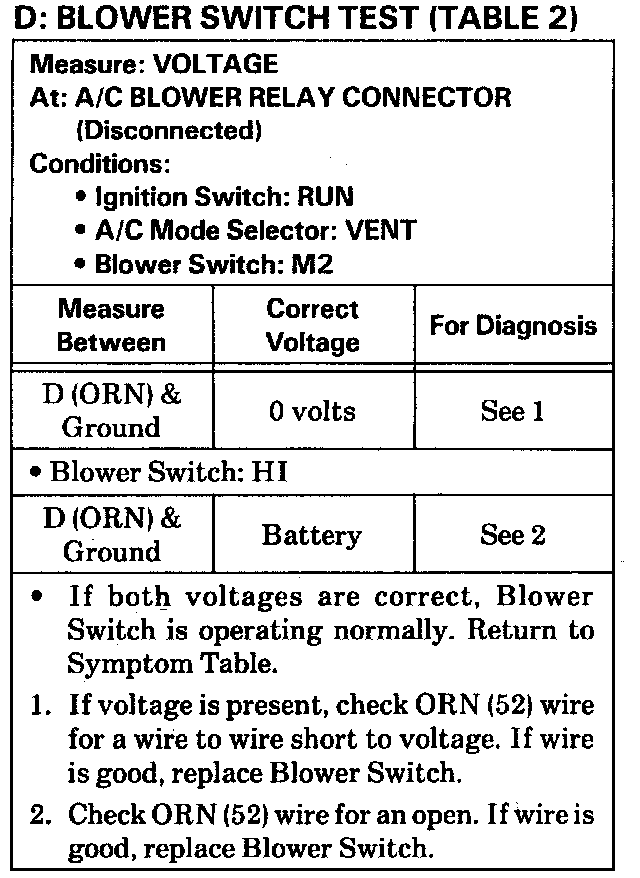

Test D Blower Switch Test Table 2:
