Home >> Chevrolet >> 1987 >> Camaro V8-350 5.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Accessory Fuse

Accessory Fuse

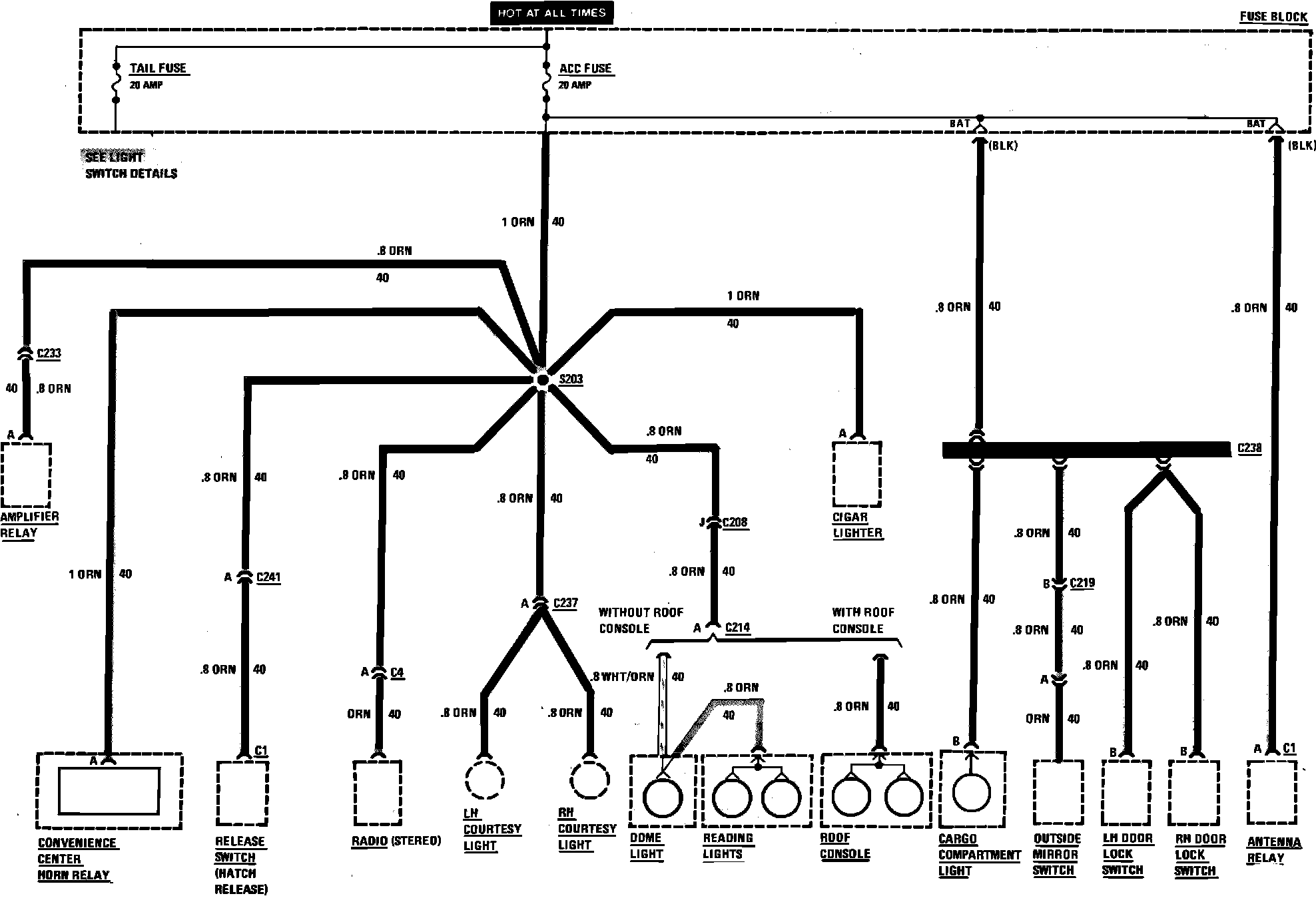

Fuse Block Details (Acc Fuse):
