Turn/Back-Up Fuse & Window Circuit Breaker
Turn/Back-Up Fuse & Window Circuit Breaker

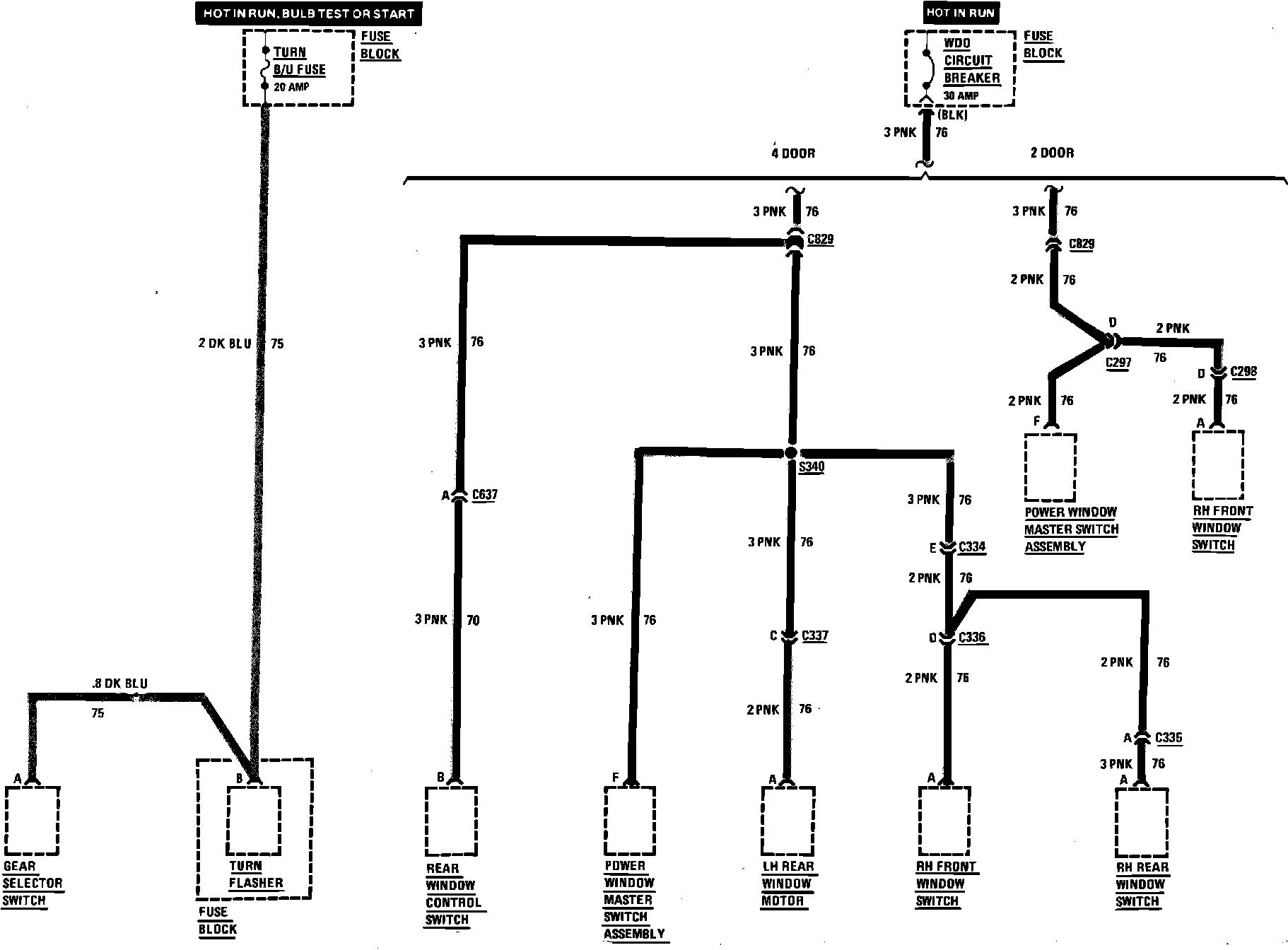

Fuse Block Details (Turn/Back-Up Fuse & Window Circuit Breaker):
