Back-Up & Turn Fuse, Dsl/ECM Fuse
Back-Up & Turn Fuse, Dsl/ECM Fuse

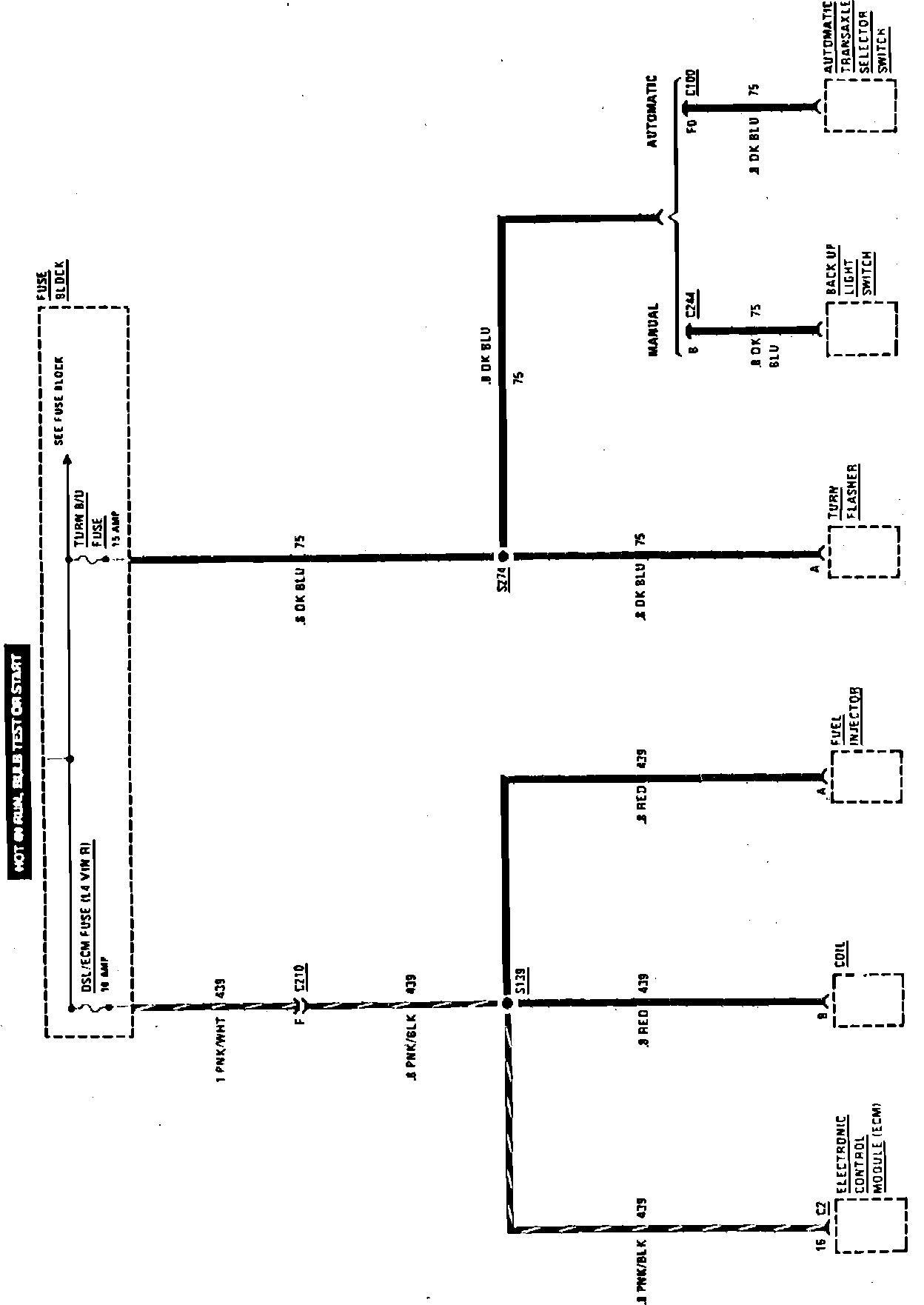

Fuse Block Details (Back-Up & Turn Fuse, DSL/ECM Fuse):
