Home >> Chevrolet >> 1988 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Power Accessory Circuit Breaker

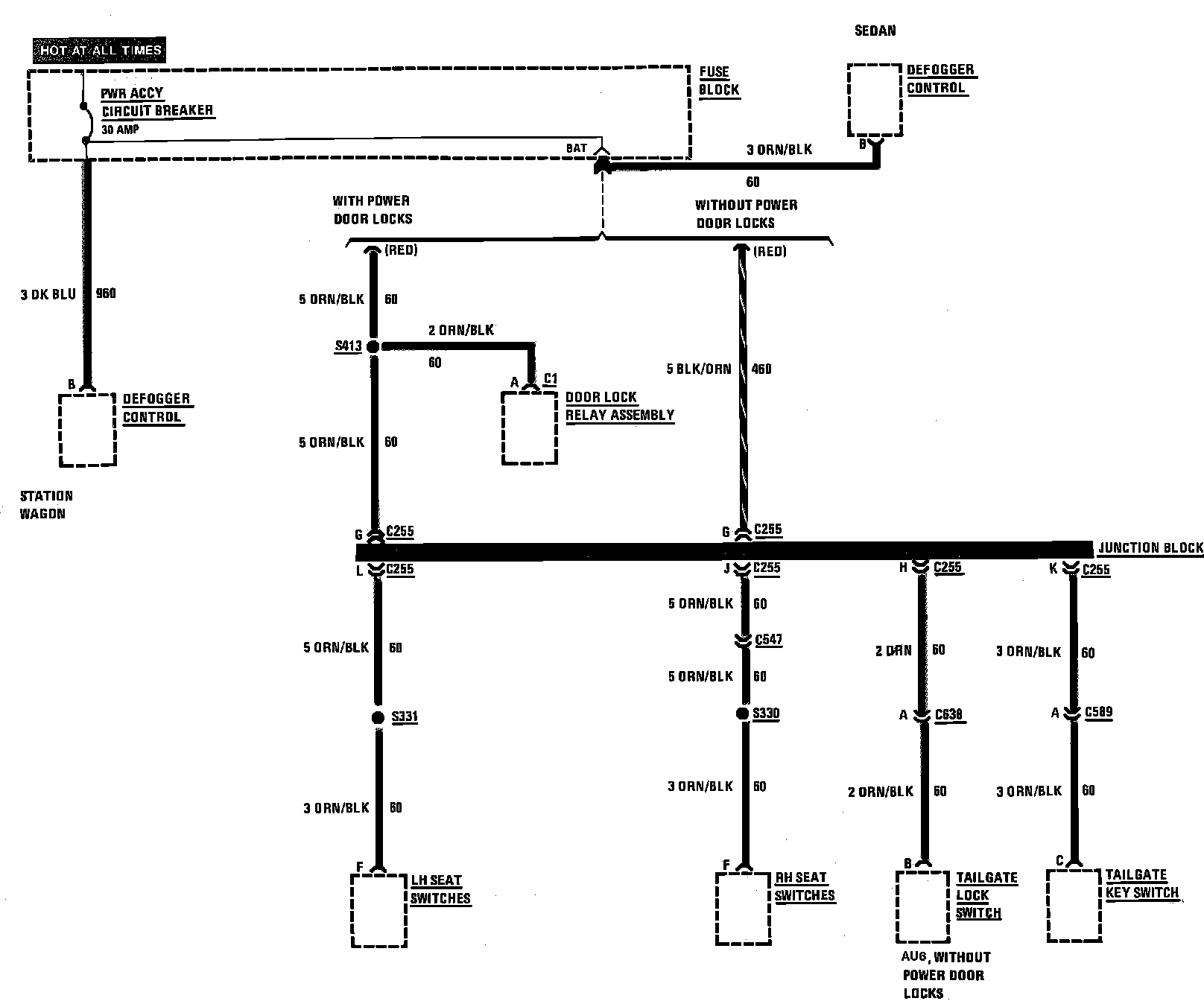

Power Accessory Circuit Breaker

Power Accessory Circuit Breaker:
