Power Window Circuit Breaker
>>
Station Wagon W/Power Windows
Station Wagon W/Power Windows

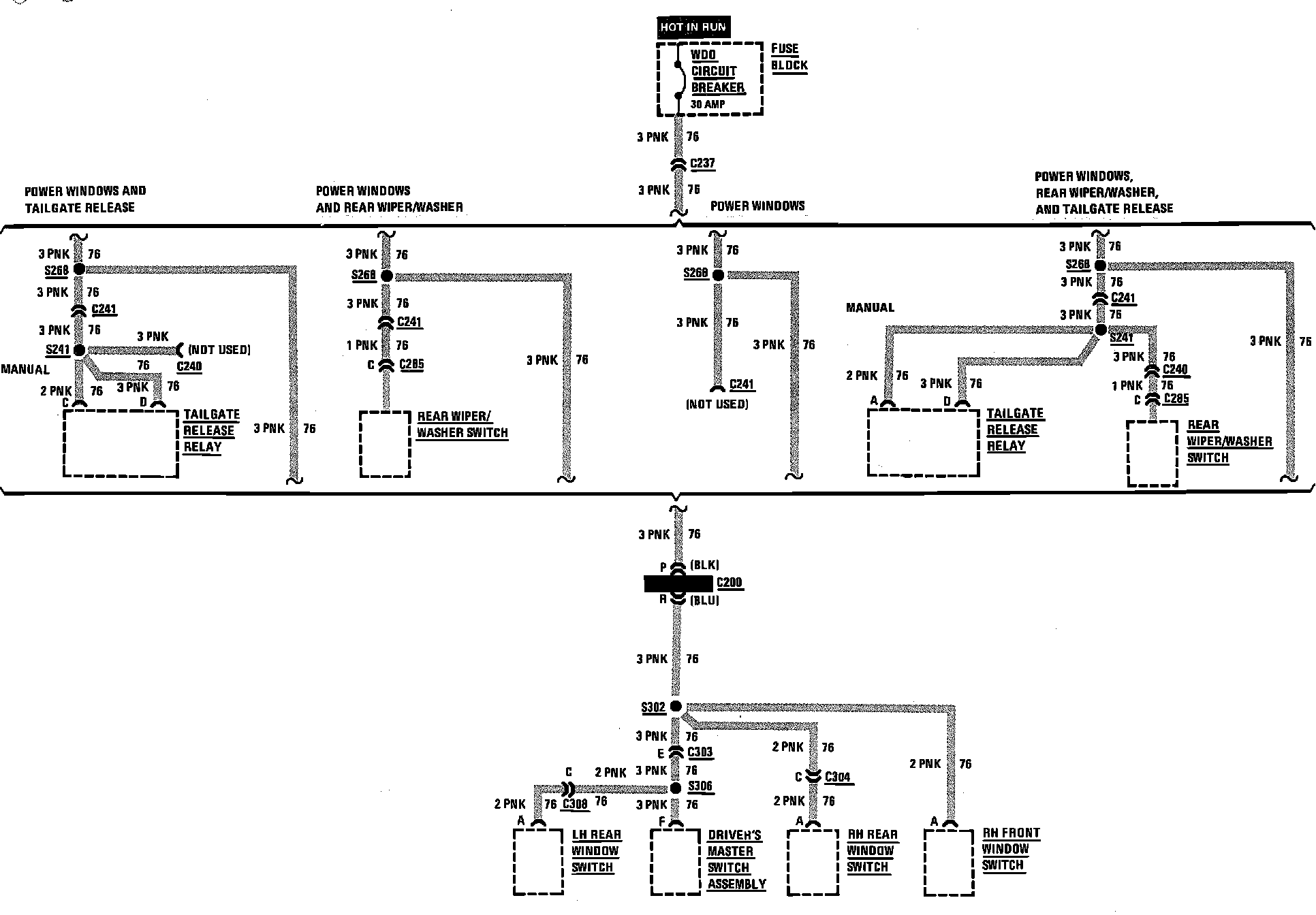

Fuse Block Details (Window Circuit Breaker)Station Wagon W/Power:
