Injector 1 Fuse & Injector 2 Fuse
Injector 1 Fuse & Injector 2 Fuse

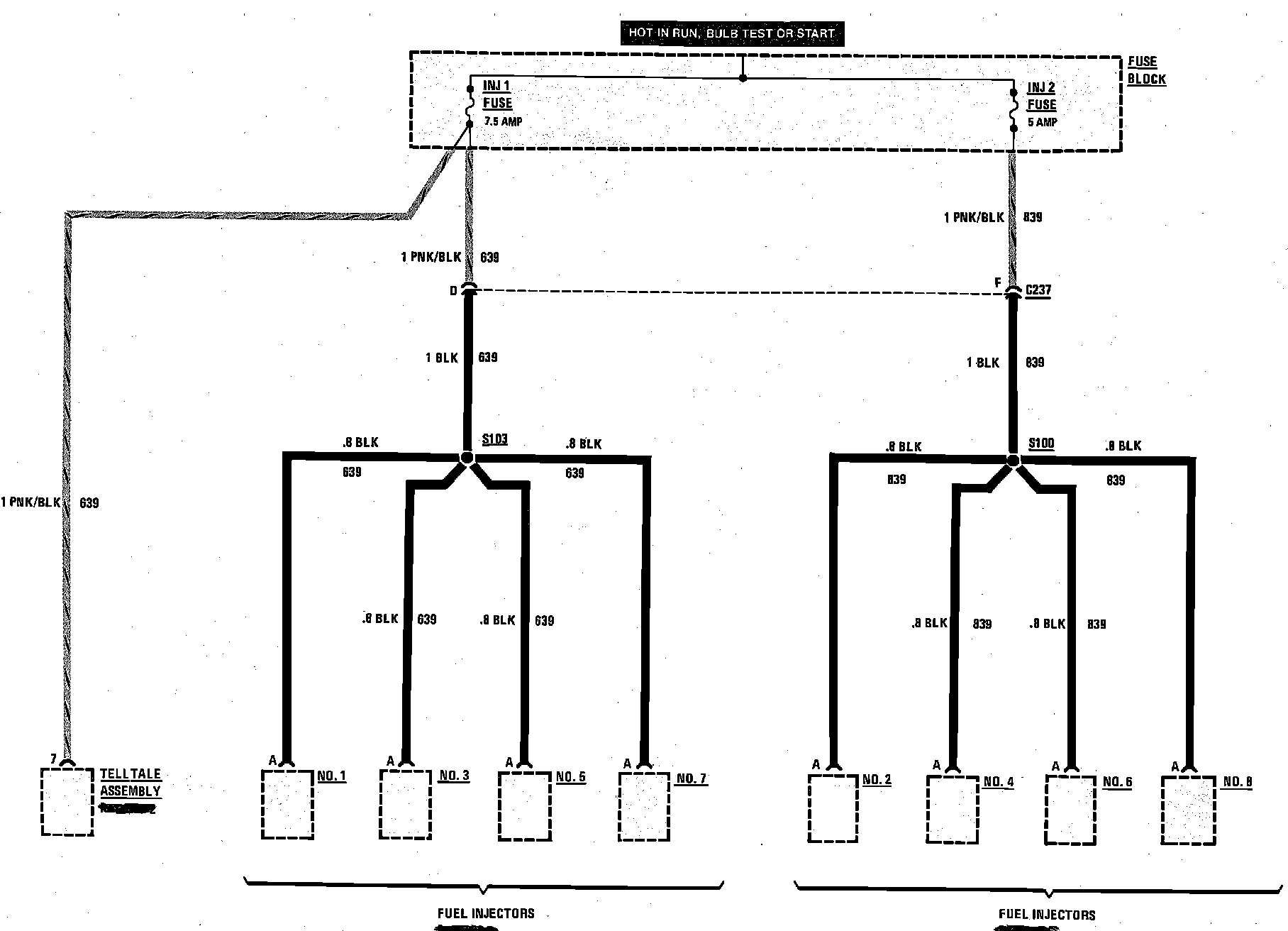

Fuse Block Details (Injector 1 Fuse & Injector 2 Fuse):
