Wheel Speed Sensor: Testing and Inspection

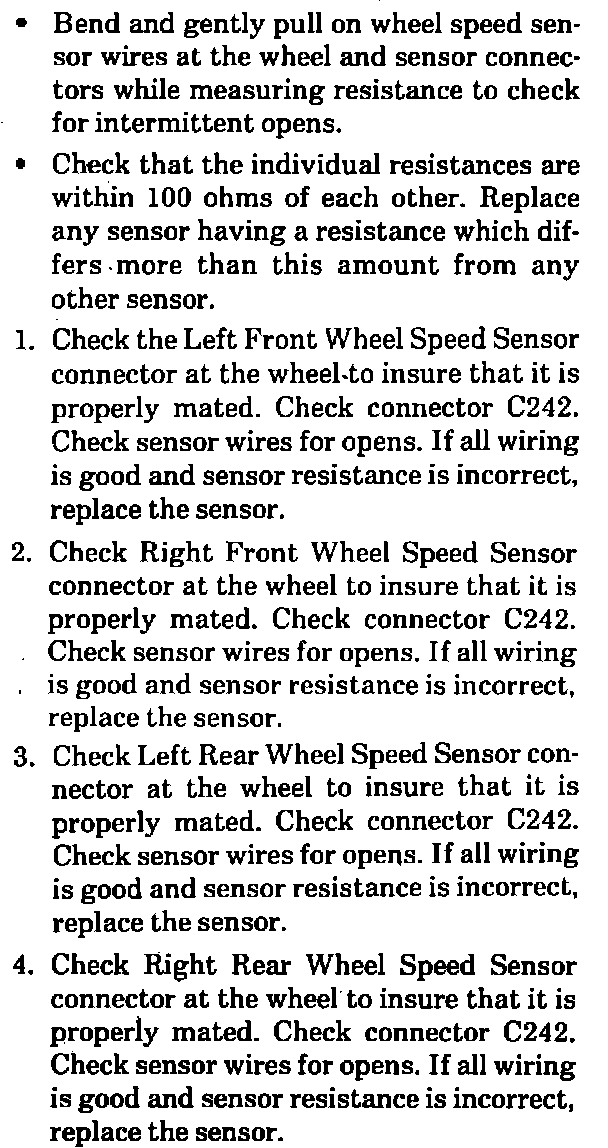

Fig. 14 Wheel Speed Sensor Test (Part 1 Of 2). 1989:



Fig. 14 Wheel Speed Sensor Test (Part 2 Of 2). 1989:
