Back-Up/Turn Fuse & Window Circuit Breaker
Back-Up/Turn Fuse & Window Circuit Breaker

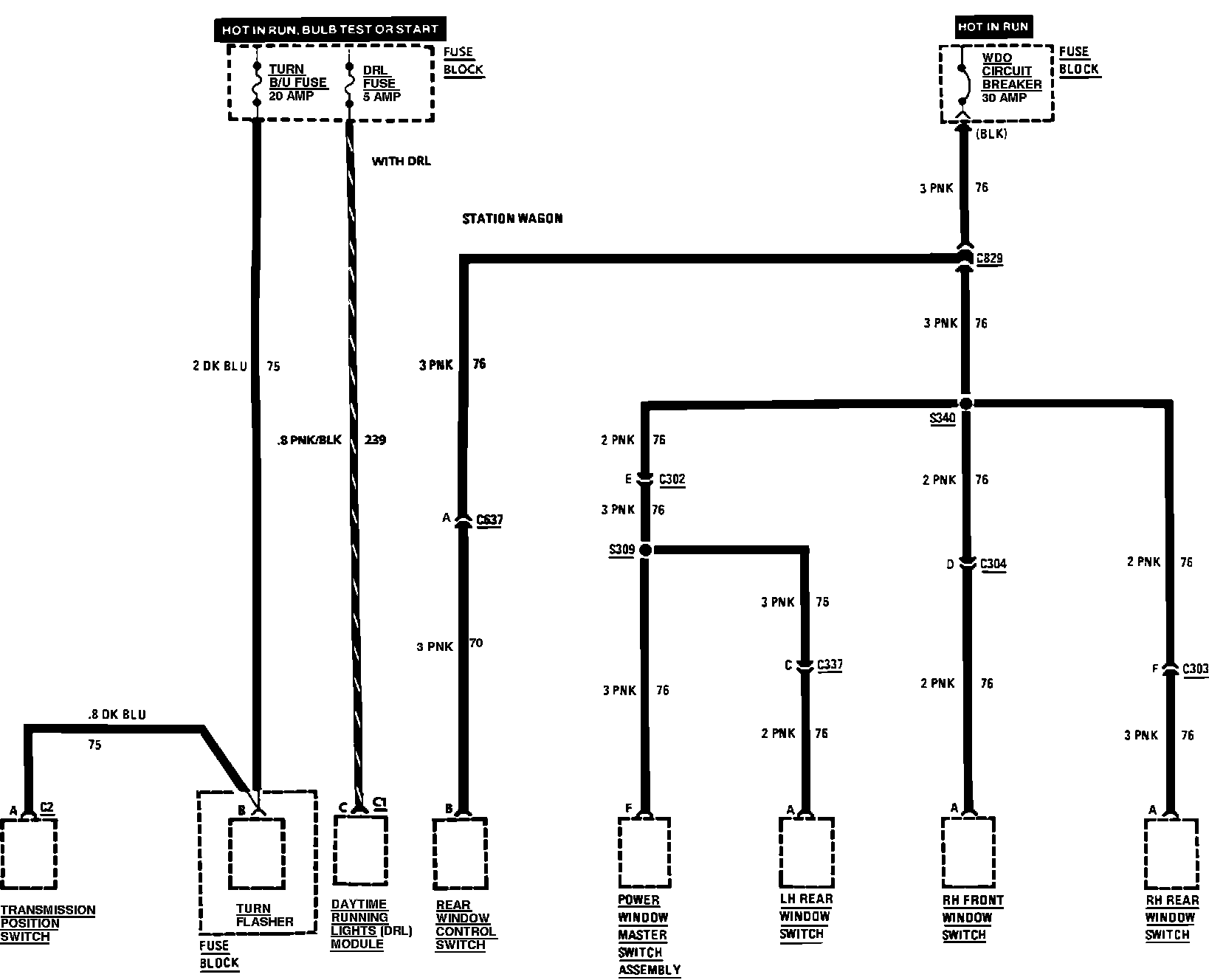

Fuse Block Details. Back-Up/Turn Fuse & Window Circuit Breaker:
