Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Fuse
Courtesy Fuse

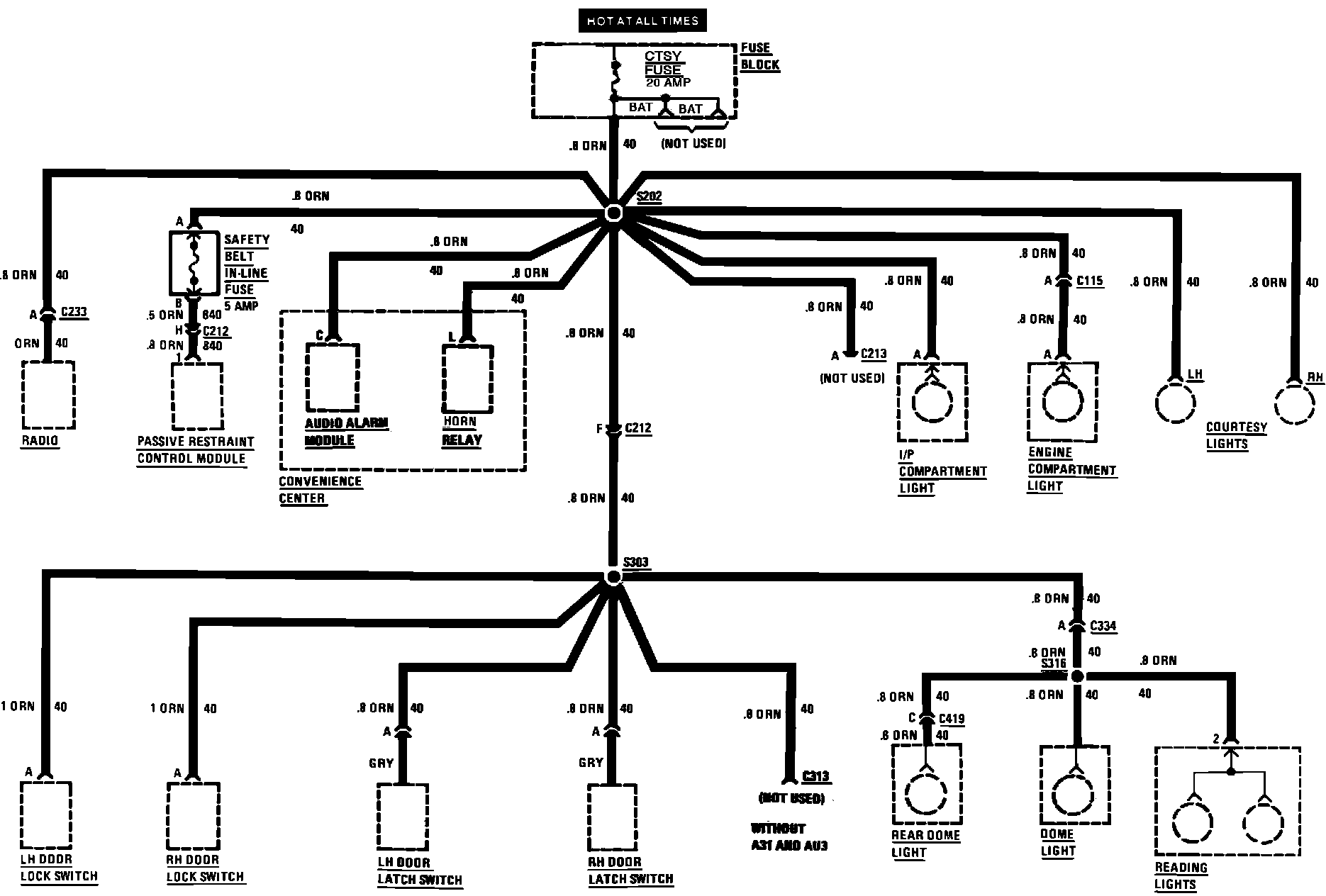

Fuses. Courtesy Fuse:
