Multiport Fuel Injection - Schematic Update

9216chevy04

Number: 91-77-8A

Section: 8A

Date: October 1990

Corporate Bulletin No.: 038136


Subject:
MULTIPORT FUEL INJECTION


Model and Year:
1991 LUMINA WITH 3.1L AND 3.4L ENGINE





TO: ALL CHEVROLET DEALERS

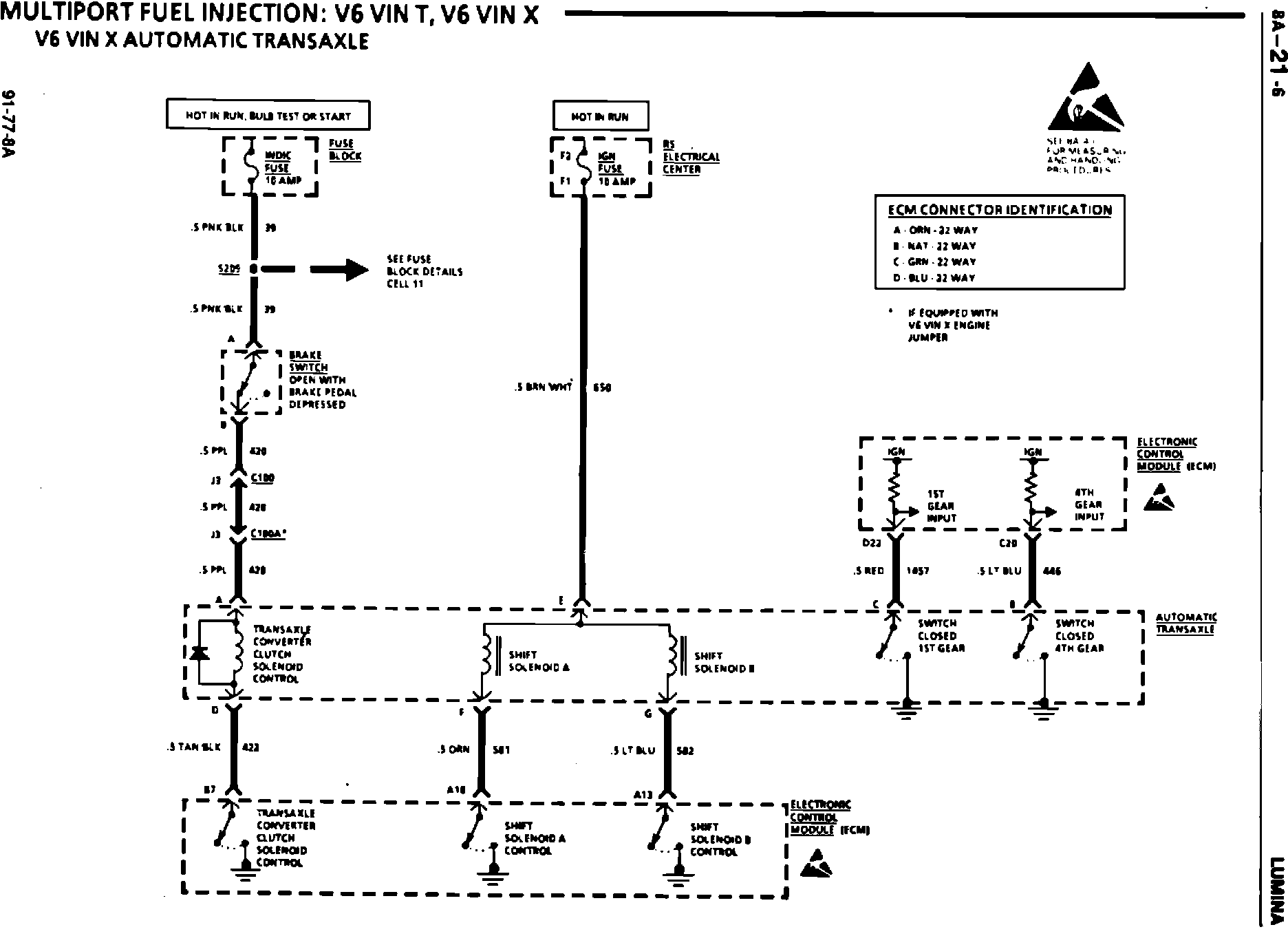

The attached schematic for the 1991 Chevrolet Lumina Service Manual supersedes the existing page 8A-21-6 found in Electrical Diagnosis.

Please update your copies of the Service Manual.
