Home >> Chevrolet >> 1992 >> Lumina L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram >> Less A/C

Less A/C

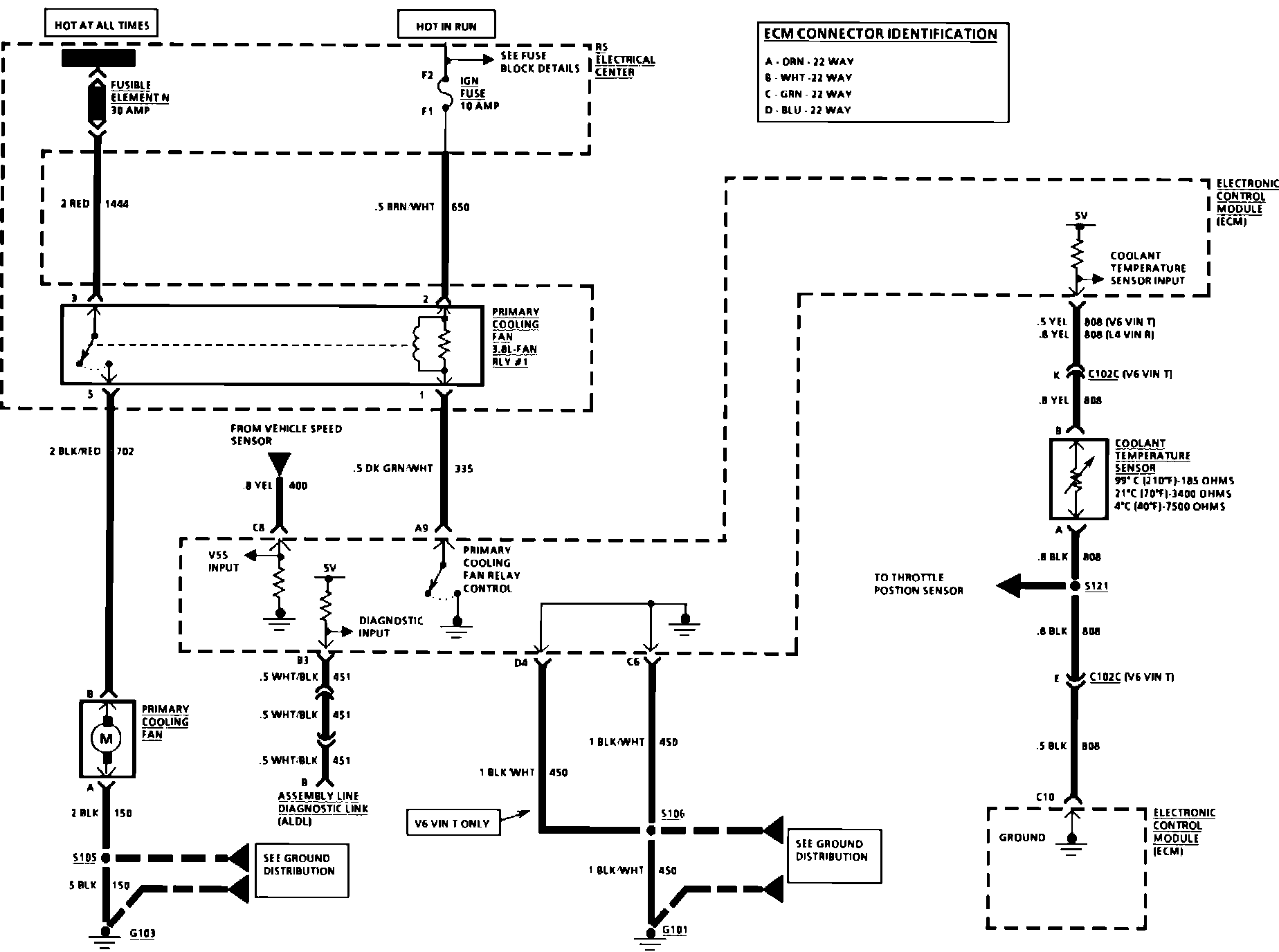

Coolant Fan Wiring Circuit:
