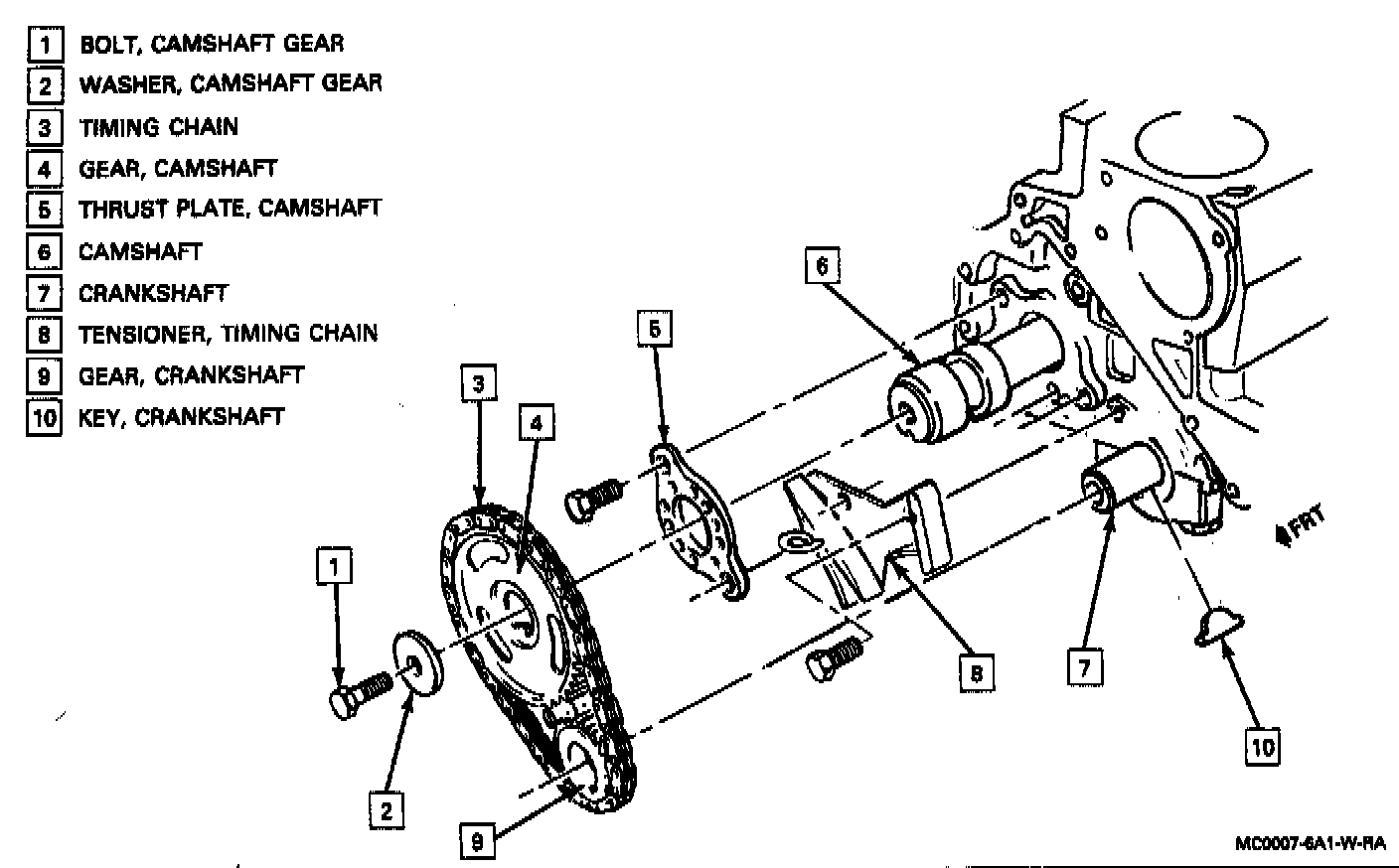

Timing Chain: Service and Repair

Remove or Disconnect
1. Front cover.
2. Loosen camshaft bolt.
^ This will aid in preventing camshaft from moving off timing marks.

3. Align cam and crankshaft timing marks (Engine at T.D.C.).
4. Camshaft bolt.
5. Timing chain and sprocket.

Install or Connect
1. Timing chain and sprocket.
^ Align timing marks with engine at T.D.C.

2. Camshaft bolt.

Tighten
^ Bolt to 58 N.m (43 lb. ft.).

3. Front cover.
