Home >> Chevrolet >> 1993 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 9

Fuse 9

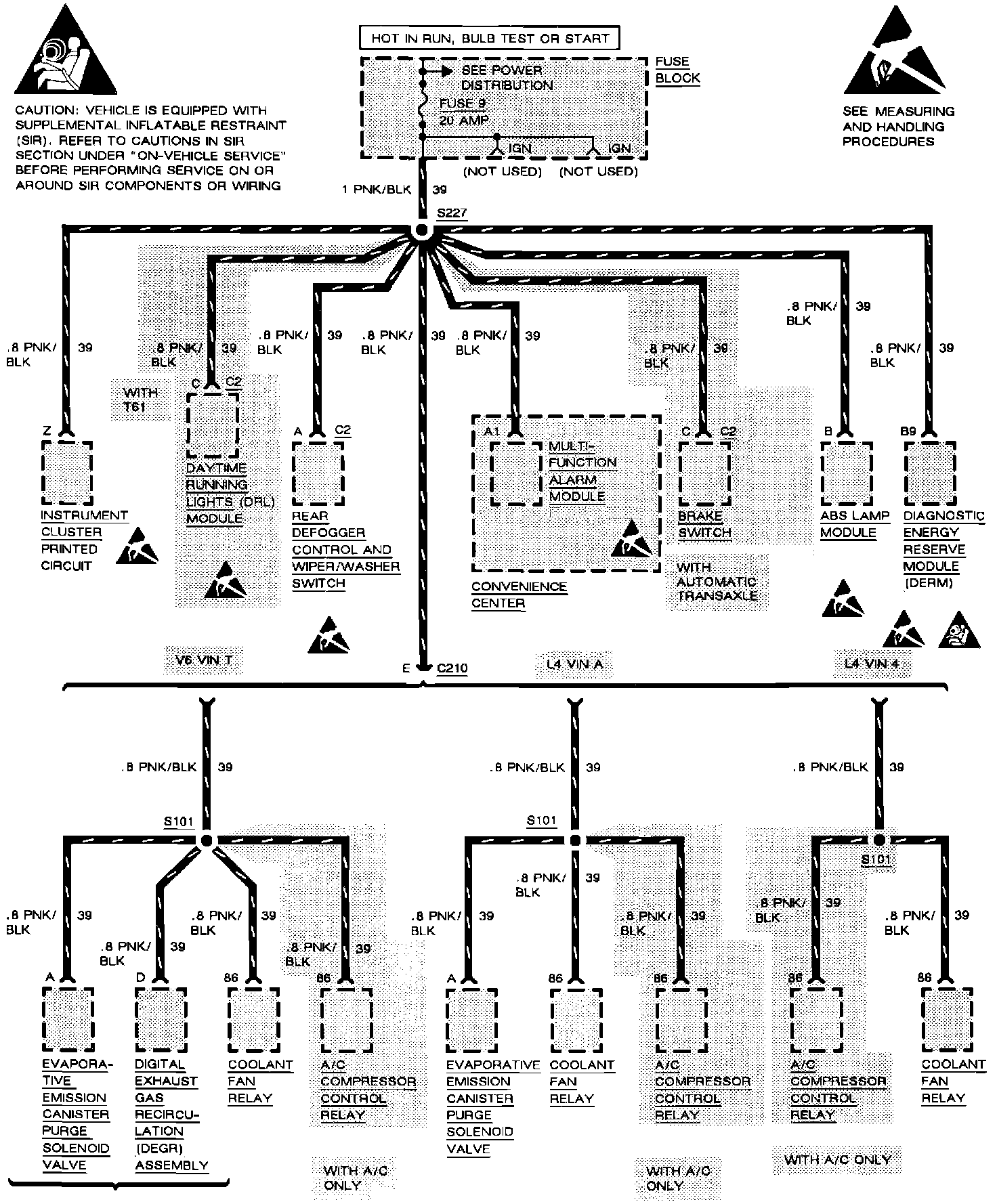

Wiring Diagram:
