Distributor & Malfunction Indicator

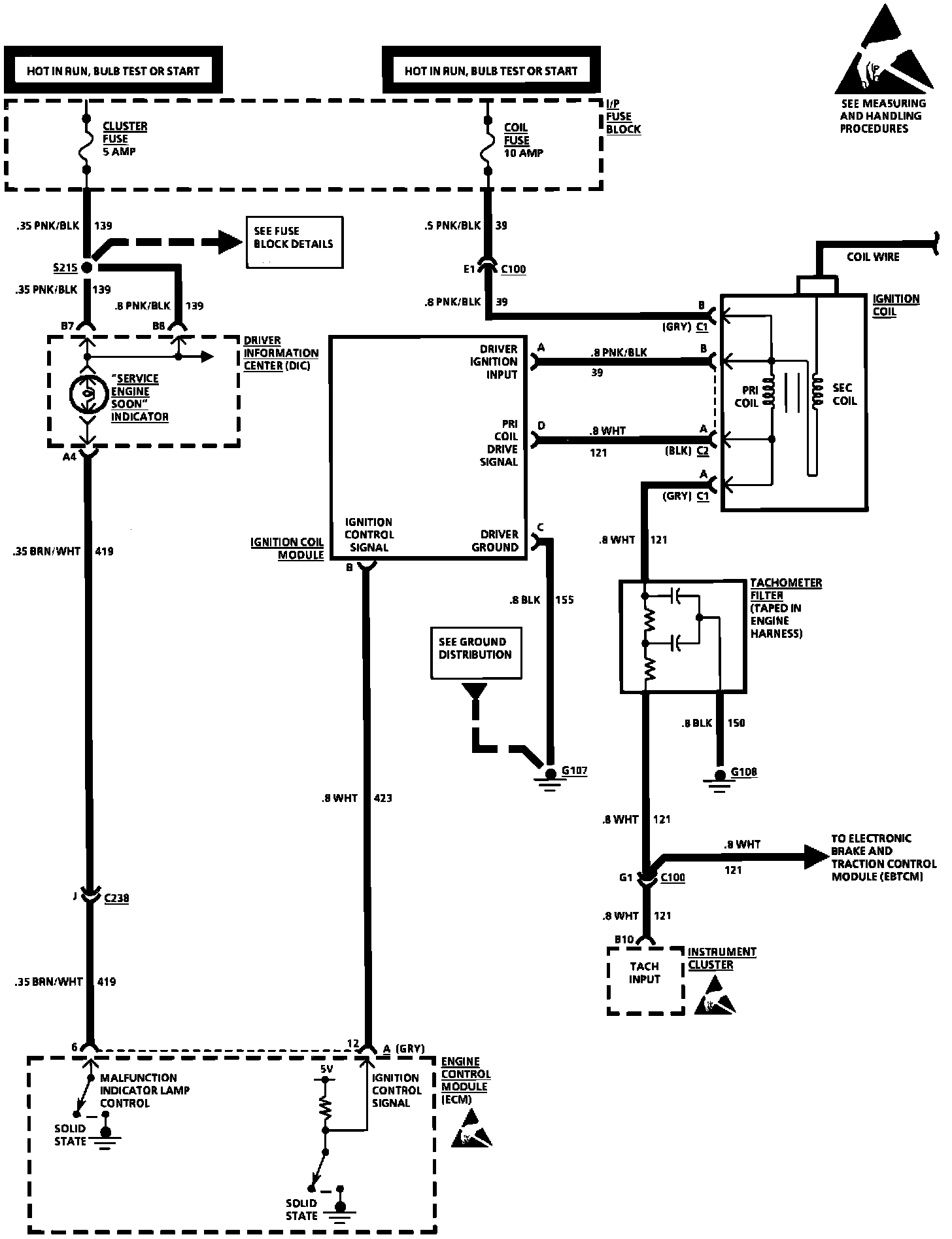

MFI: Distributor Ignition System And Malfunction Indicator Lamp:

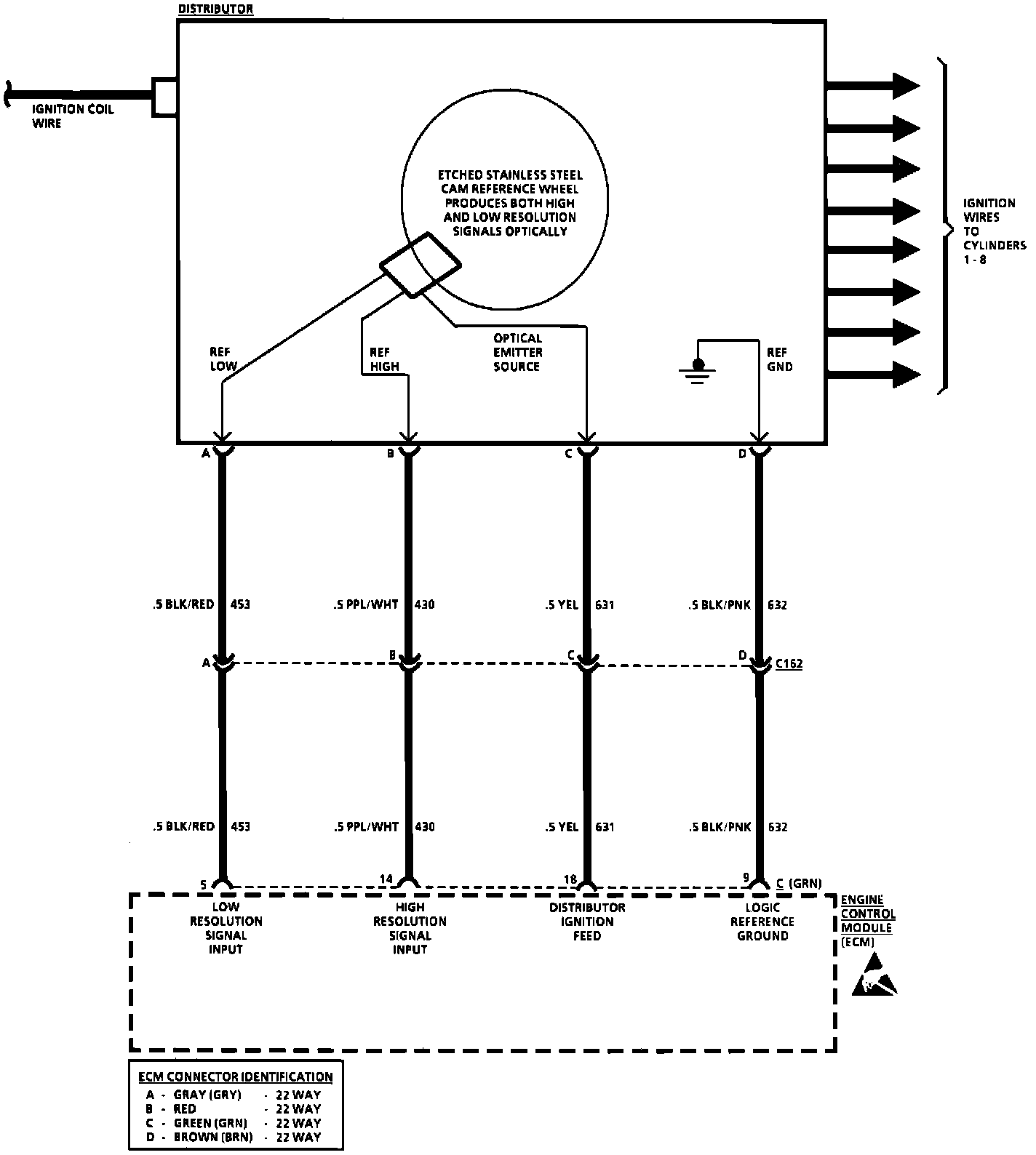

MFI: Distributor Ignition System And Malfunction Indicator Lamp:
