Disassembly/Assembly

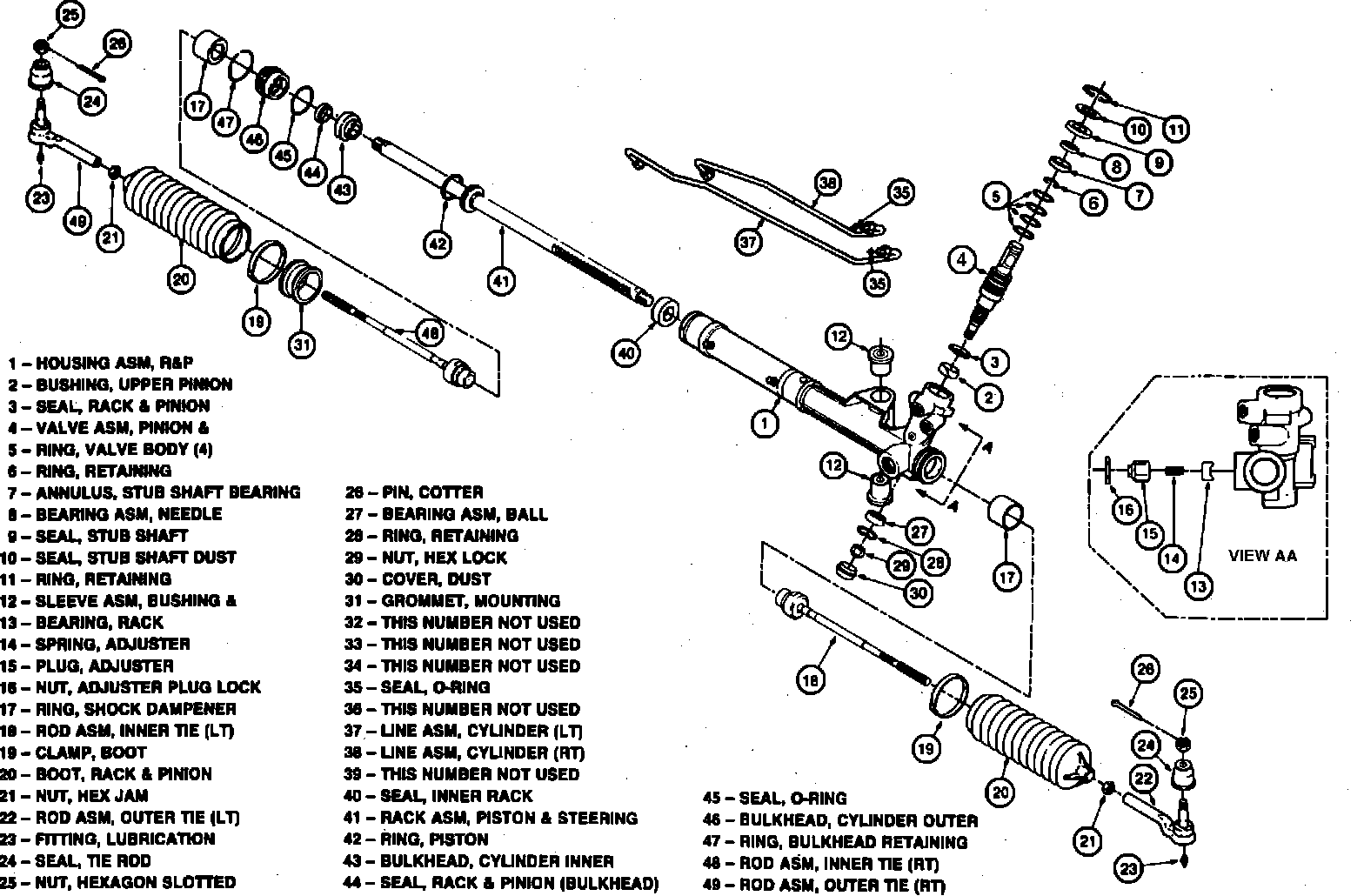

Fig. 25 Exploded View, Power Rack & Pinion Assembly:

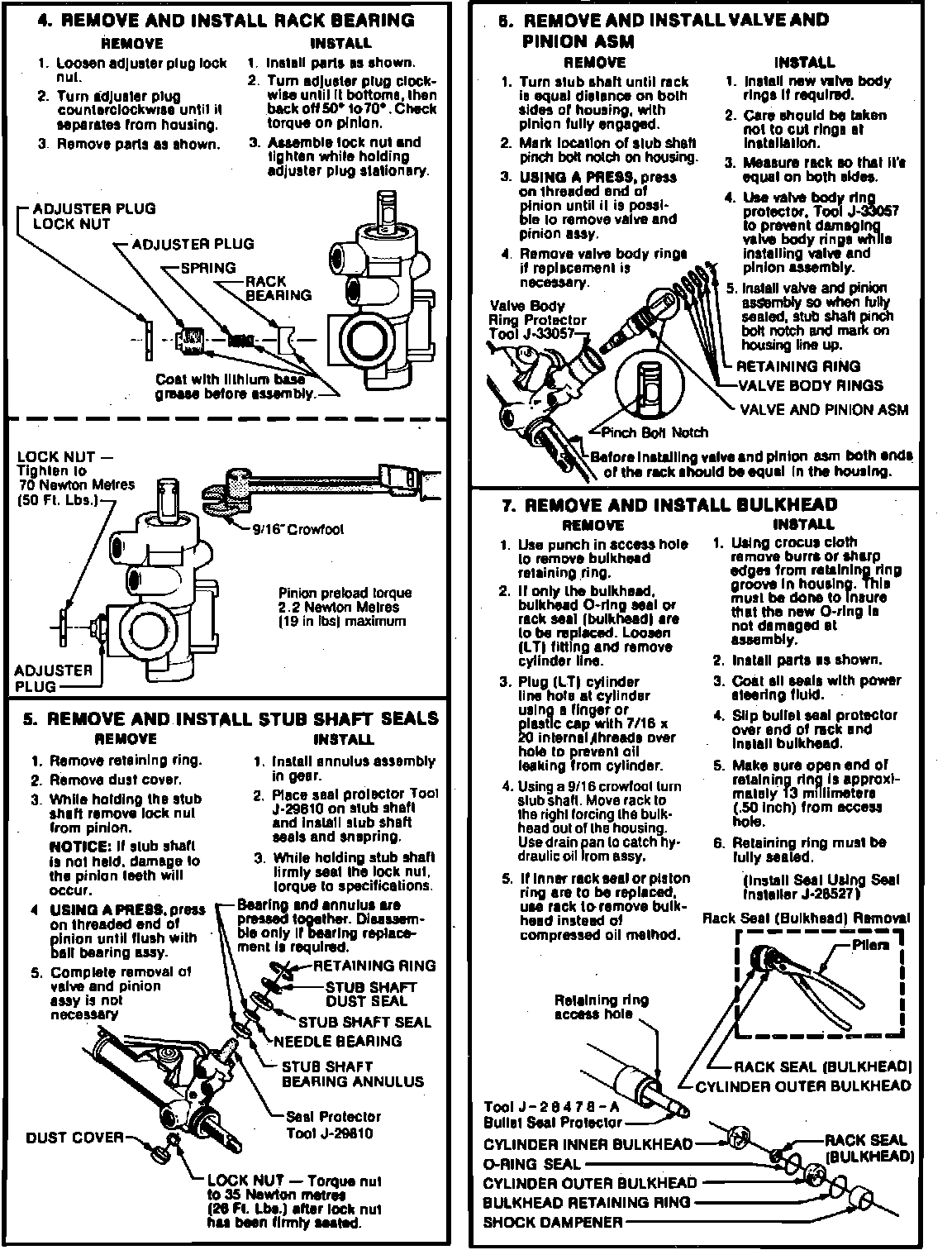

Fig. 26 Service Procedures, Power Rack & Pinion Assembly (Part 1 Of 3):

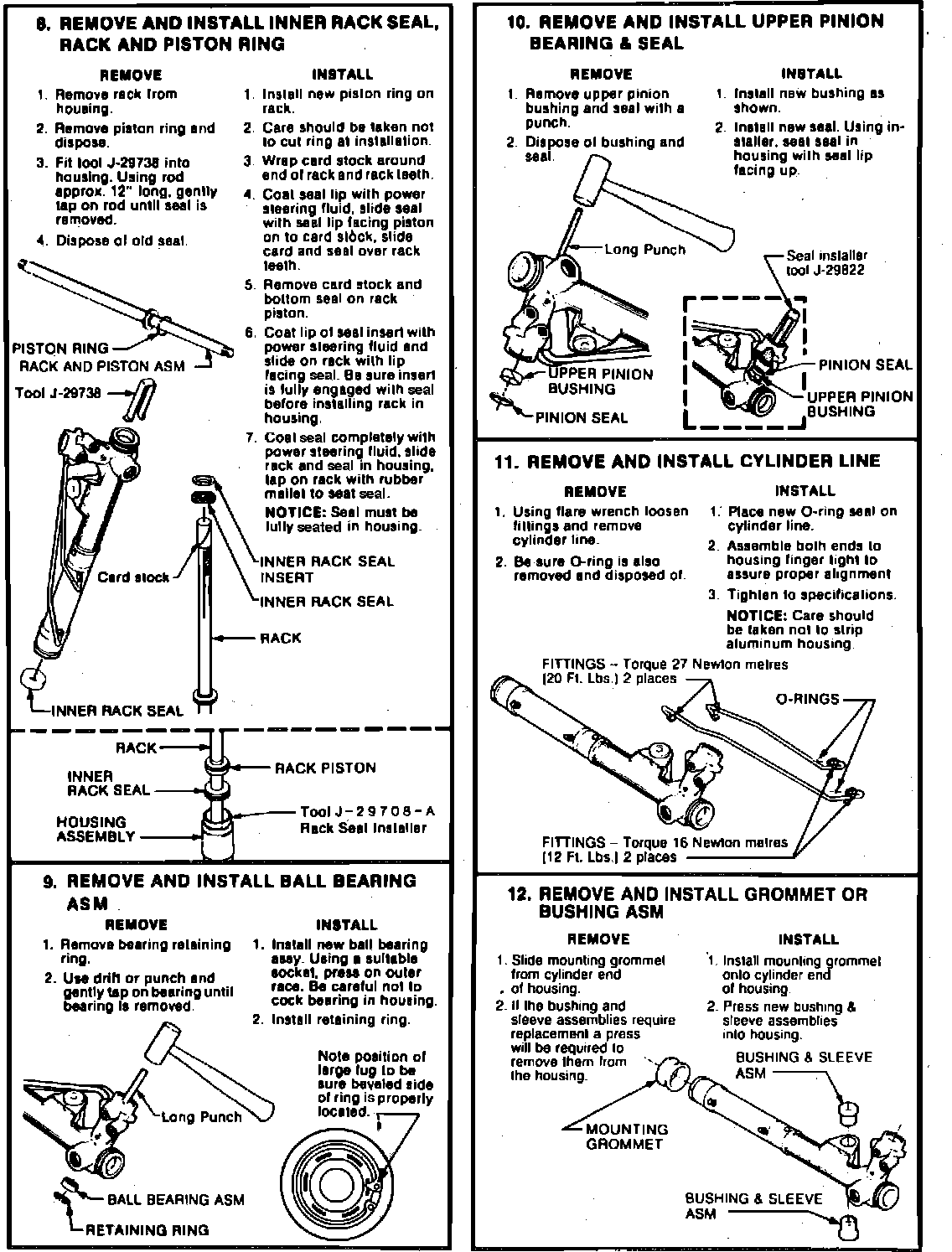

Fig. 26 Service Procedures, Power Rack & Pinion Assembly (Part 2 Of 3):

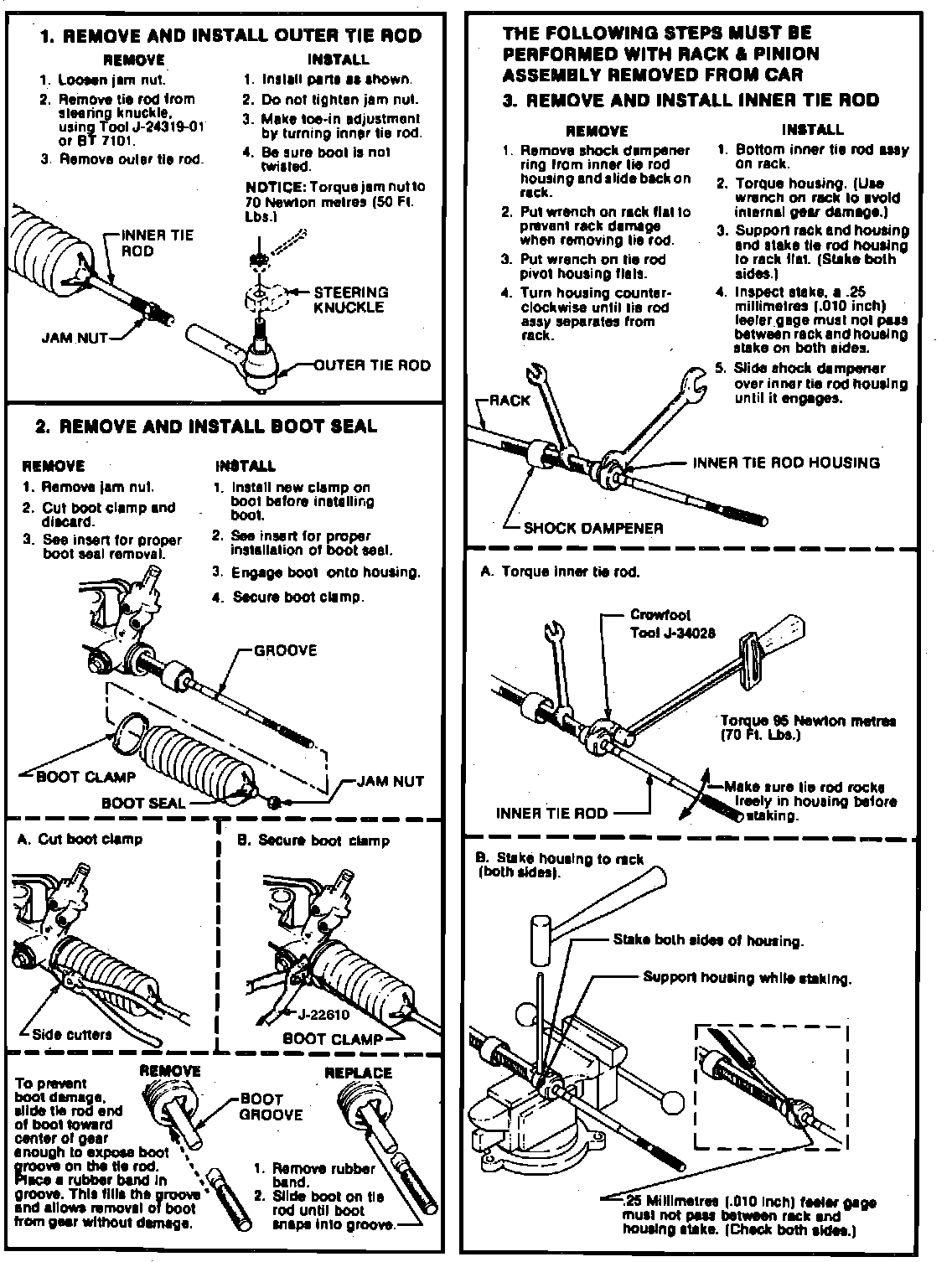

Fig. 26 Service Procedures, Power Rack & Pinion Assembly (Part 3 Of 3):

For service procedures on this power rack and pinion steering gear assembly, refer to Figs. 25 and 26.
