Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Base
Base

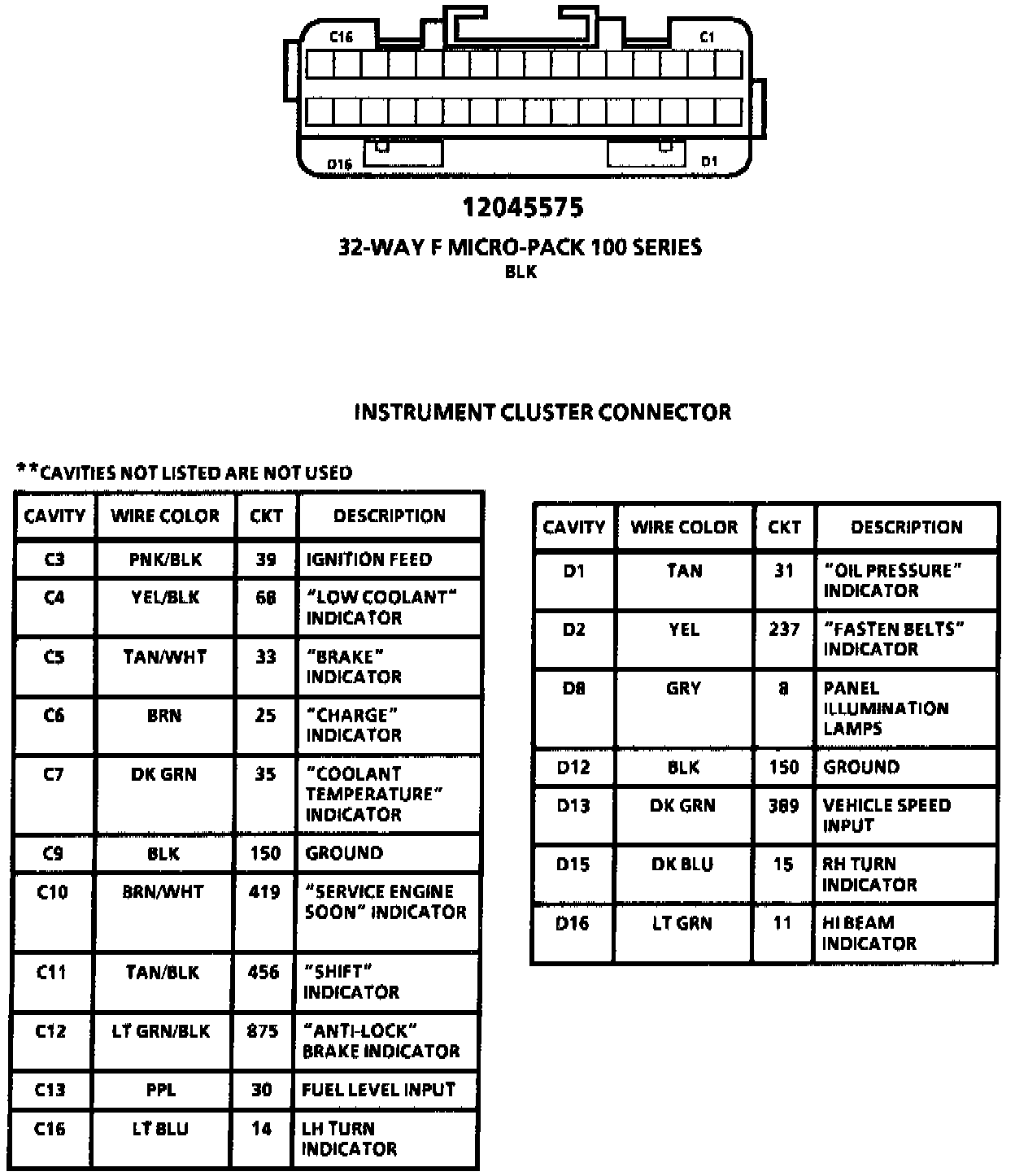

Instrument Cluster Connector: Base:
