Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>

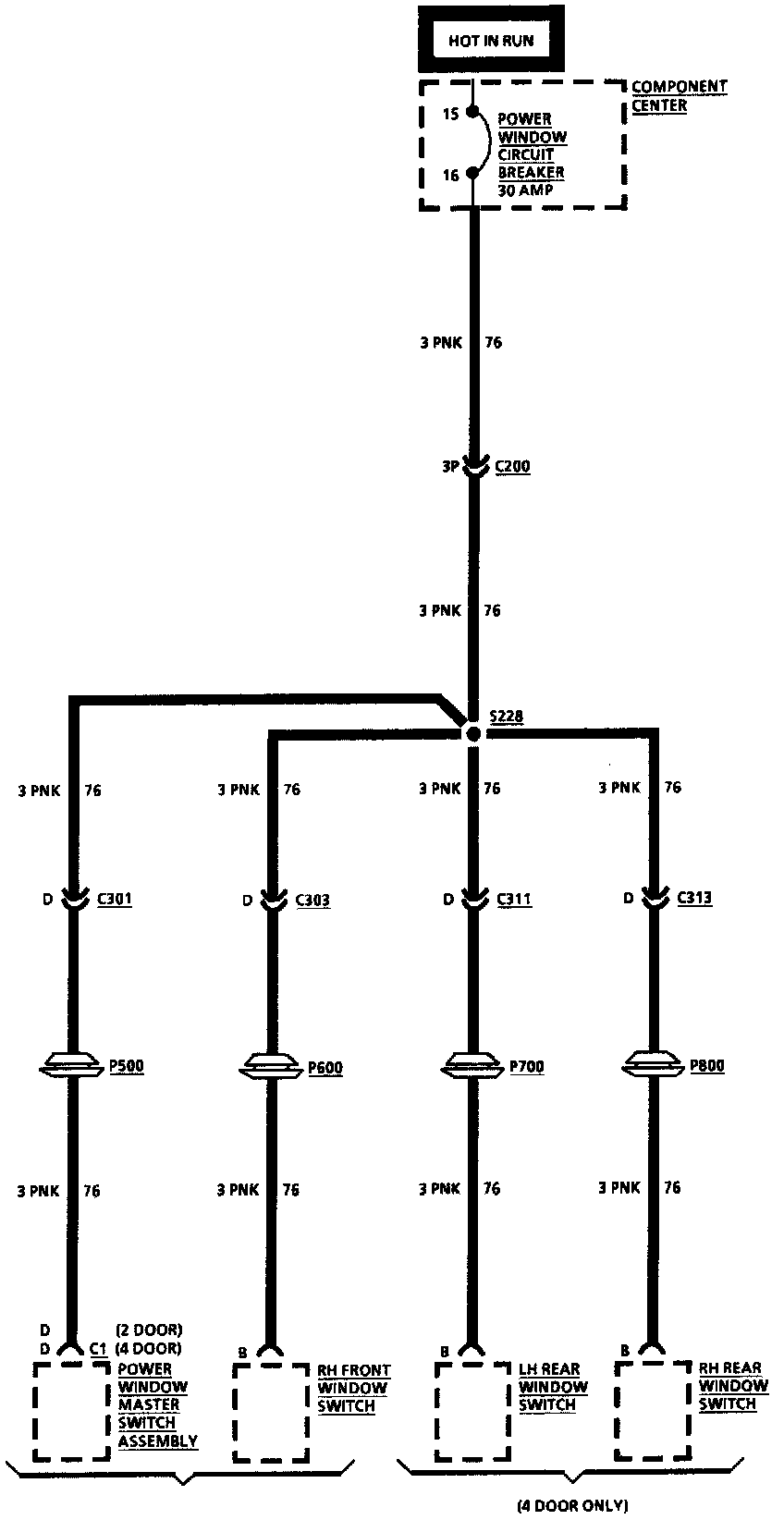

Power Window Circuit Breaker
Power Window Circuit Breaker
Fuse Block Details, Power Window Circuit Breaker:
