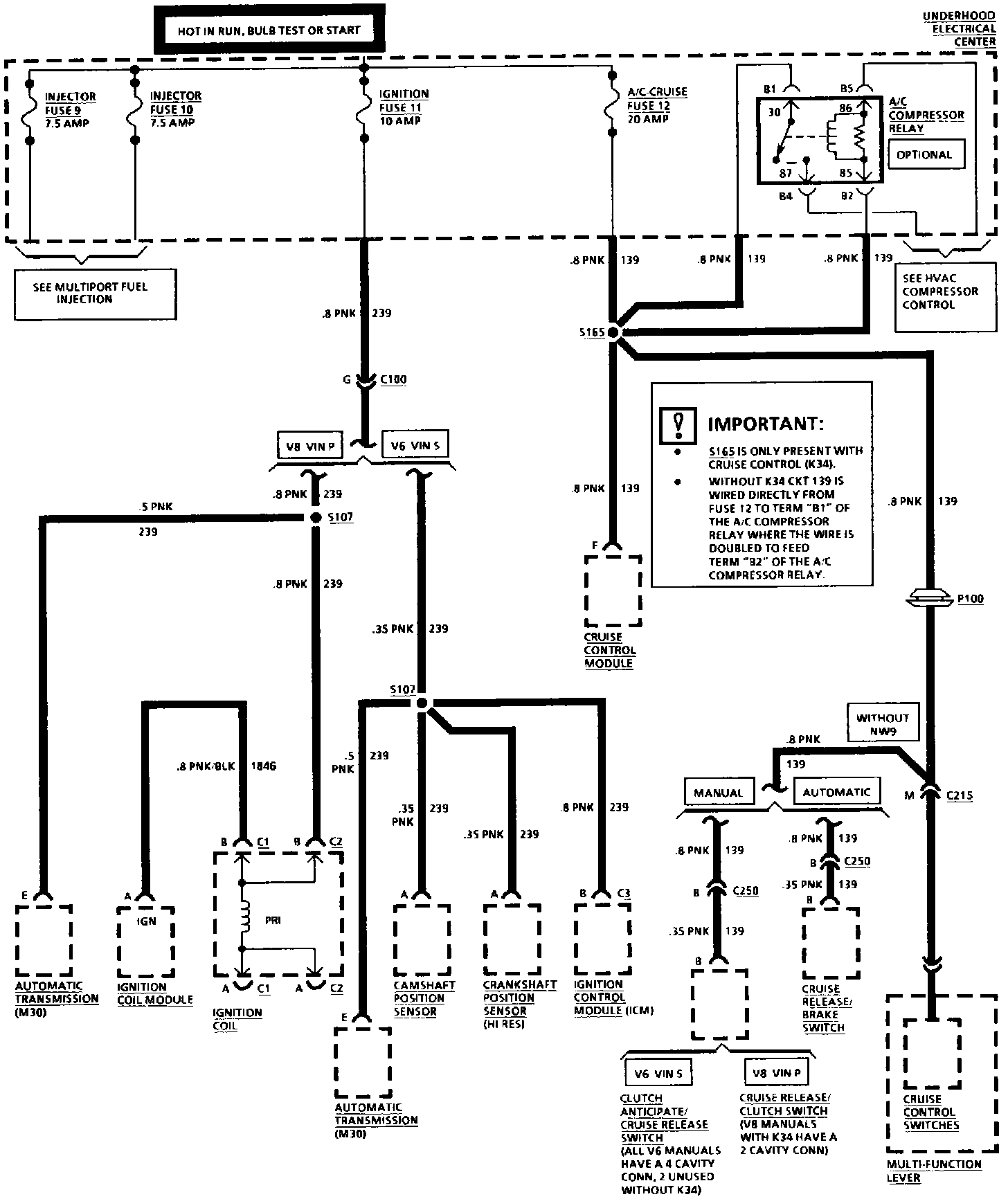

Underhood Fuses 11, 12 and A/C Compressor Relay
Underhood Fuses 11, 12 and A/C Compressor Relay
Underhood Fuses 11, 12 And A/C Compressor Relay:
