EGR Valve: Locations

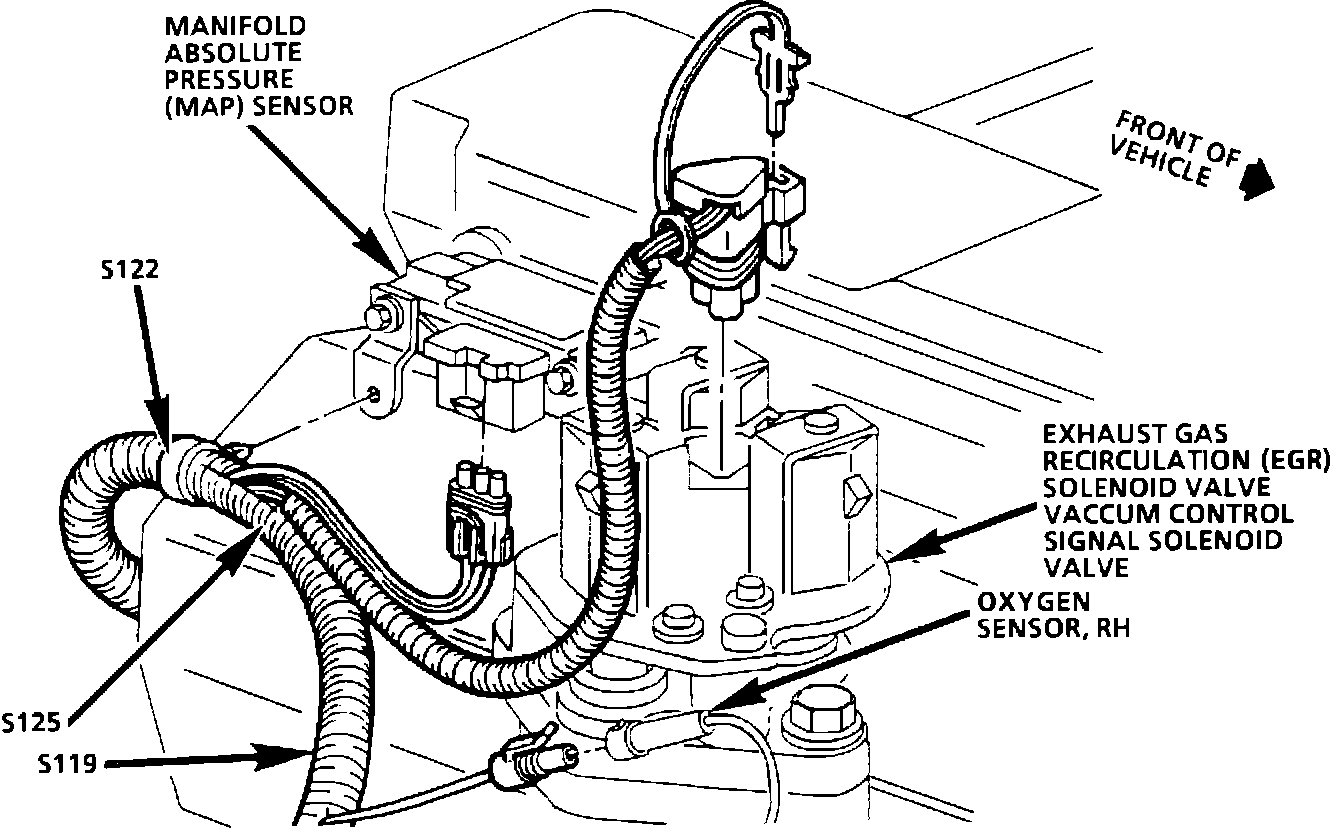

Top Rear RH Side Of Engine:
The EGR valve is mounted on the right exhaust manifold.
