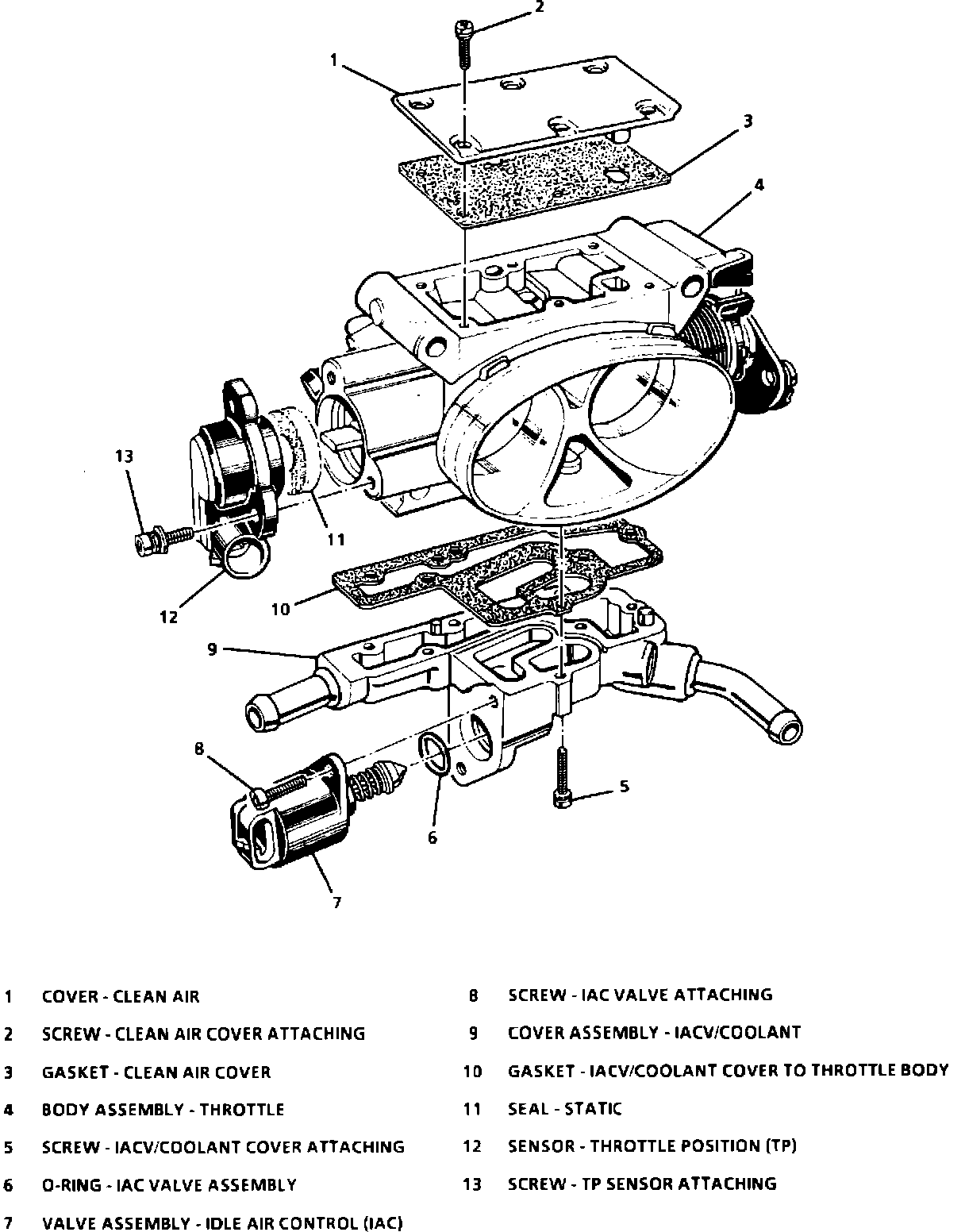

Idle Air Control/Coolant Cover Assembly

Throttle Body Assembly:

Remove or Disconnect:
1. Remove throttle body from intake manifold

Disassemble
1. Remove IAC valve
2. Remove IAC valve/coolant cover assembly screws
3. Remove and discard gasket

Clean and Inspect
1. Clean gasket sealing surface
2. Inspect gasket sealing surface for corrosion or damage that would cause a coolant leak. Replace cover assembly or throttle body if necessary.

Assemble
1. Install new gasket and cover assembly
2. Tighten cover screws
Torque Value: 3.2 N-m (28 lb.in.)
3. If installing a new IAC valve, measure distance between pintle and mounting surface. If greater than 28mm, use finger pressure to slowly retract the pintle.

Install or Connect:
1. Install and tighten IAC valve attaching screws
Torque Value: 3 N-m (27 lb.in.)
2. Install throttle body to intake manifold
3. Reset IAC valve pintle position. Refer to ADJUSTMENT PROCEDURES.
