Component Locations

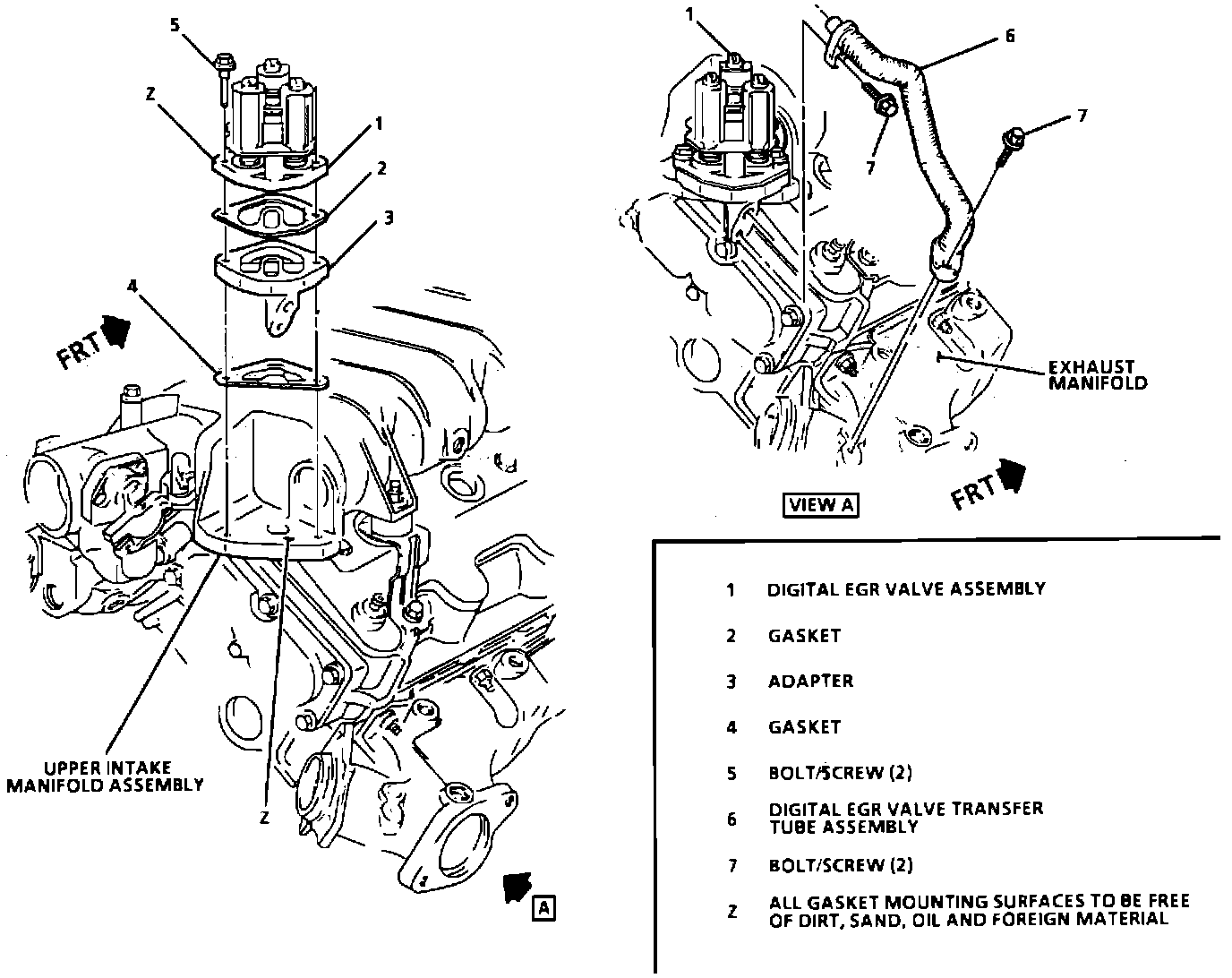

EGR Valve Installation:






Mounted on the intake upper manifold, near the throttle body.
