Expansion Block/Orifice Tube: Locations

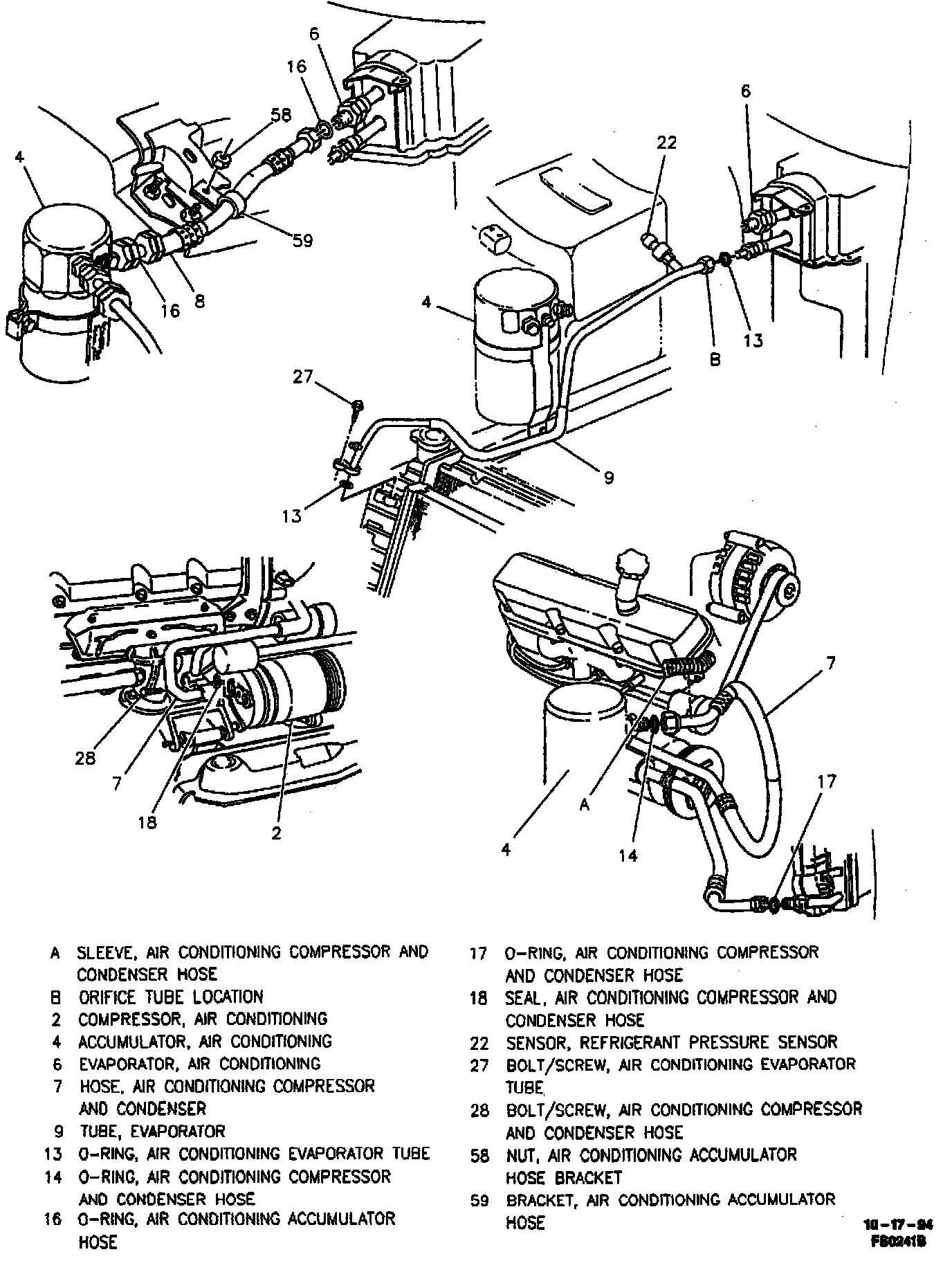

Refrigerant Lines & Hoses:

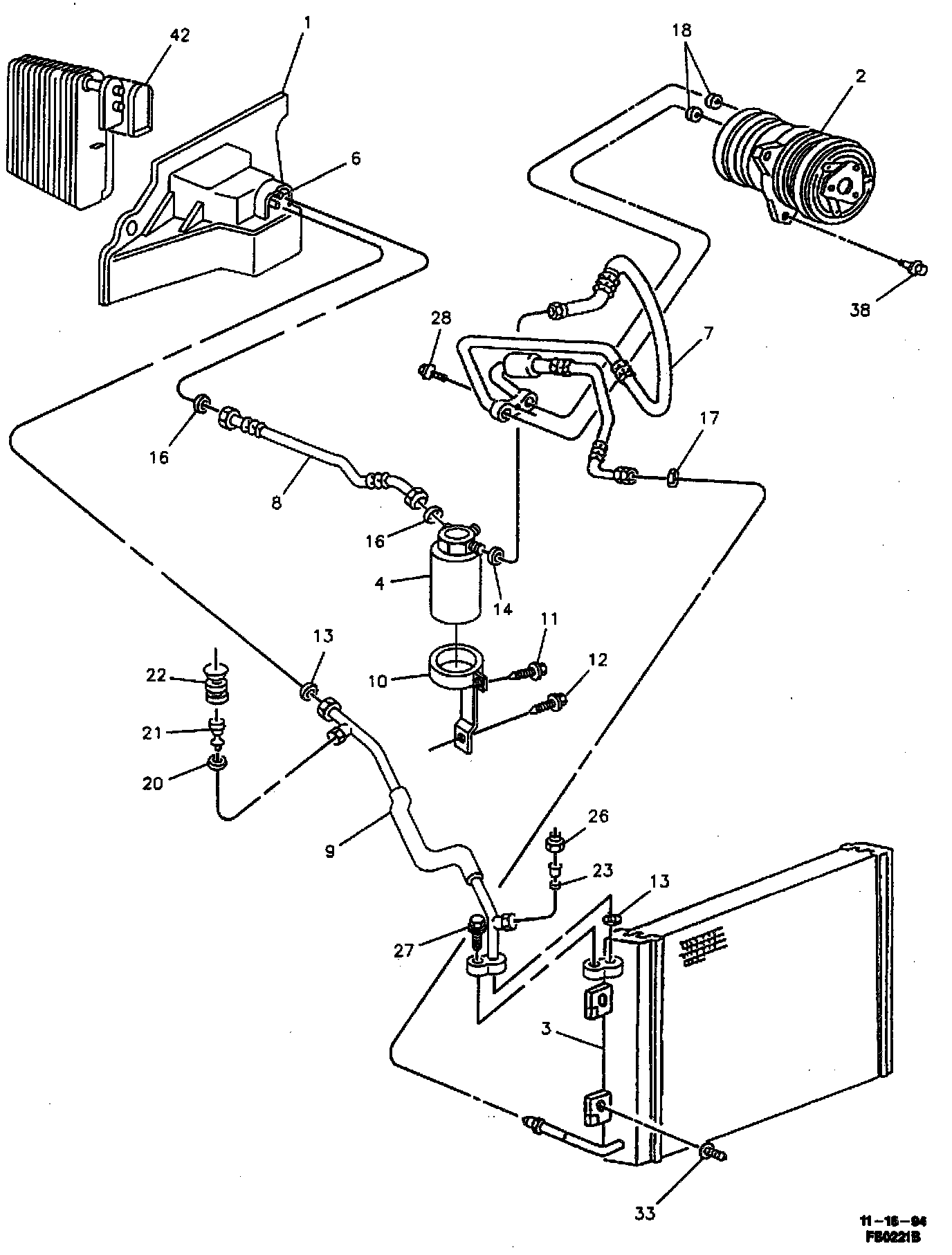

Refrigeration System Components (1 Of 2):

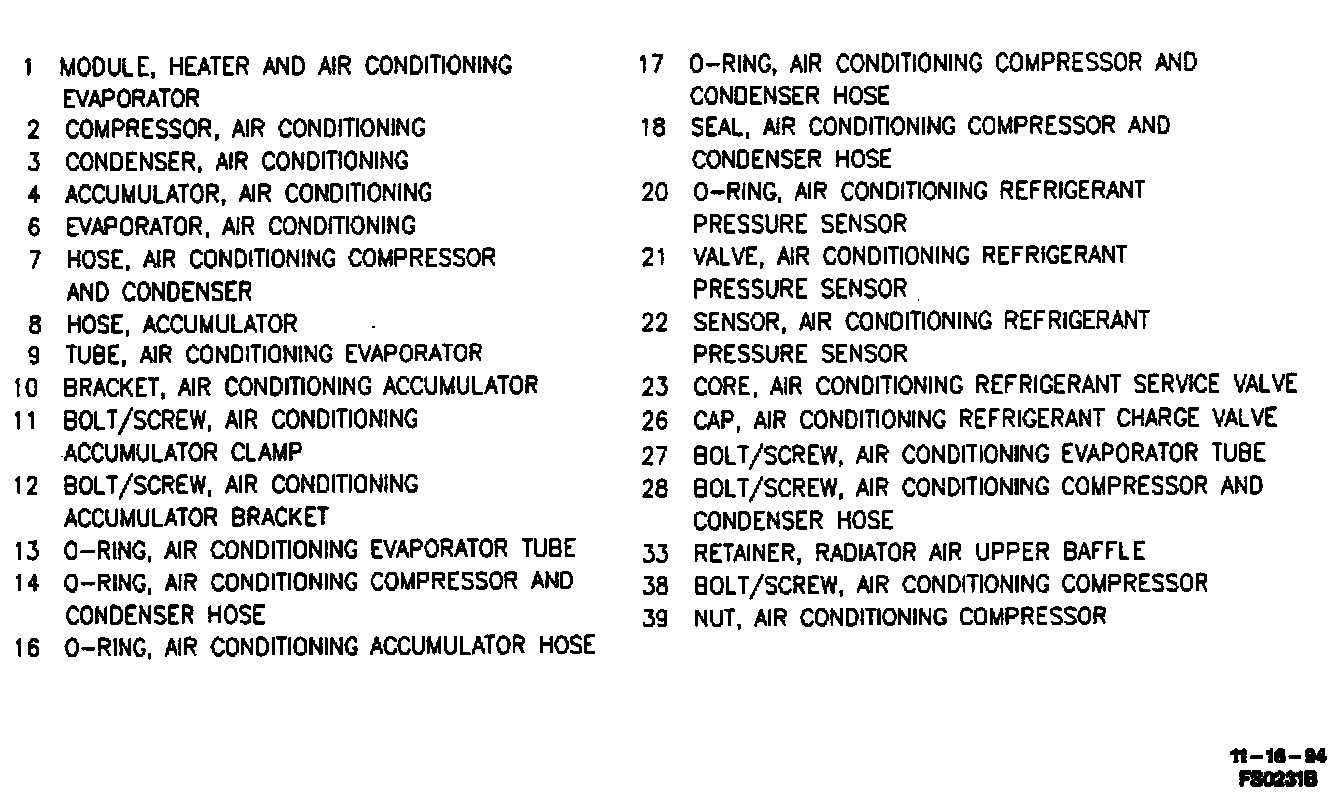

Refrigeration System Components - Key (2 Of 2):

The Expansion (Orifice) Tube is located just forward of the evaporator fitting, between the condenser outlet and the evaporator inlet.
