Service Manual - Revised Diagnostic Charts

File In Section: 6E - Engine Fuel & Emission

Bulletin No.: 51-65-50

Date: September, 1995

SERVICE MANUAL UPDATE

Subject:
Section 6E3 - Driveability and Emissions - Revised Diagnostic Charts

Models:
1995 Chevrolet Camaro
1995 Pontiac Firebird
with 3.8L Engine (VIN K - RPO L36)

















This bulletin includes corrections to the specified diagnostic charts in the 1995 Camaro/Firebird Service Manual. Please make the following corrections to the Service Manual:

^ Chart A-3, Page 6E3-A-50: The "No" column for Step 4 should read "Go to Step 23."

^ Chart A-5, Page 6E3-A-57: The "Yes" column for Step 12 should read "Go to Step 14." The "No" column for Step 12 should read "Go to Step 13."

^ DTC P0107, Page 6E3-A-76: The "Yes" column for Step 3 should read "Go to Step 4." The "Yes" column for Step 5 should read "Go to Step 6."

^ DTC P0507, Page 6E3-A-1 84: The incorrect wiring diagram is shown. The correct wiring diagram can be found on Page 6E3-A-182.

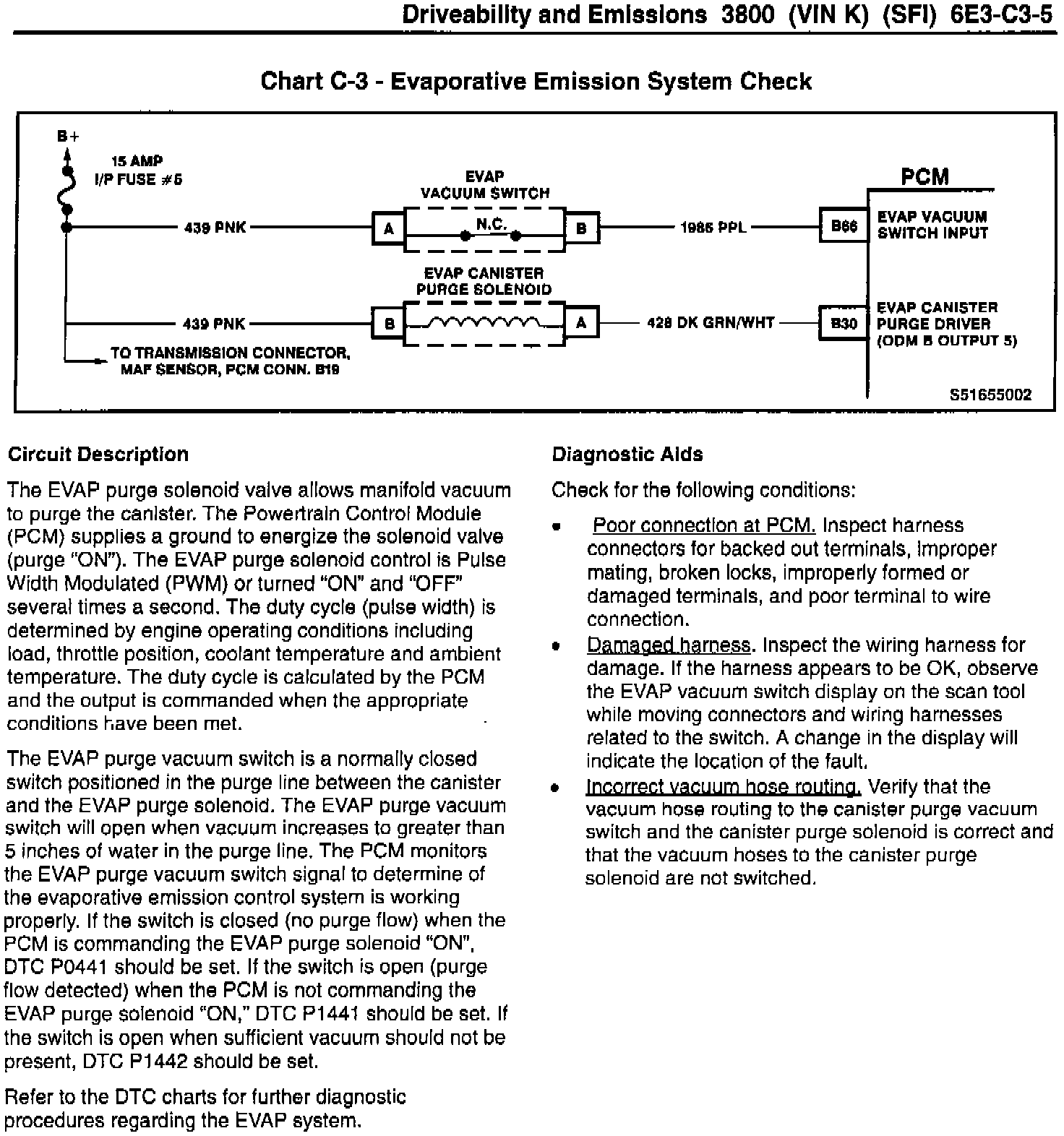

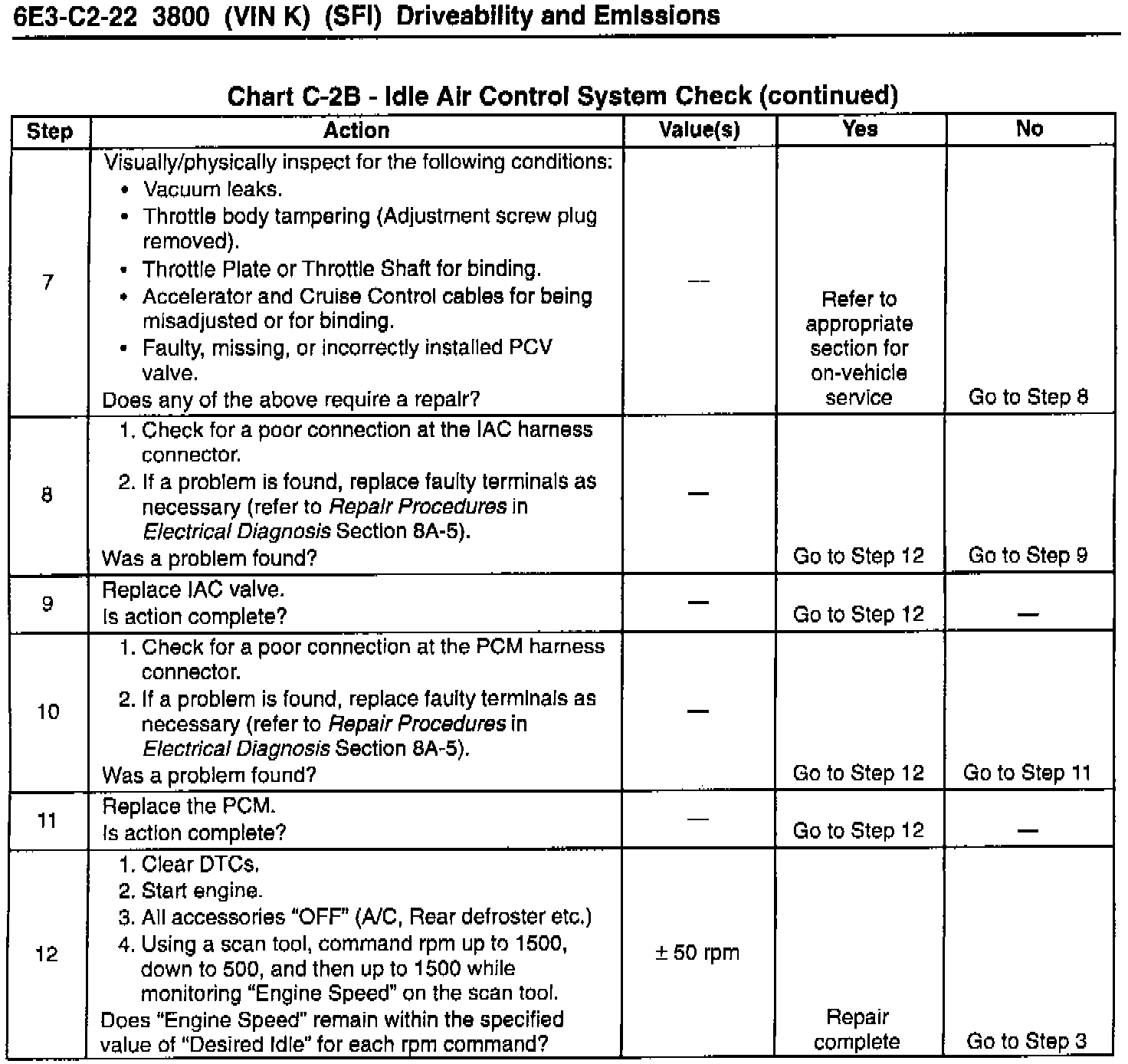

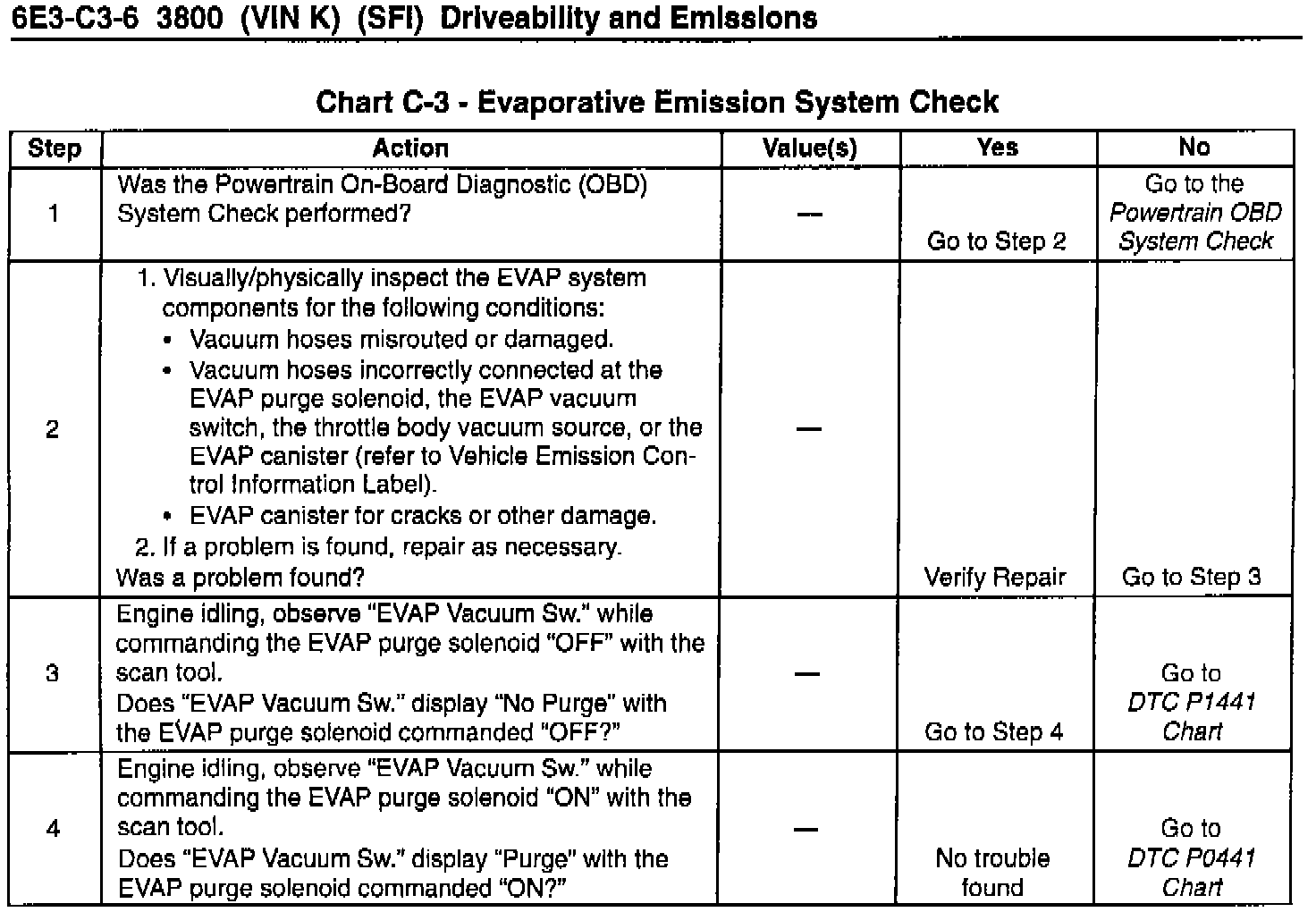

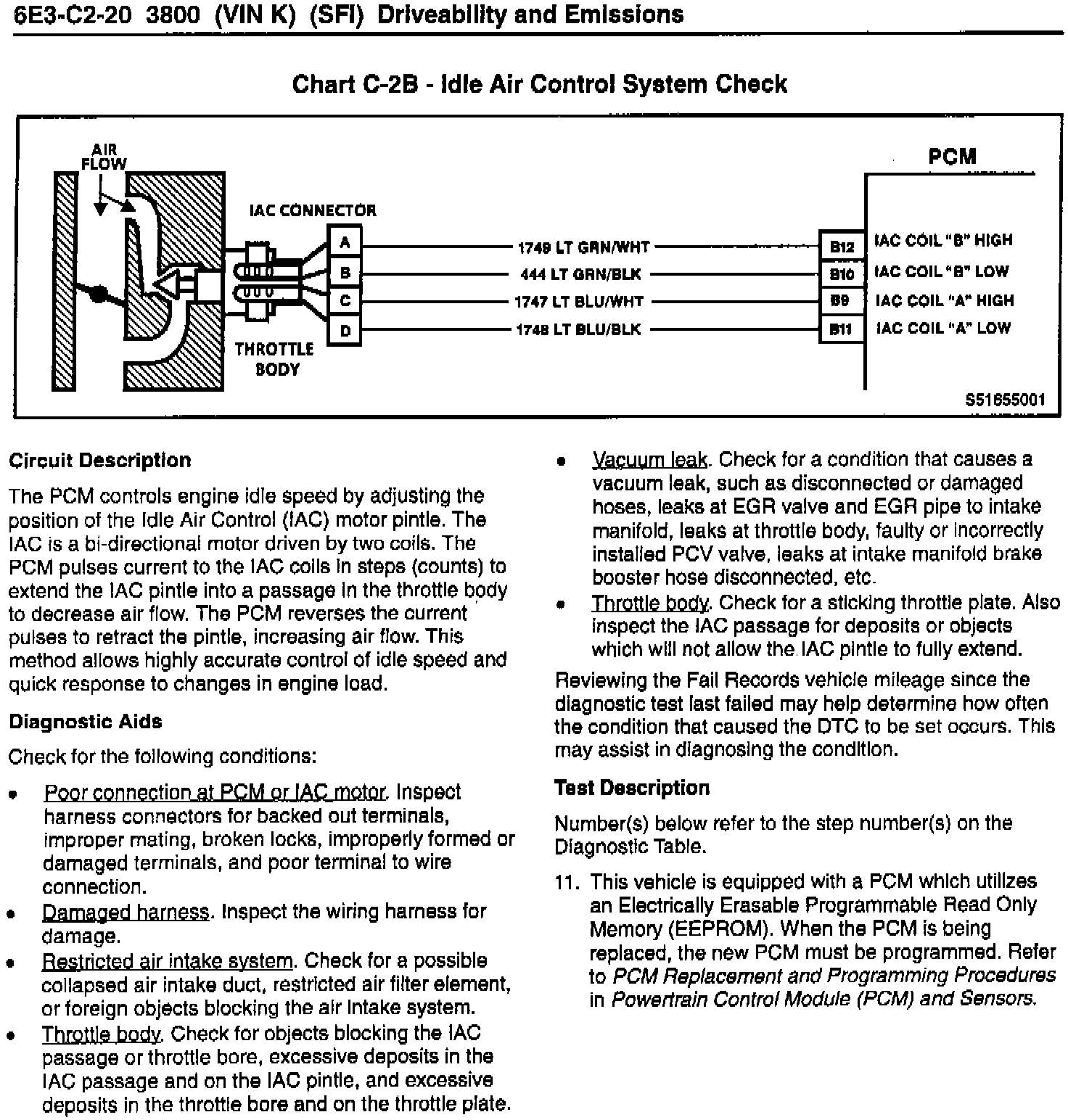

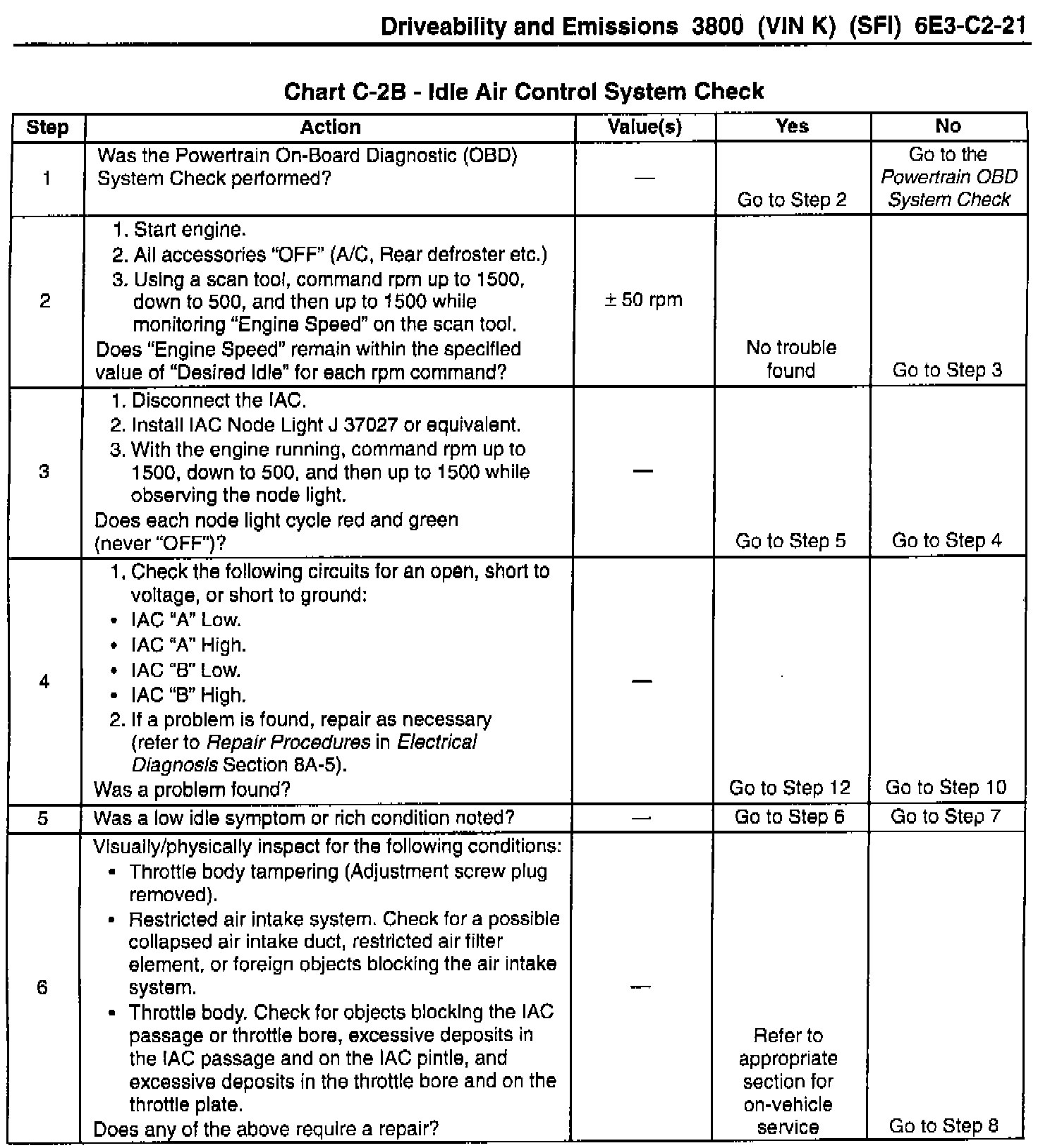

^ Several of the diagnostic charts in the Service Manual reference "Idle Air Control (IAC) Valve Check" Chart C-2B and "Evaporative Emissions Control (EVAP) Canister Valve Check" Chart C-3. These charts were omitted from the 1995 Camaro/Firebird Service Manual, but have been included with this bulletin.
