Evaporative Emission Control Canister: Service and Repair

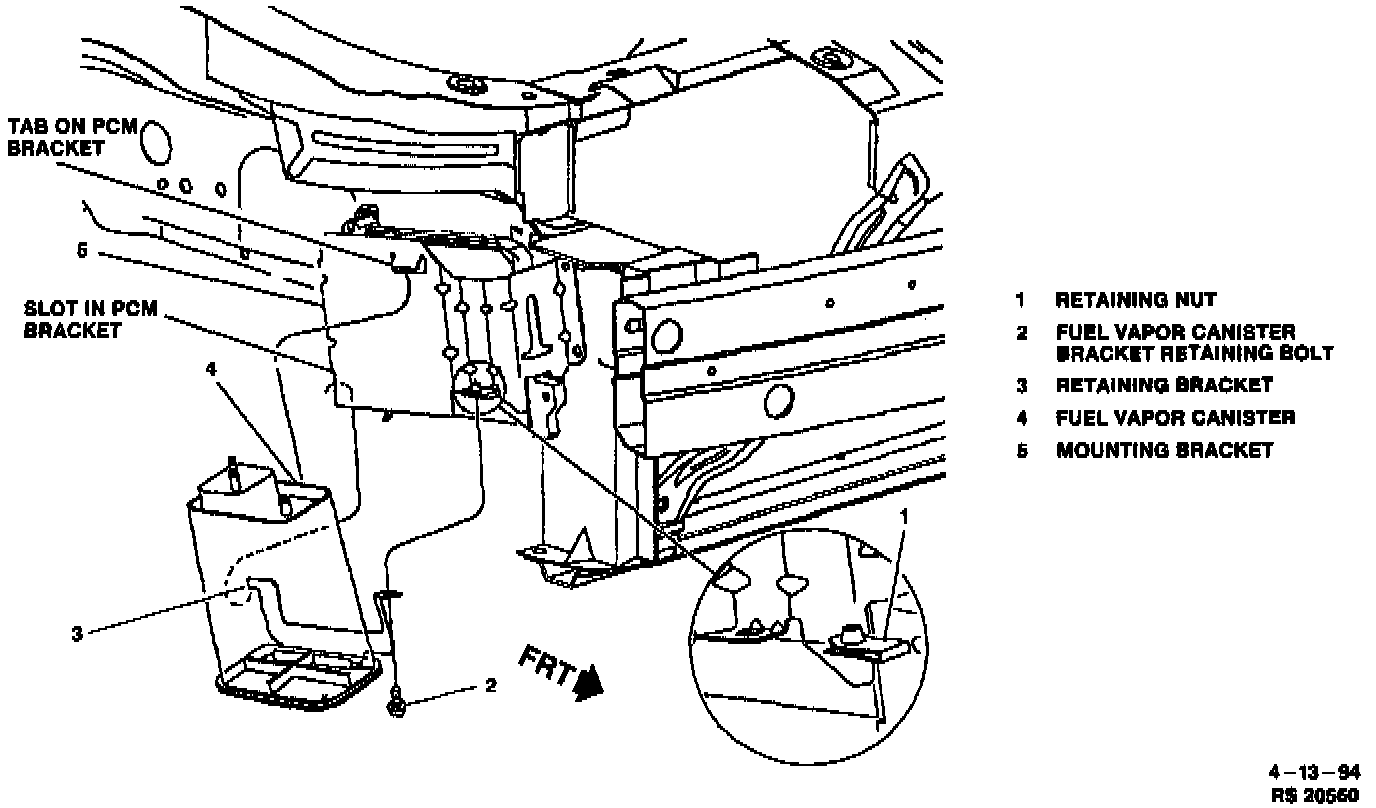

EVAP Canister Removal:

REMOVE OR DISCONNECT
1. Splash shield
2. Evaporative Emission (EVAP) canister bracket attaching bolt.
3. EVAP canister bracket.
4. EVAP canister hoses.
5. EVAP canister.

INSTALL OR CONNECT
1. EVAP canister hoses.
2. EVAP canister bracket to canister.
3. EVAP canister attaching bolt.

Tighten
Canister attaching bolt to 8 - 12 Nm (6 - 9 lb. ft.).

4. Splash shield.
