Automatic Transmission - Diagnostic Codes Update

File In Section: 7 - Transmission

Bulletin No: 57-71-23

Date: October, 1995

SERVICE MANUAL UPDATE

Subject:
Section 7A-14A - Automatic Transmission - Diagnostic Trouble Codes (DTC) Update

Models:
1996 Chevrolet Camaro
1996 Pontiac Firebird with HYDRA-MATIC 4L60-E Transmission (RPO M30) and 3.8L Engine (VIN K - RPO L36)

Included are the new updated pages of the 1996
Service Manual Section 7A-14A.

� �;:

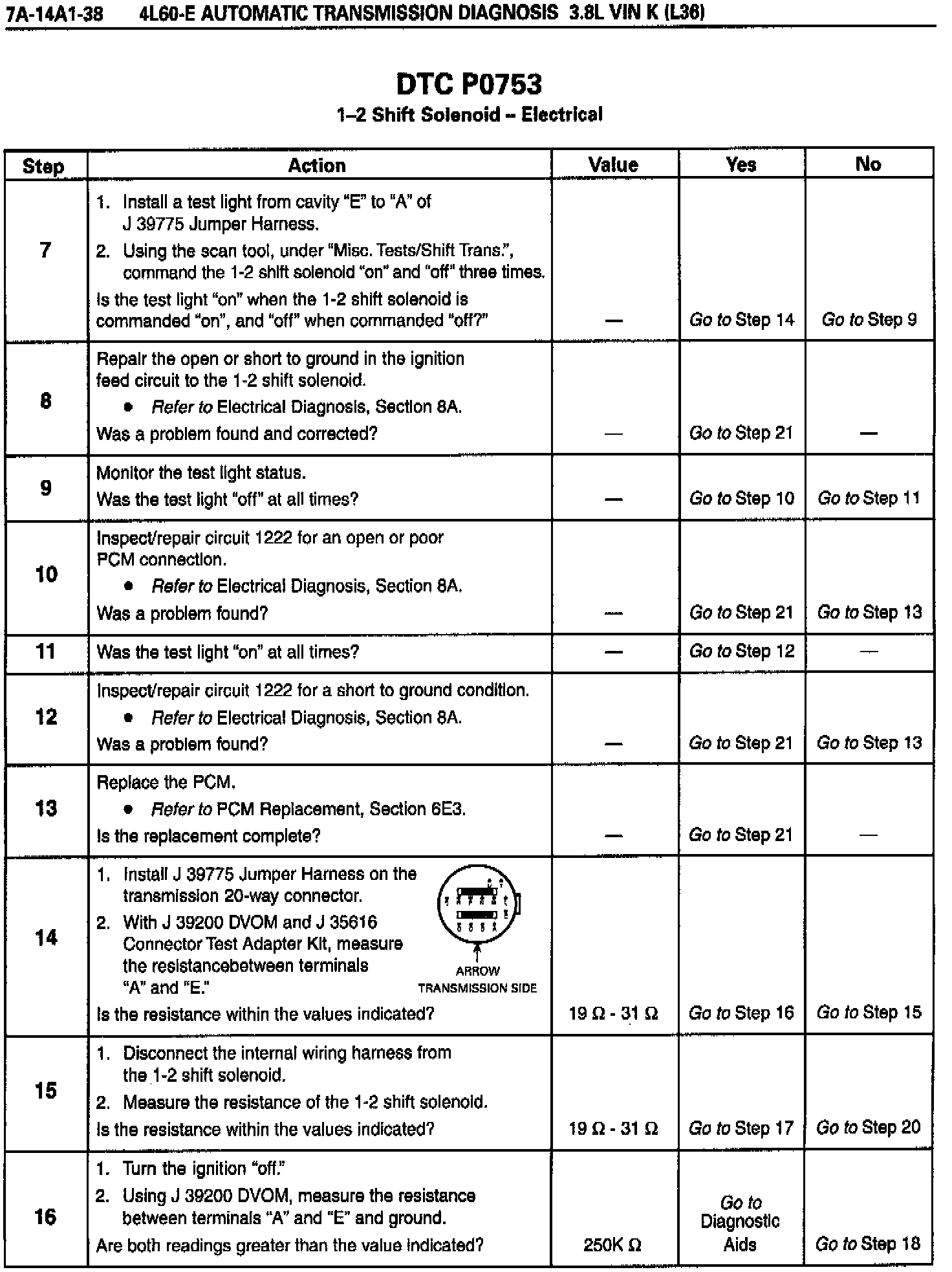

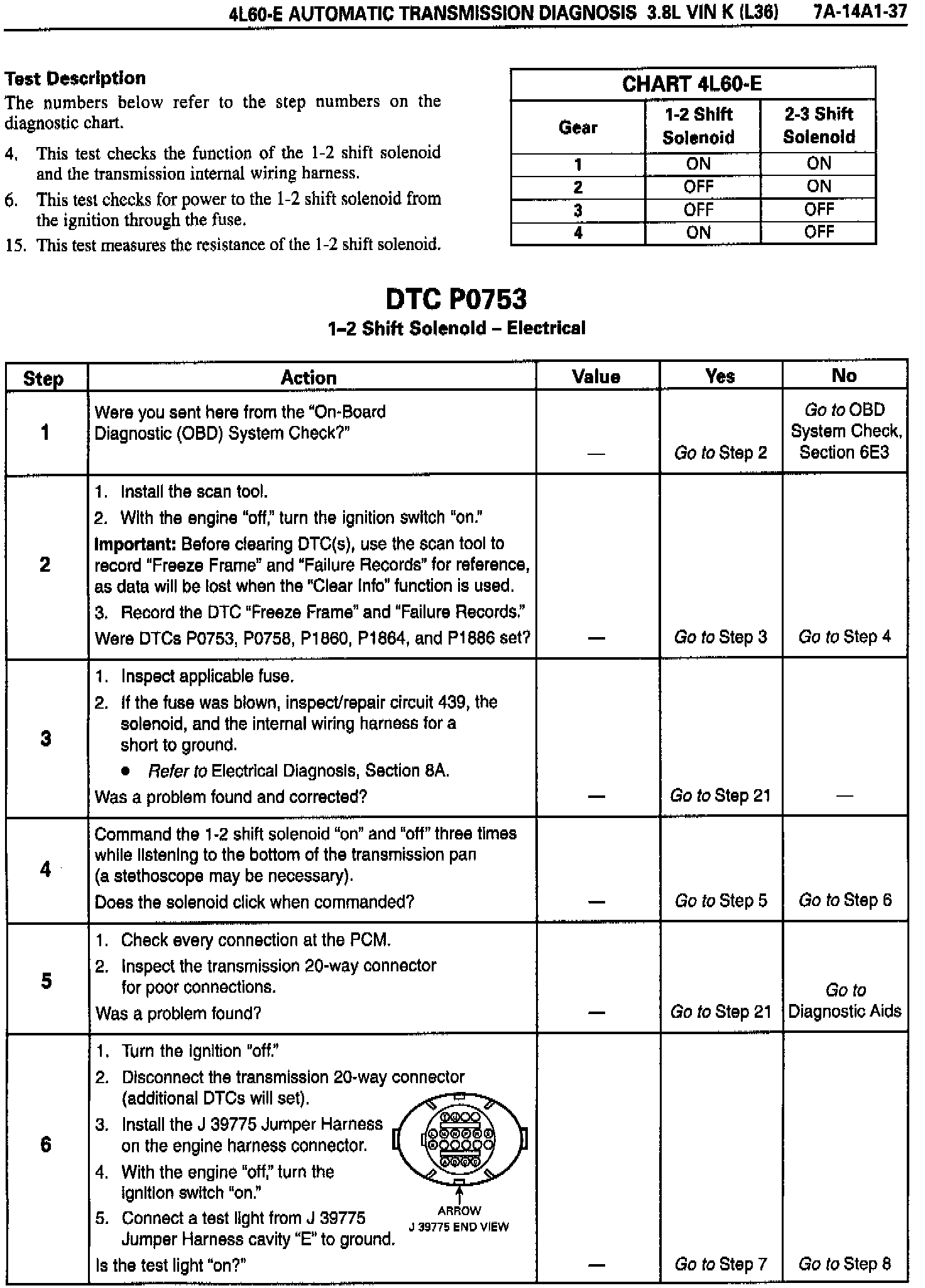

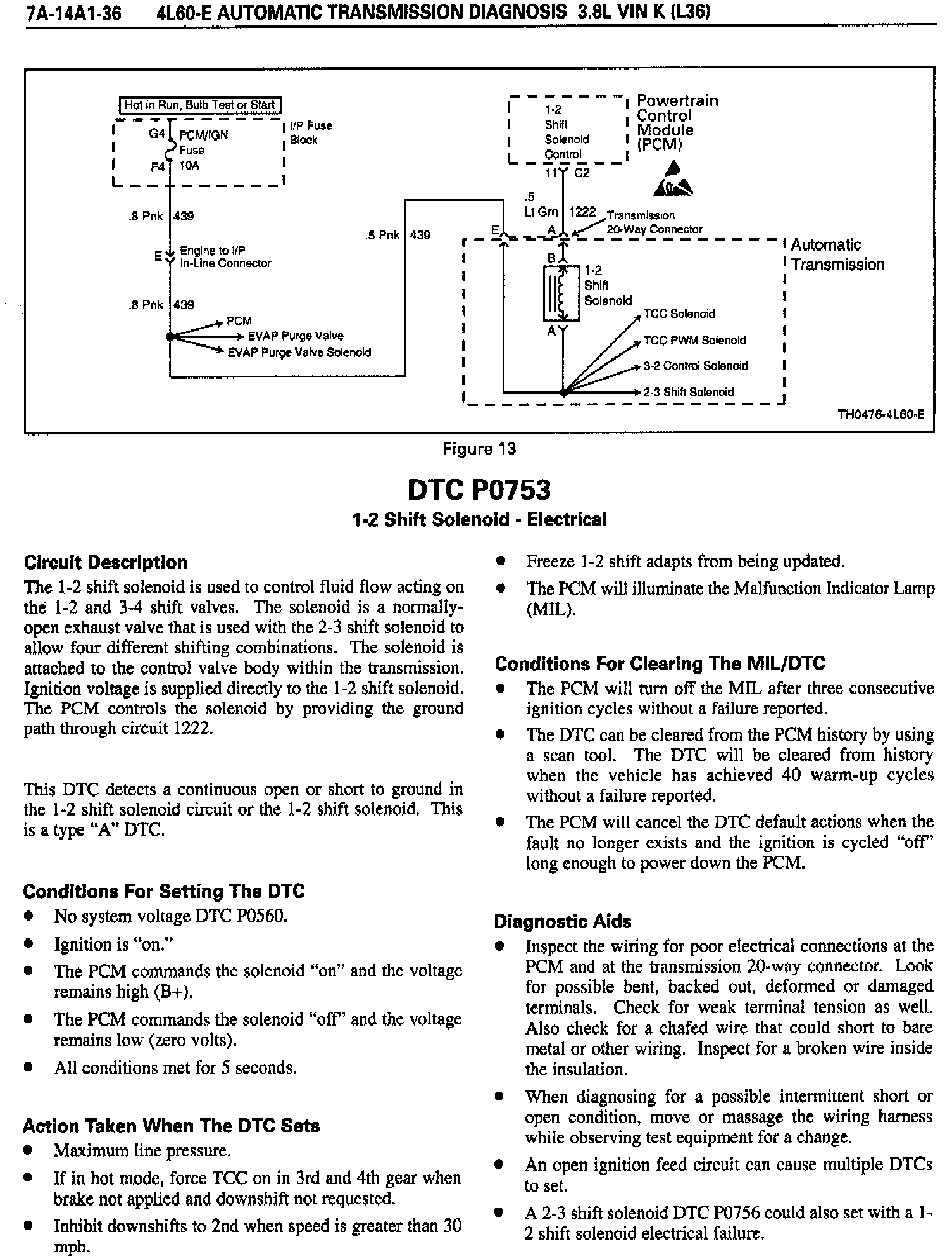

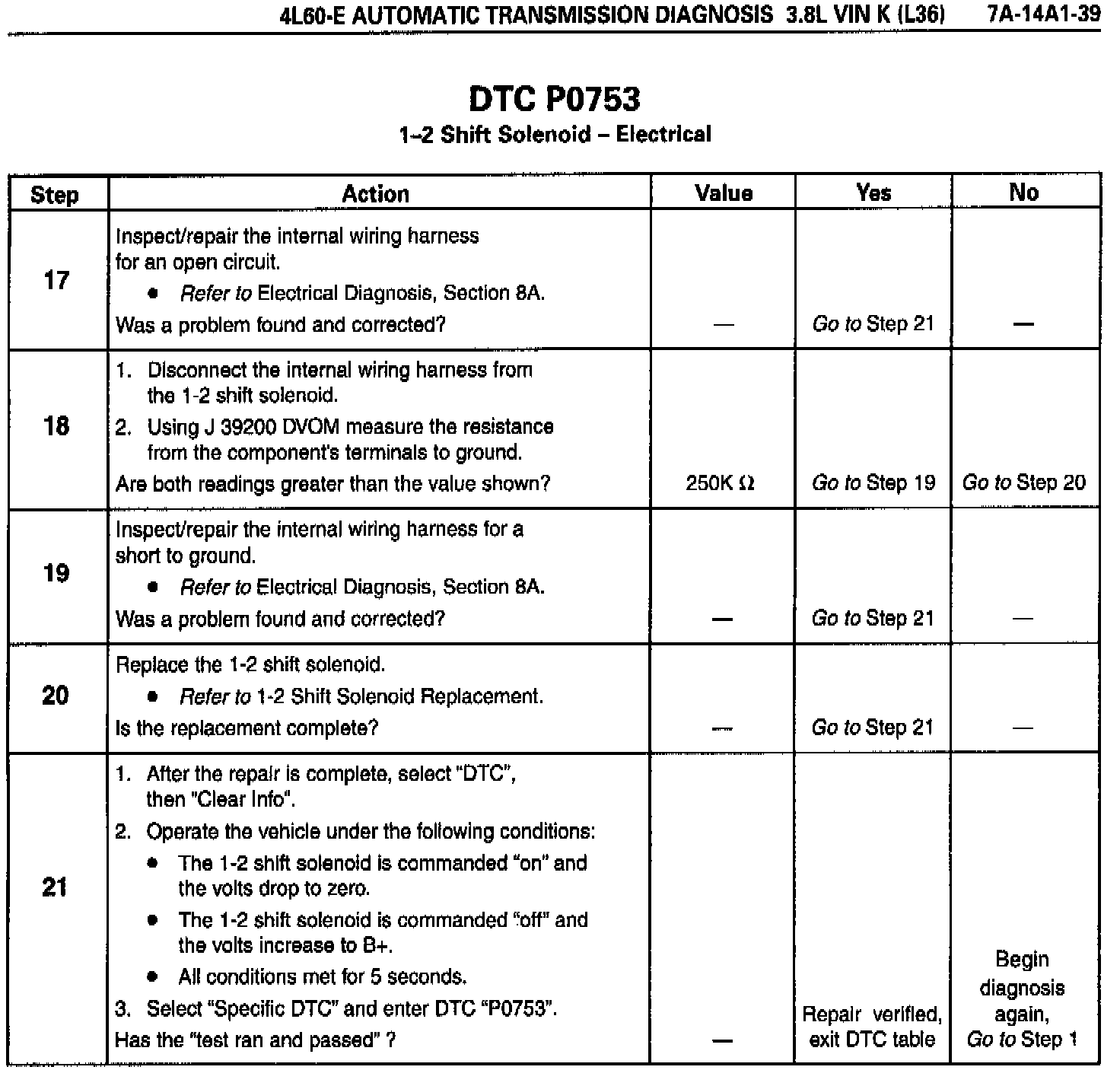

Manual Pages 7A-14A1-36 to 7A-14A1-39

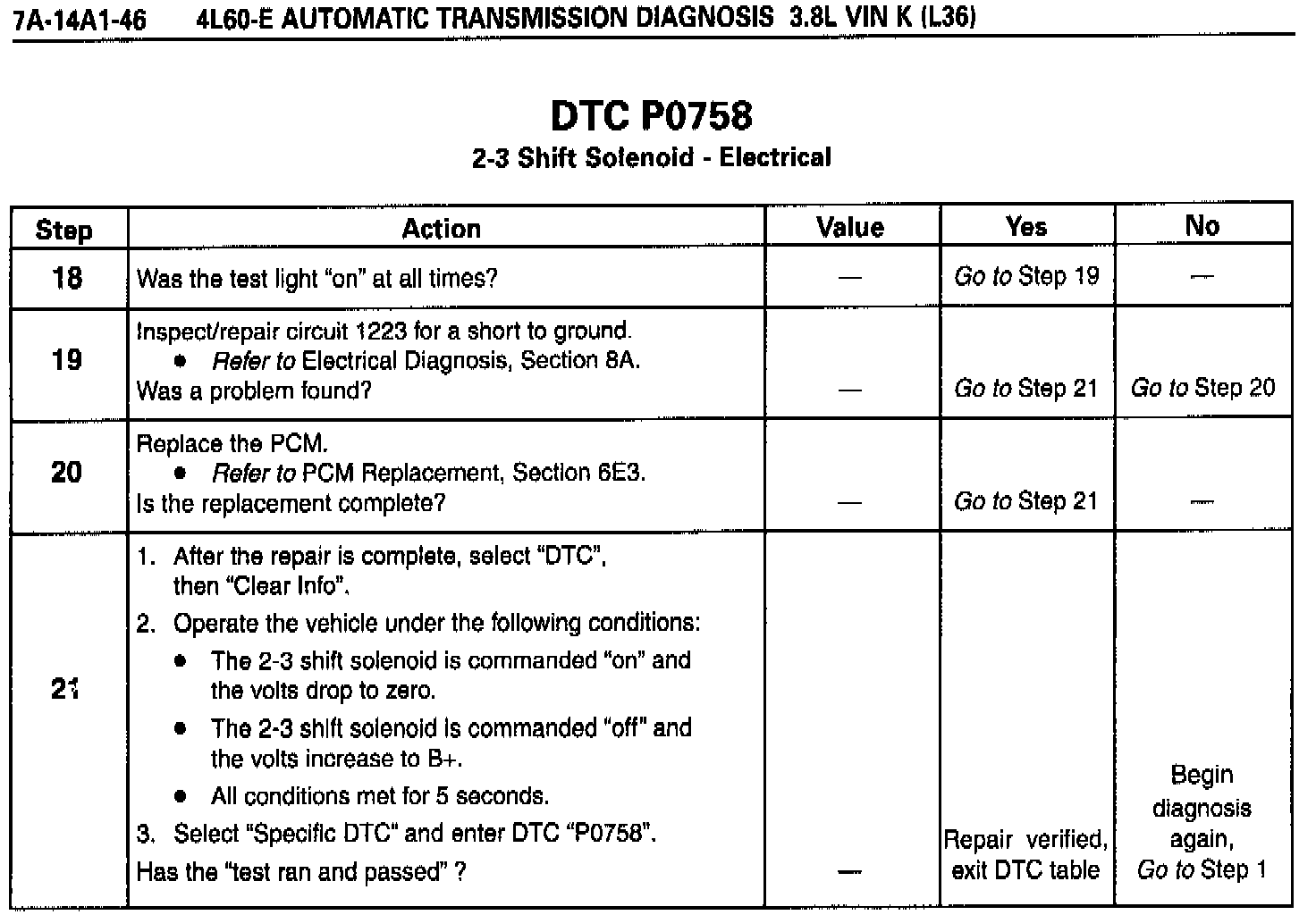

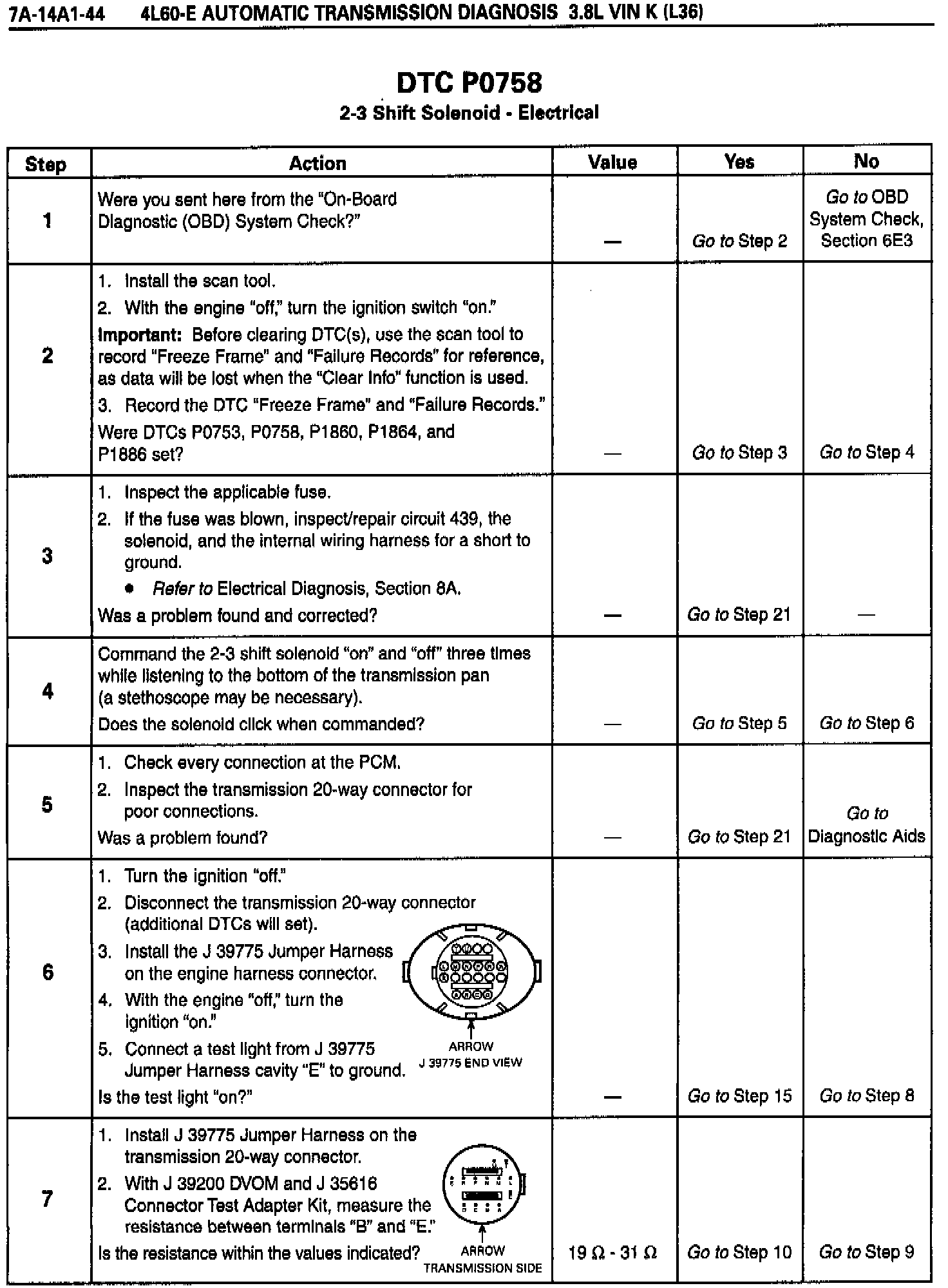

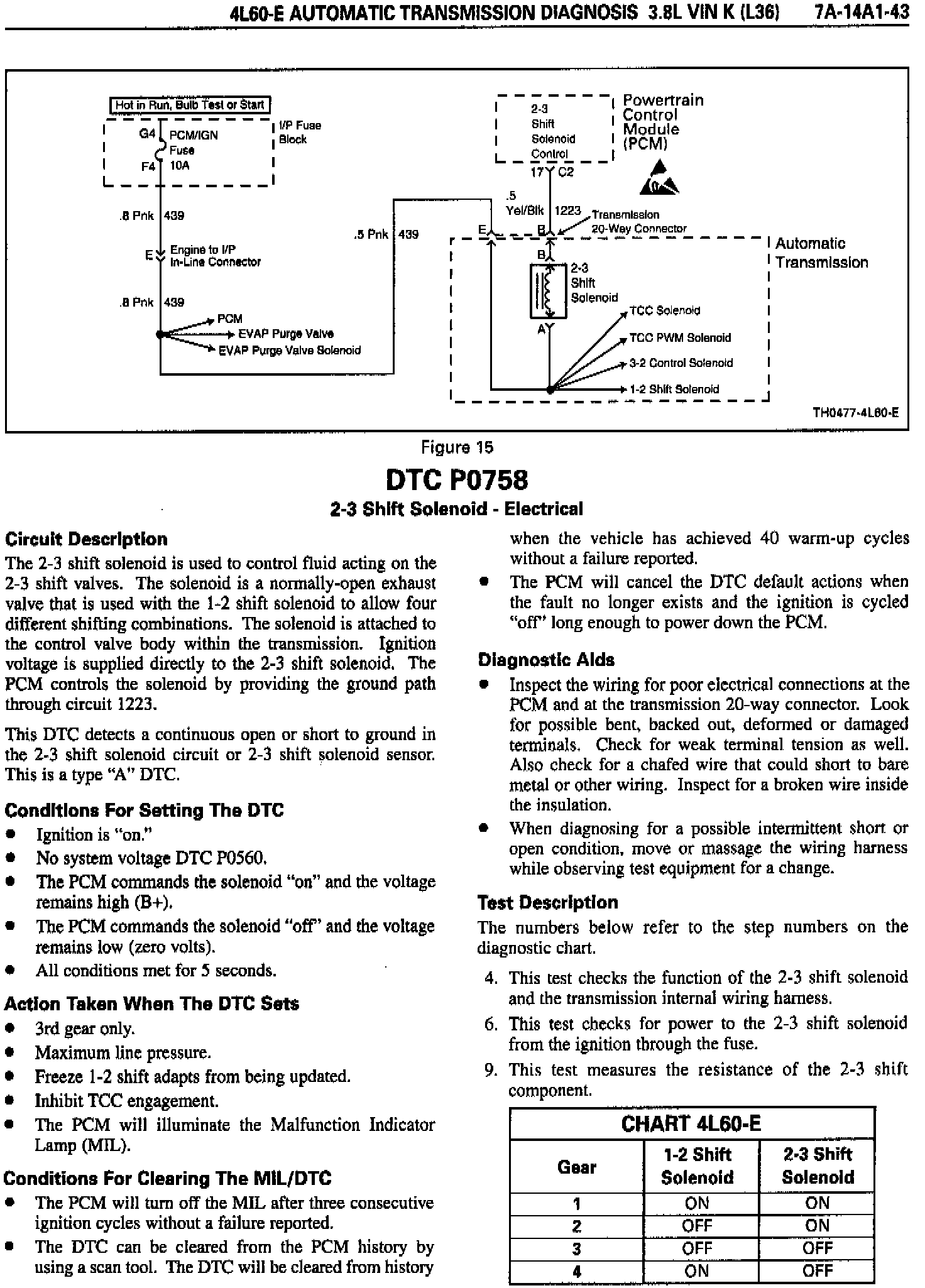

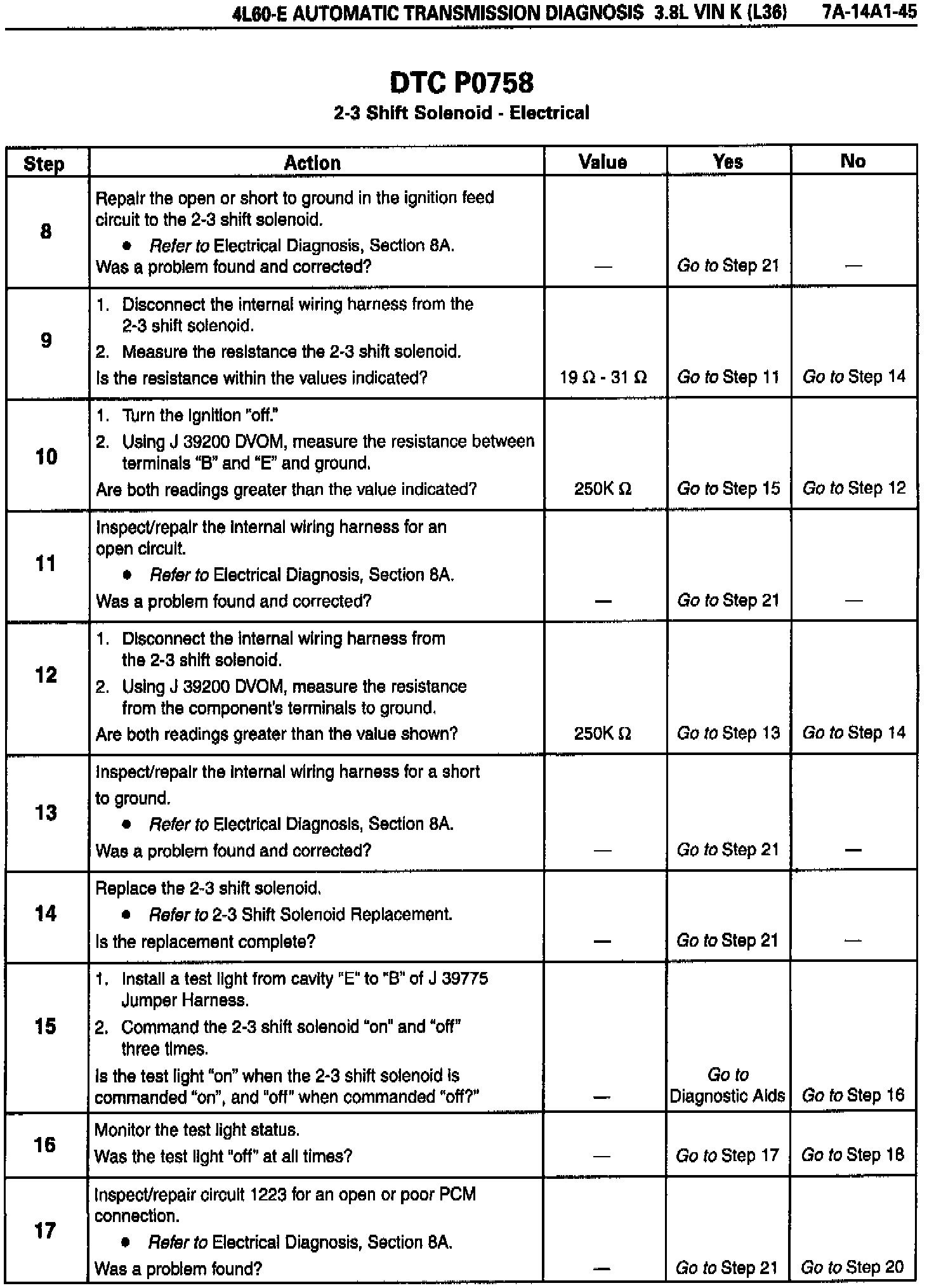

Manual Pages 7A-14A1-43 to 7A-14A1-46

�#�;:

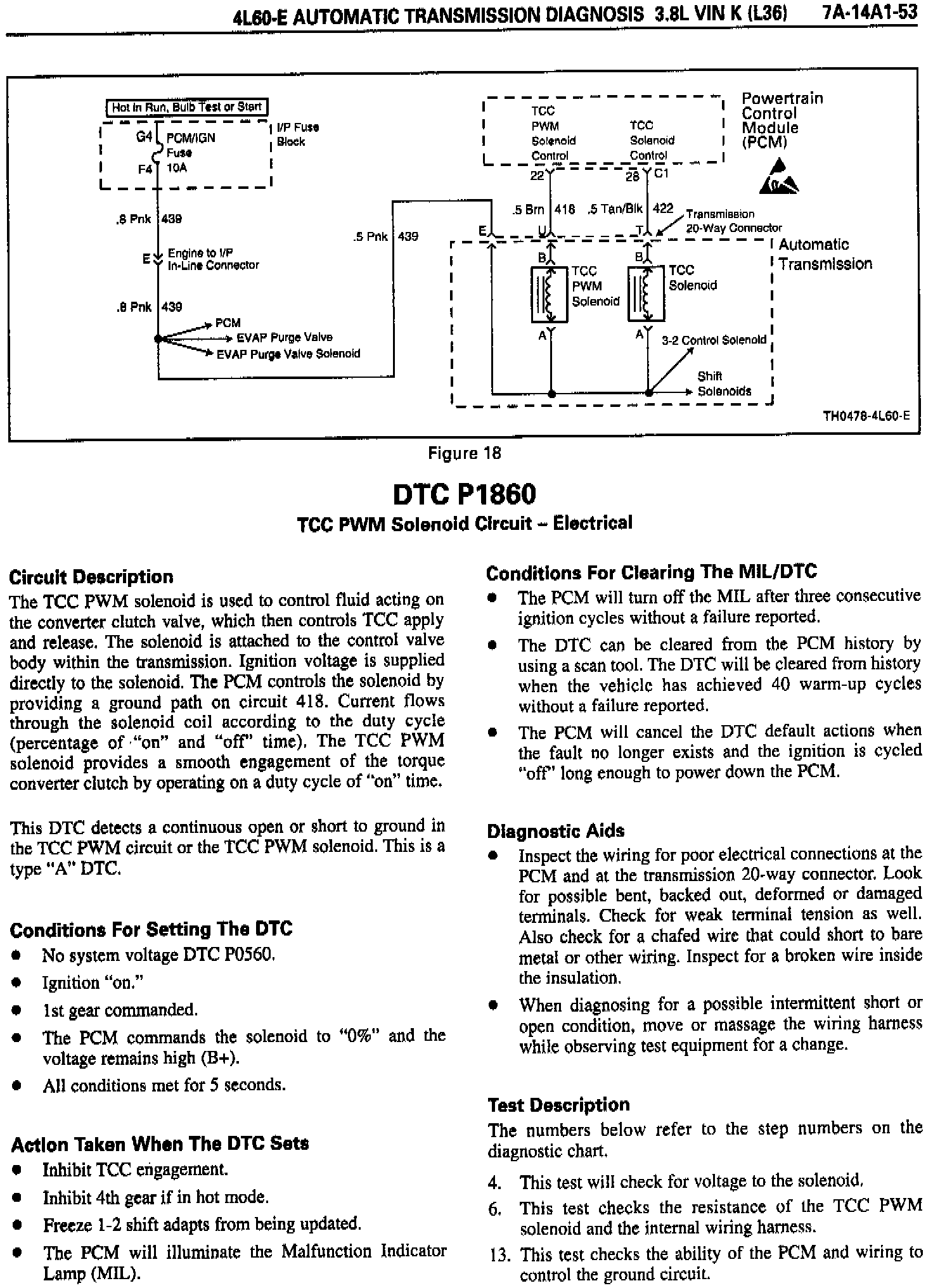

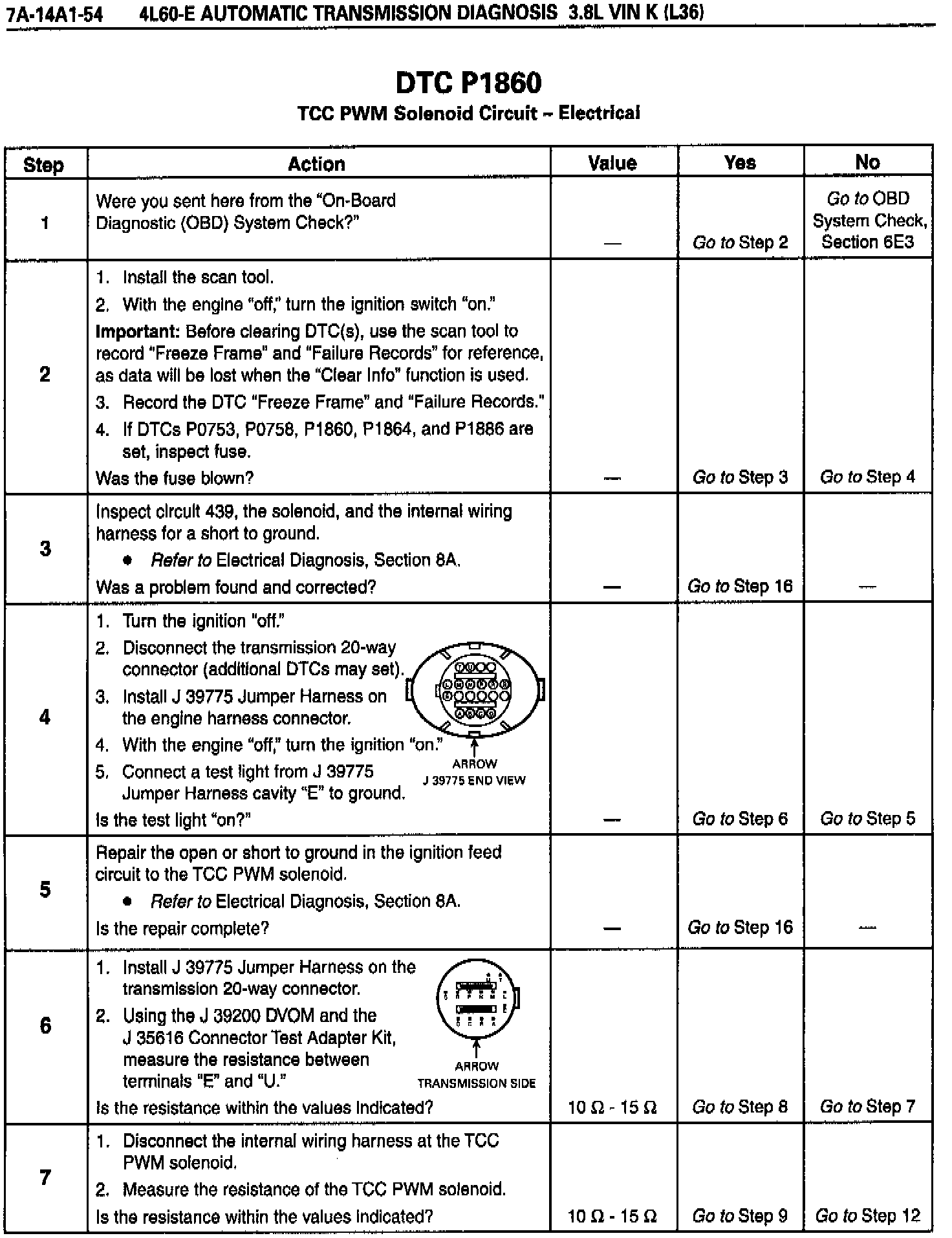

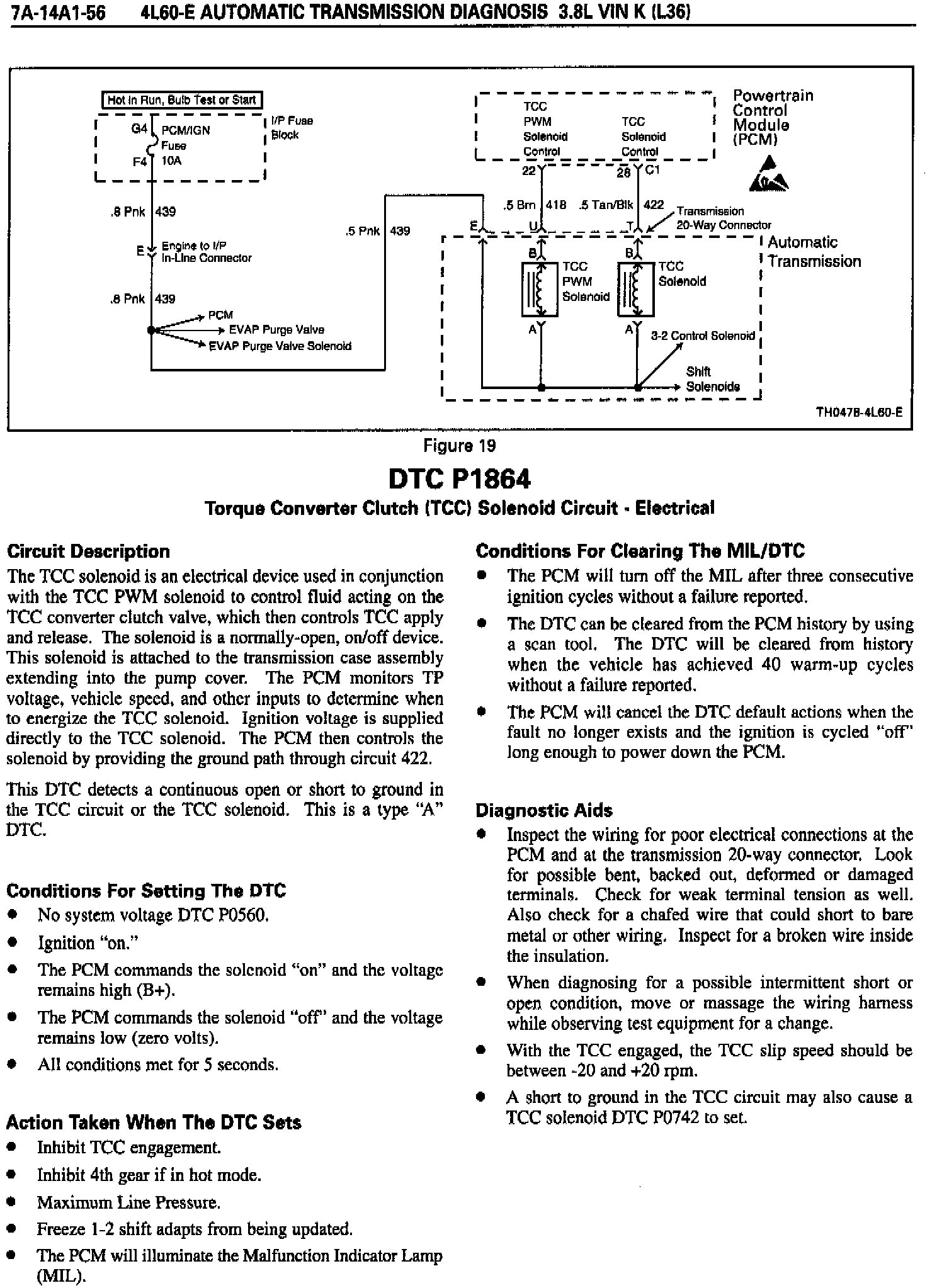

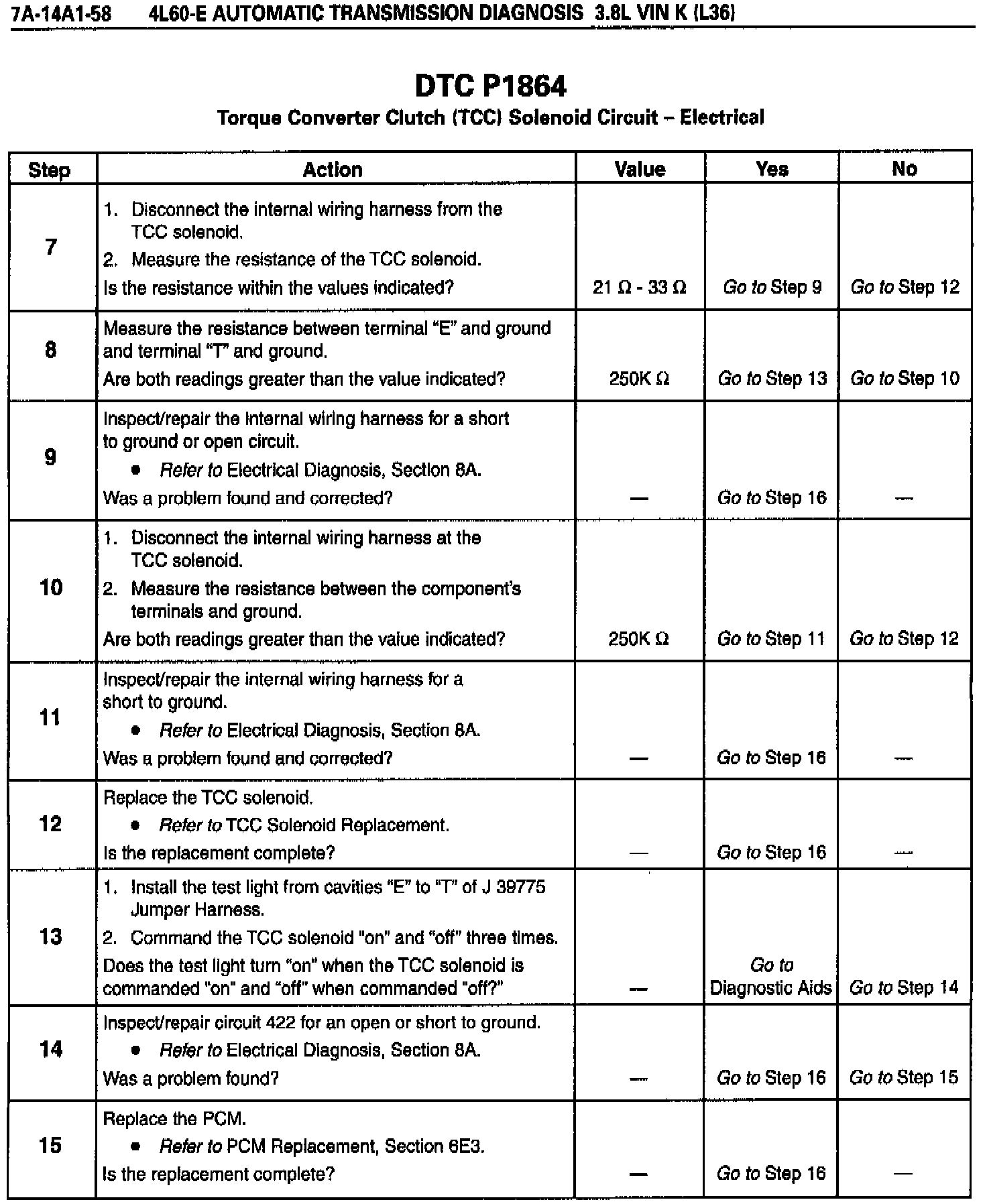

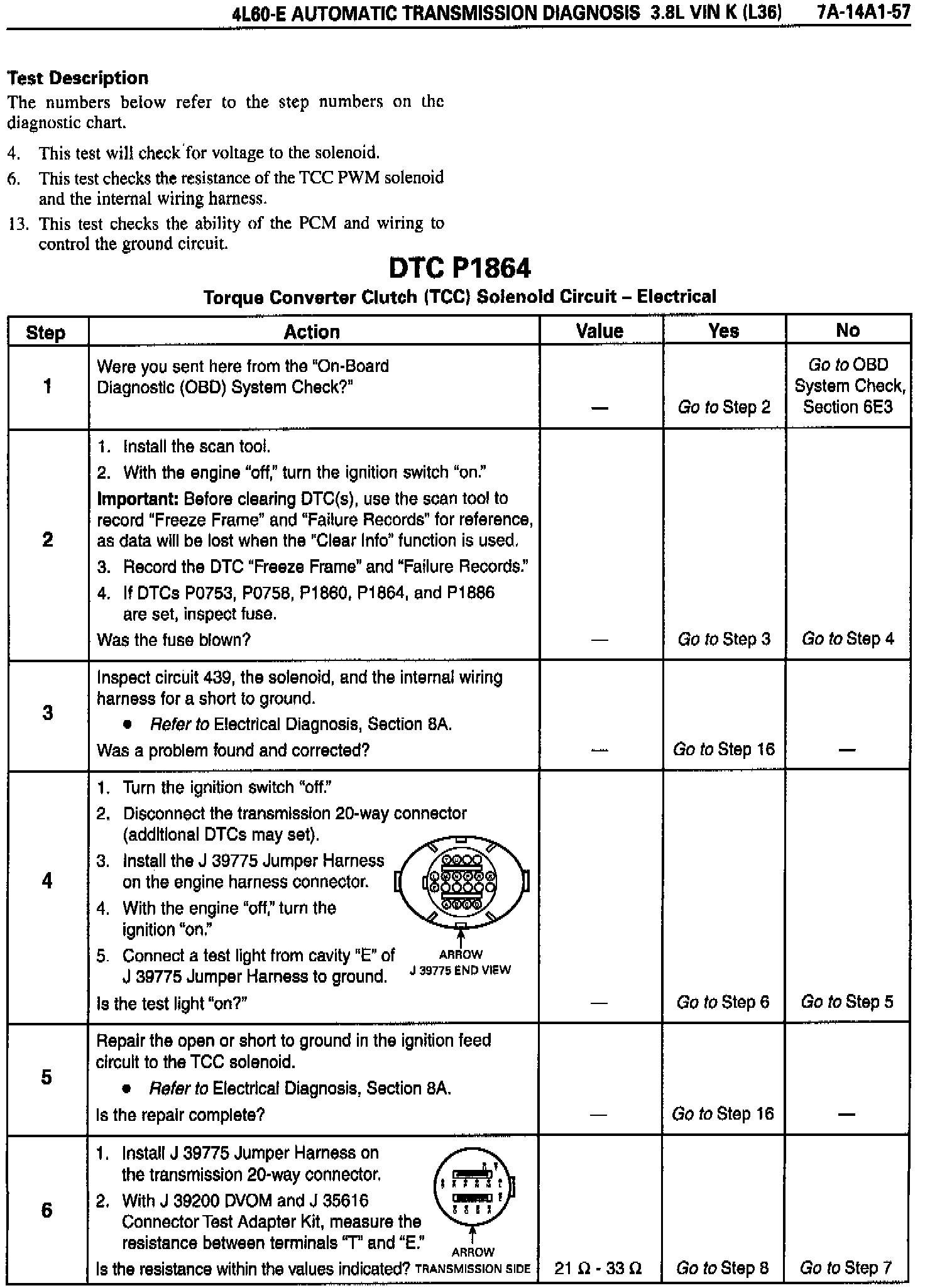

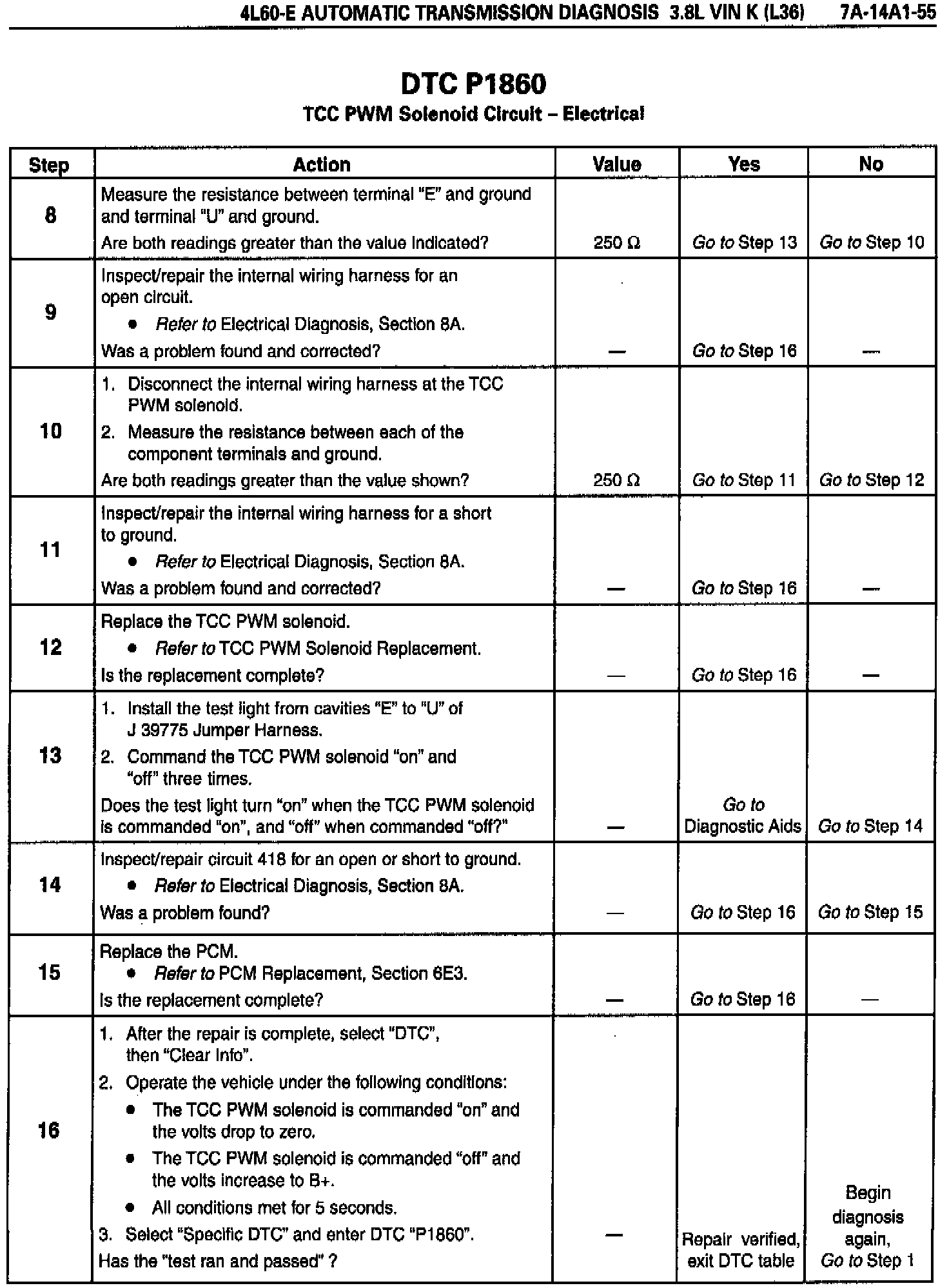

Manual Pages 7A-14A1-53 to 7A-14A1-59

ٷ;:

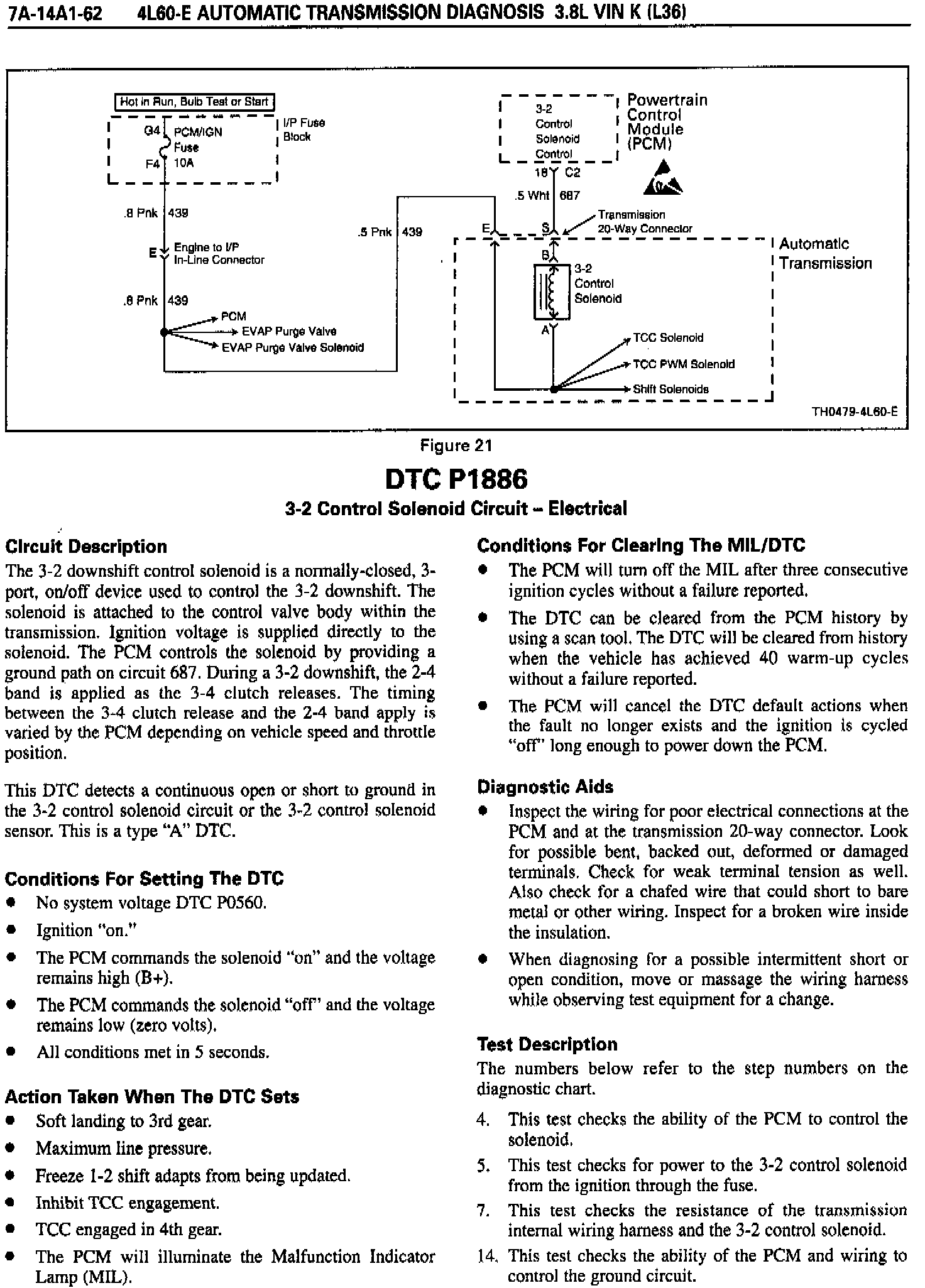

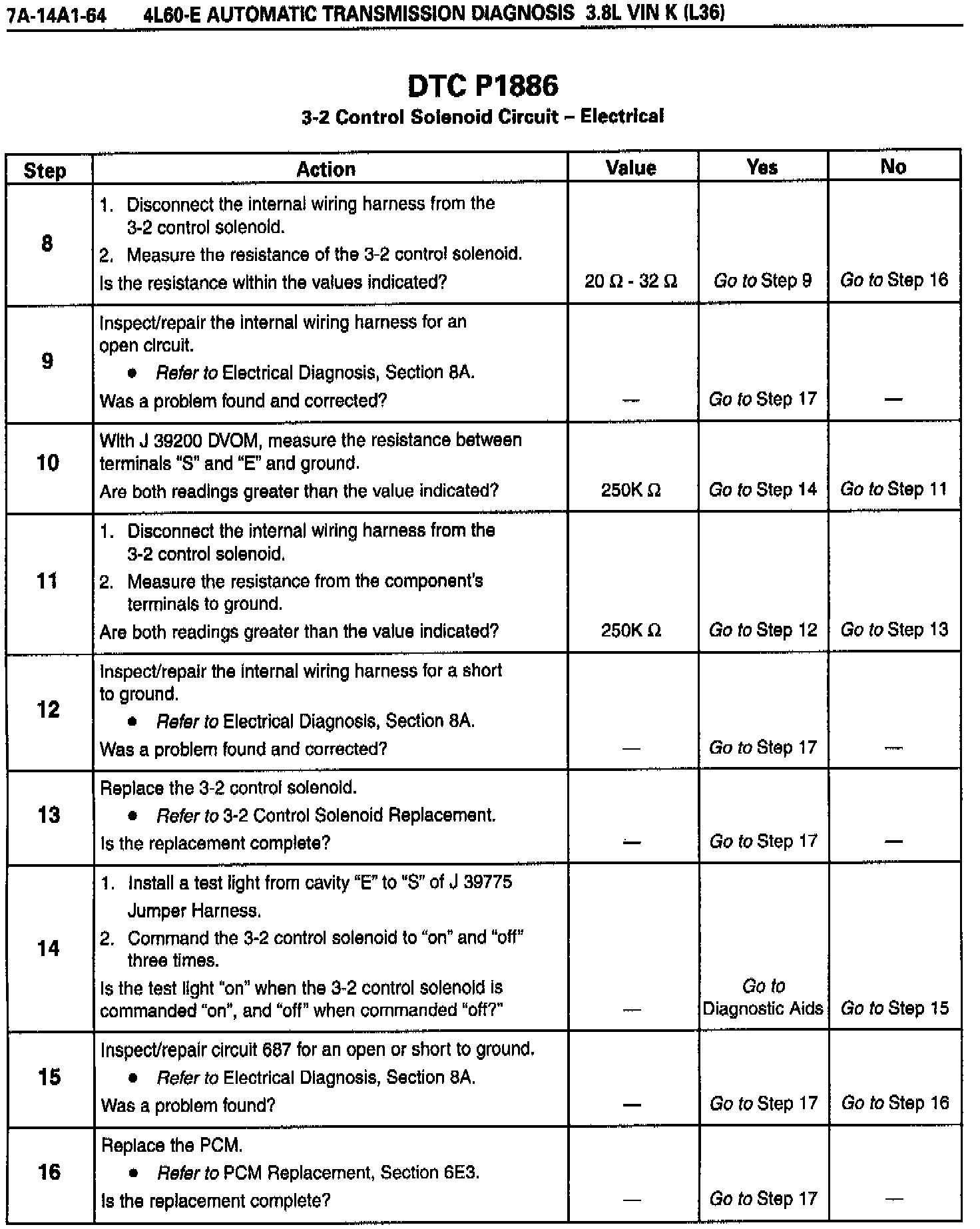

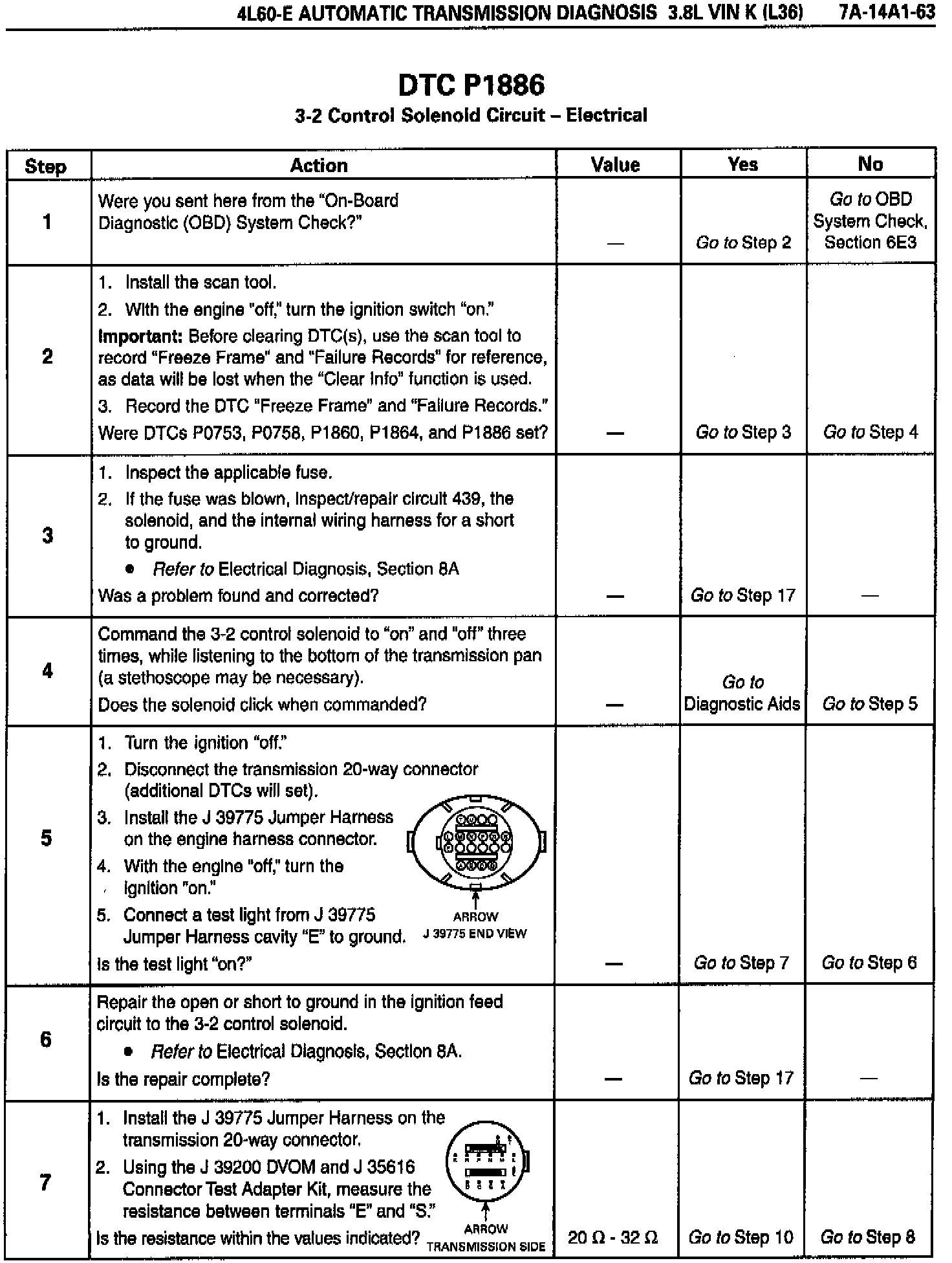

Manual Pages 7A-14A1-62 to 7A-14A1-65

Add these pages to your 1996 Service Manual.
