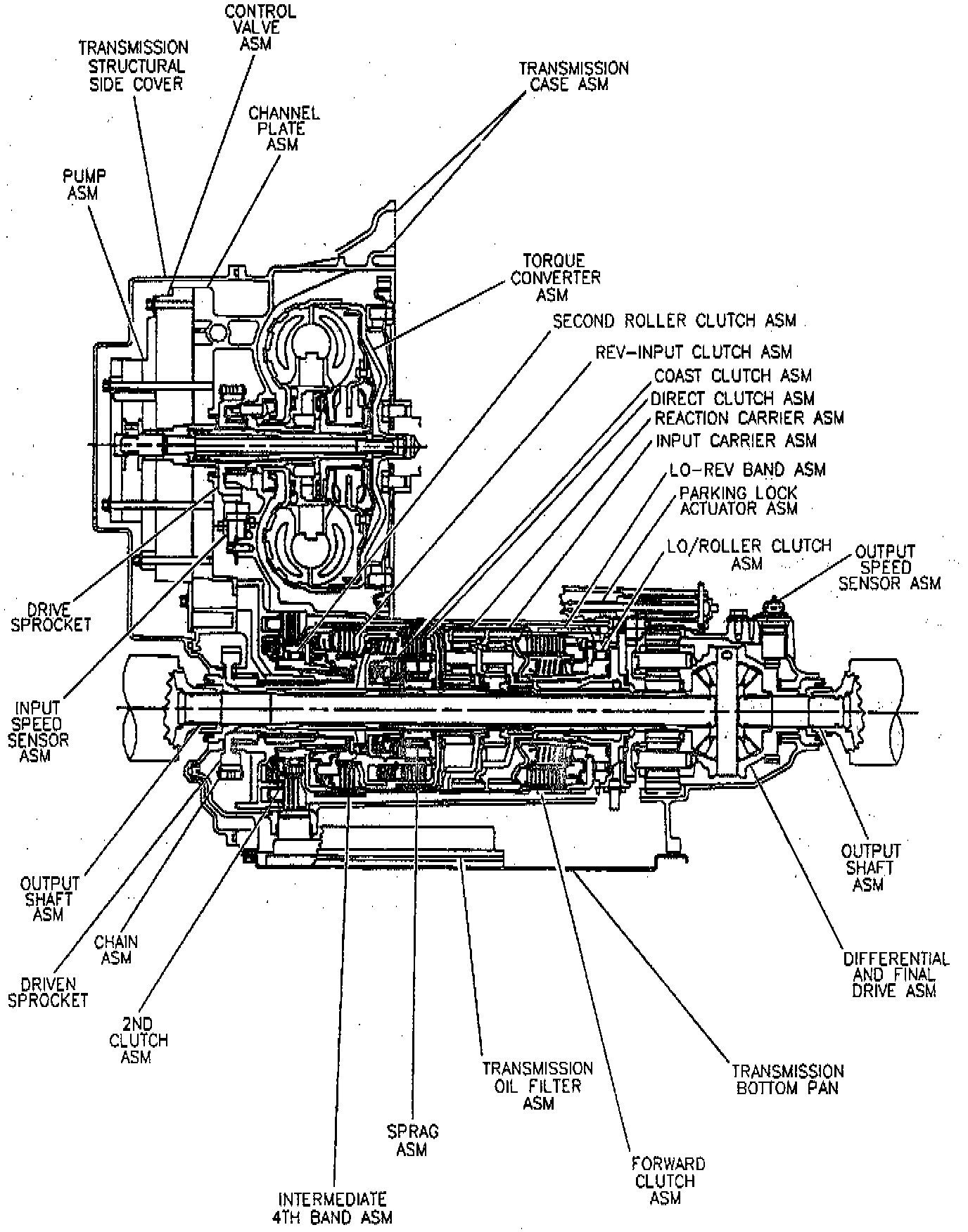

Intermediate / 4TH Servo Assembly

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Raise and support the vehicle.
3. Servo cover bolts and cover.
4. Snap ring, piston assembly, sealing ring, and servo spring.
- For disassembly of the servo piston assembly, refer to Overhaul Procedures.

INSTALL OR CONNECT

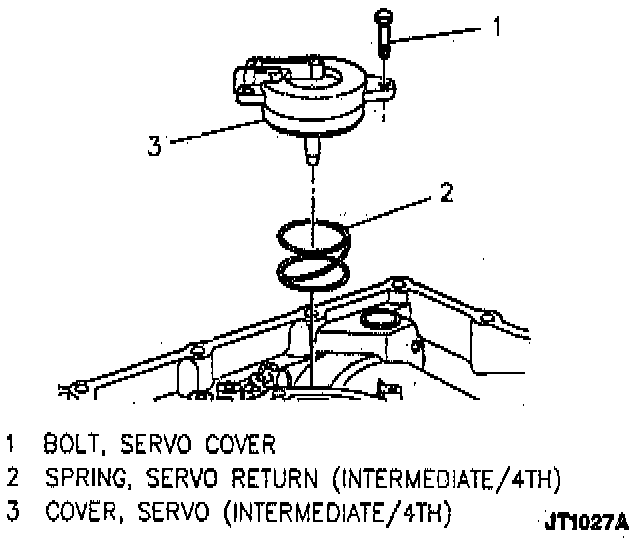

1. Servo spring, sealing ring, piston assembly, snap ring, cover assembly and bolts.

Tighten
- Servo cover bolts on transaxle to 12 N.m (16 lb. ft.).

2. Lower vehicle.
3. Negative battery cable.
