Valve Body Cover

^ Tool Required:
- J 28467-360 Engine Support Fixture

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Transaxle bracket, refer to "Transaxle Support Assembly."





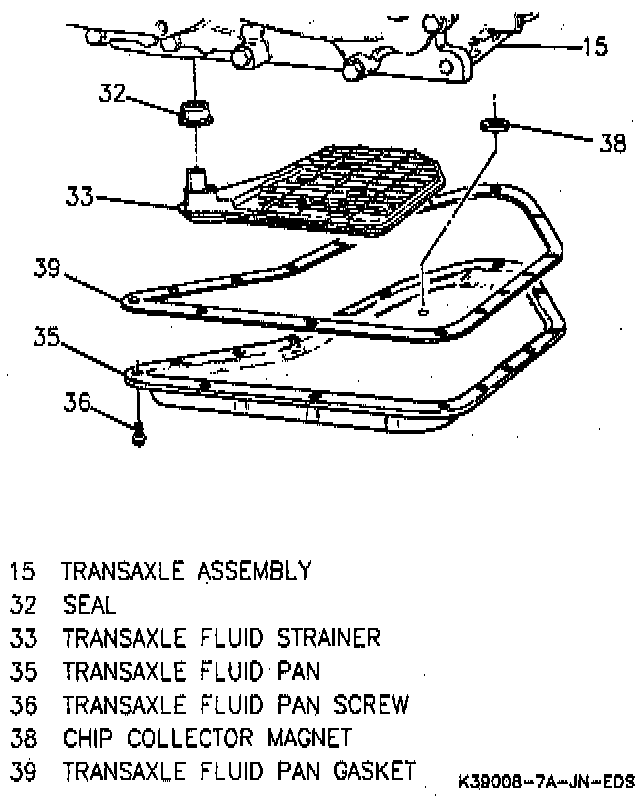

3. Valve body cover and gasket, refer to the image.





Inspect
- Determine if the washer is inverted on bolts, refer to the image.

3T40:

Important
- Use adhesive/sealant compound GM P/N 12345282 or equivalent to reduce the potential for oil leaks on bolts, refer to the image.


INSTALL OR CONNECT
1. Valve body cover and gasket, refer to the 1st image in this article.

Tighten
- Bolts to 24 N.m (18 lb. ft).

2. Transaxle mount bracket, refer to "Transaxle Support Assembly."
3. Negative battery cable.
