Power Seat Switch: Service and Repair

REMOVAL PROCEDURE

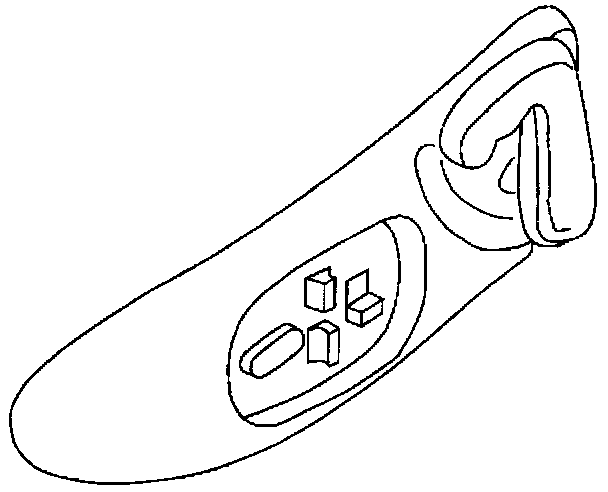

Power Seat Switch Replacement: Removal Procedure:

1. Remove the seatback recliner handle.

Power Seat Switch Replacement: Removal Procedure:

2. Remove the screws attaching the seat side trim panel.
3. Disconnect the switch harness.
4. Remove the switch.

INSTALLATION PROCEDURE

Power Seat Switch Replacement: Installation Procedure:

1. Install the switch.
2. Connect the switch harness.
3. Install the seat side trim panel.

Power Seat Switch Replacement: Installation Procedure:

4. Install the seatback recliner handle.
