Headlamp Motor
Headlamp Motor

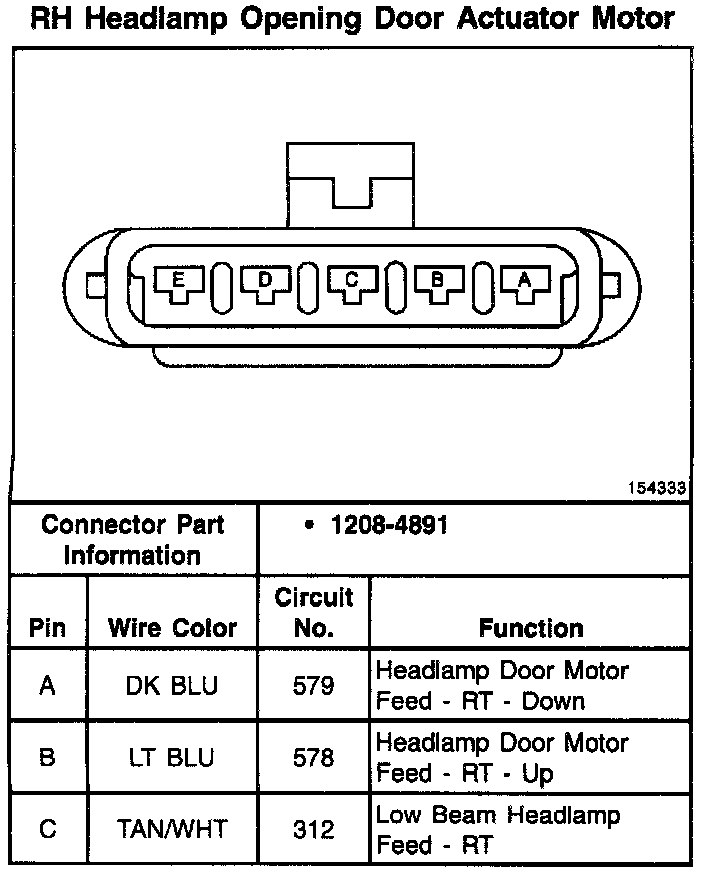

RH Headlamp Opening Door Actuator Motor (Part 1 Of 2):

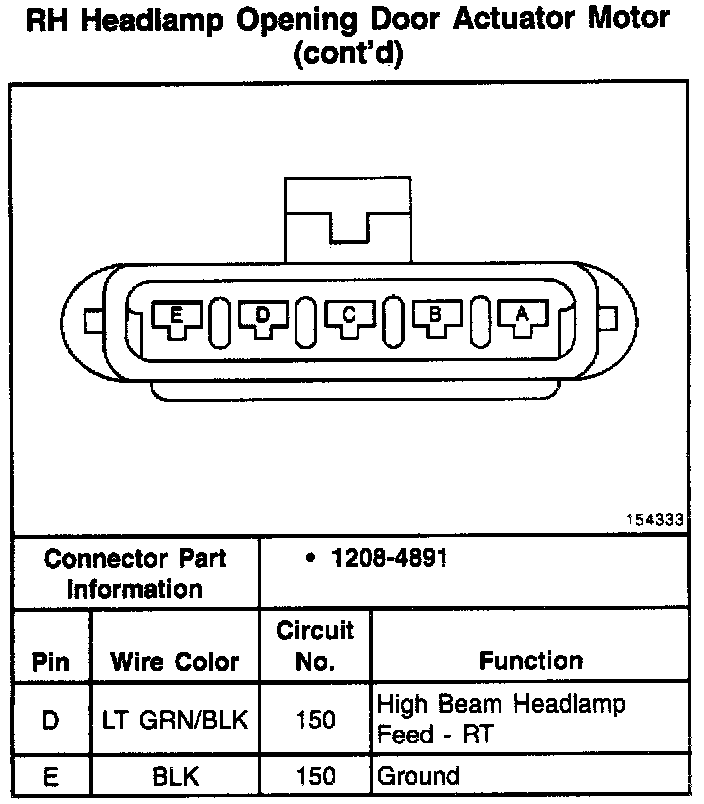

RH Headlamp Opening Door Actuator Motor (Part 2 Of 2):

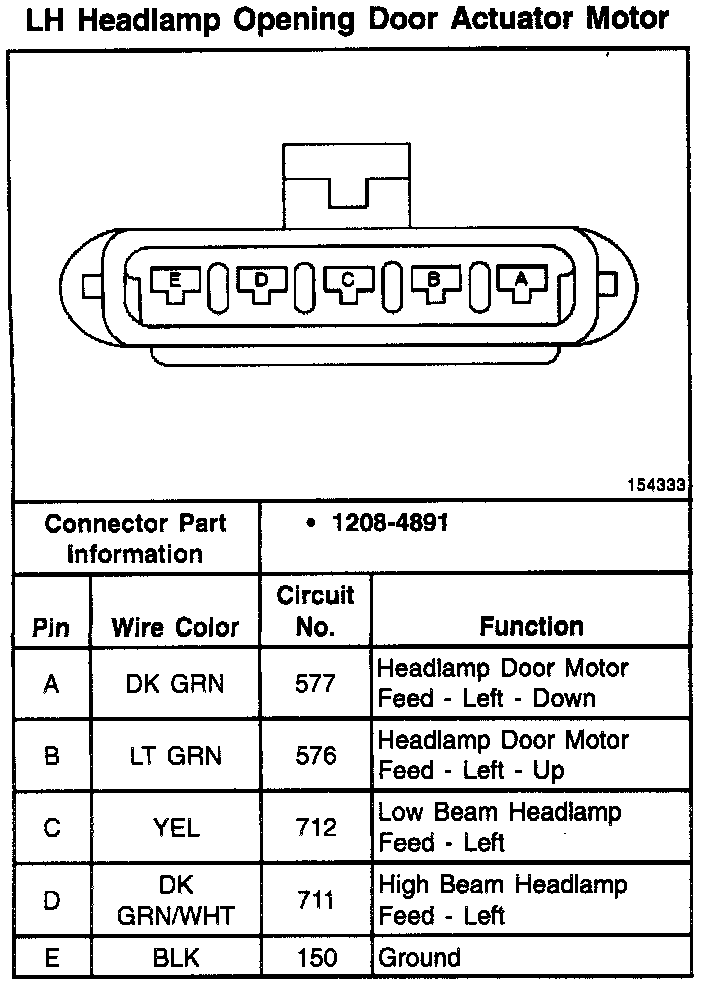

LH Headlamp Opening Door Actuator Motor:
