DLC Power And Ground
DLC Power And Ground

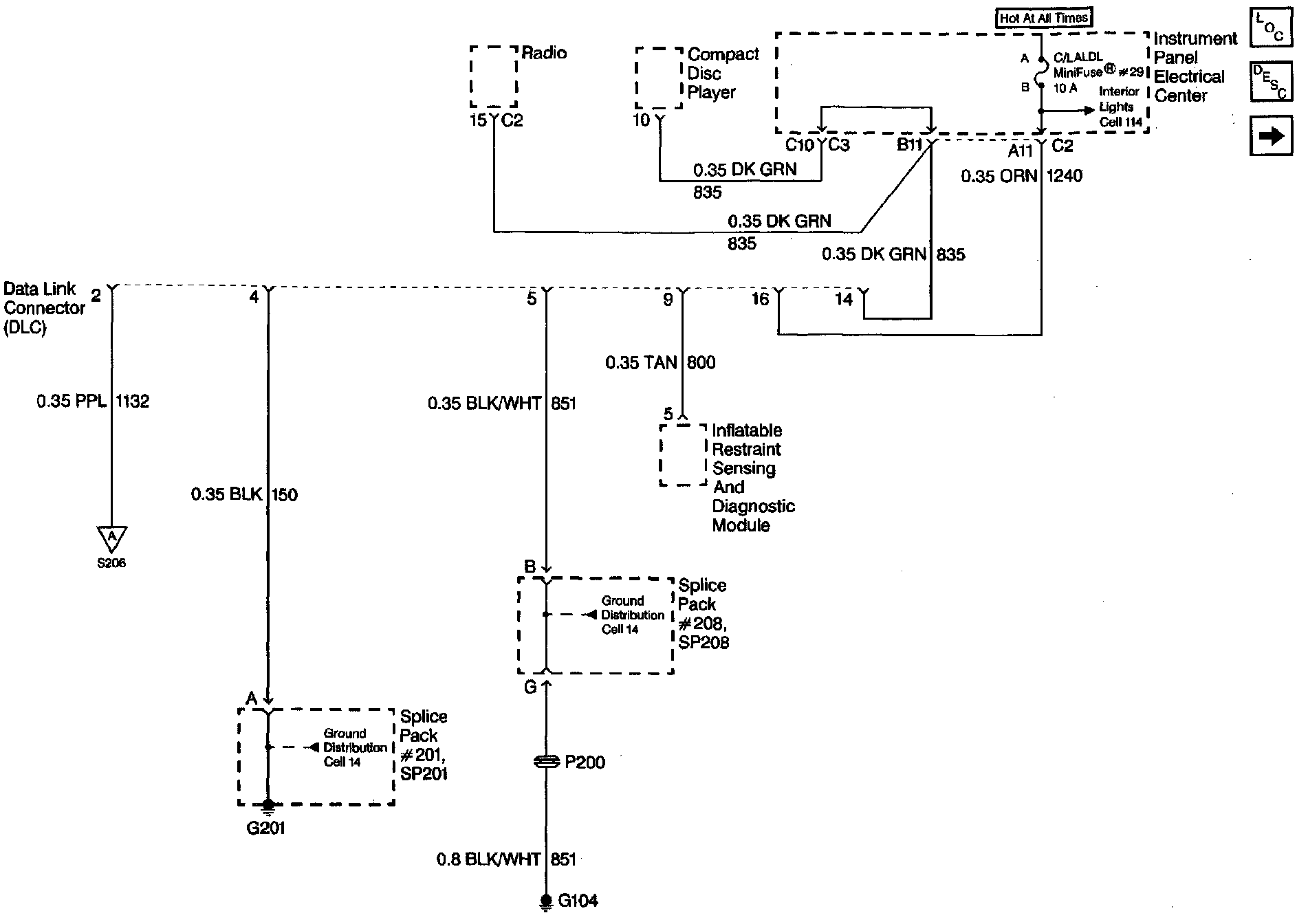

Data Link Connector (DLC) Schematic (Power, Ground And DLC):
