Console Replacement

REMOVAL PROCEDURE




1. Set the park brake, if equipped with a manual transmission
2. Place the ignition switch in the RUN position, if equipped with a automatic transmission.
3. Place the shift lever in the NEUTRAL position.
4. Remove the shift control knob.
5. Remove the shift lever knob from the shift lever.
6. Remove the console trim plate.

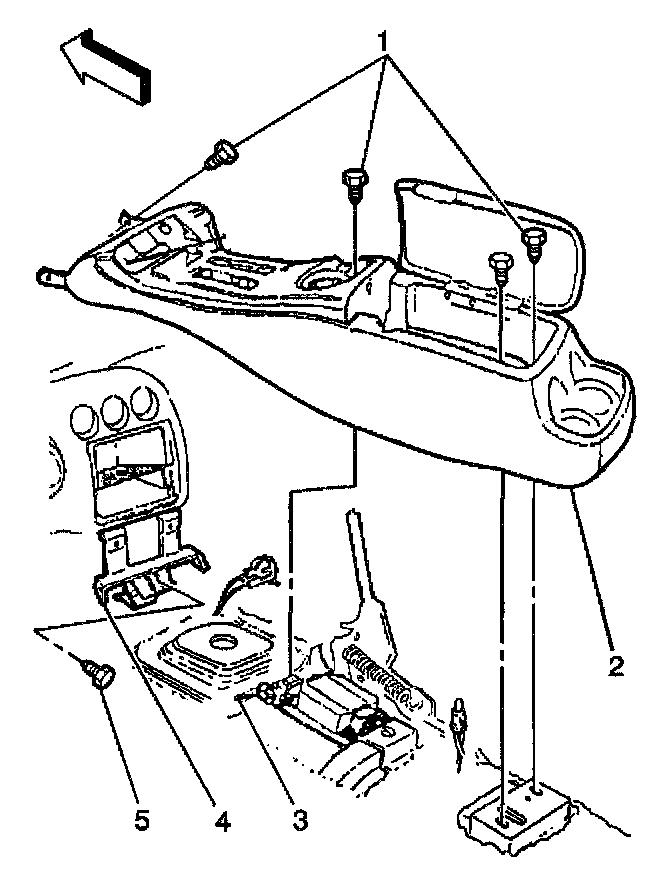

7. Remove the floor console bolts (1).
8. Raise the park brake handle as far as possible.
If the park brake handle cannot be pulled up far enough to remove the console, perform the following:
^ Release the park brake handle
^ Hold the adjuster pawl disengaged
Then park brake handle can be pulled up further.
9. Disconnect the power outlet connector.
10. Remove the floor console (2) from the vehicle.

INSTALLATION PROCEDURE




1. Install the console (2) to the vehicle.
2. Connect the power outlet connector.
3. Release the park brake handle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

4. Install the floor console bolts (1).

Tighten
Tighten the floor console bolts (1) to 8 N.m (71 lb in).

5. Install the console trim plate.
6. Install the shift lever knob to the shift lever.
7. Install the shift control knob.




8. Place the shift lever in the PARK position.
9. Place the ignition switch in the OFF position.
