Brake Rotor Replacement (Front)

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Remove the tire and the wheel.
3. Remove the front brake caliper. Refer to Brake Caliper Replacement (Front)

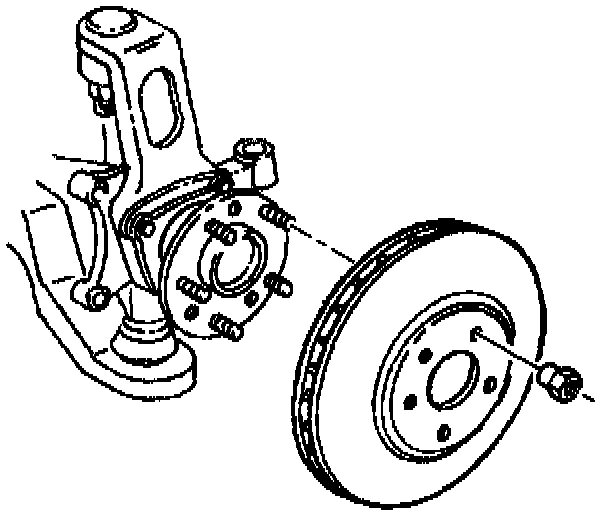

4. Remove the brake rotor from the wheel hub.
5. Clean the metal contact surfaces between the brake rotor and the hub bearing flange.





INSTALLATION PROCEDURE

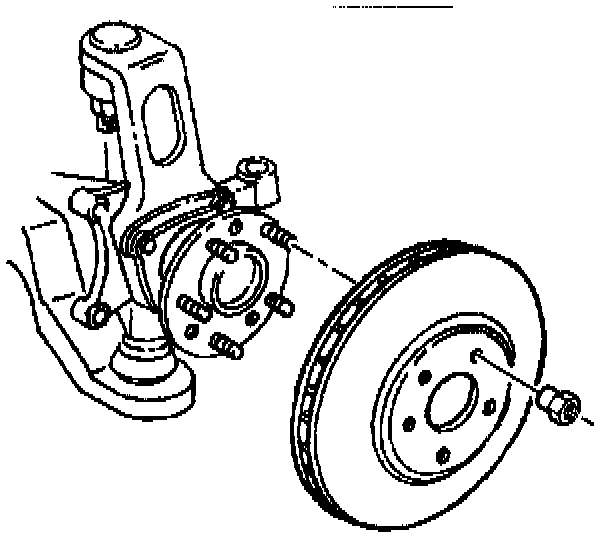

1. Install the brake rotor onto the wheel hub.
2. Install the front brake caliper. Refer to Brake Caliper Replacement (Front).
3. Install the tire and the wheel. Refer to Wheel Installation.
4. Lower the vehicle.
5. Pump brake pedal several times until firm.
