Radiator Hose Replacement - Inlet

REMOVAL PROCEDURE





1. Drain the engine coolant.

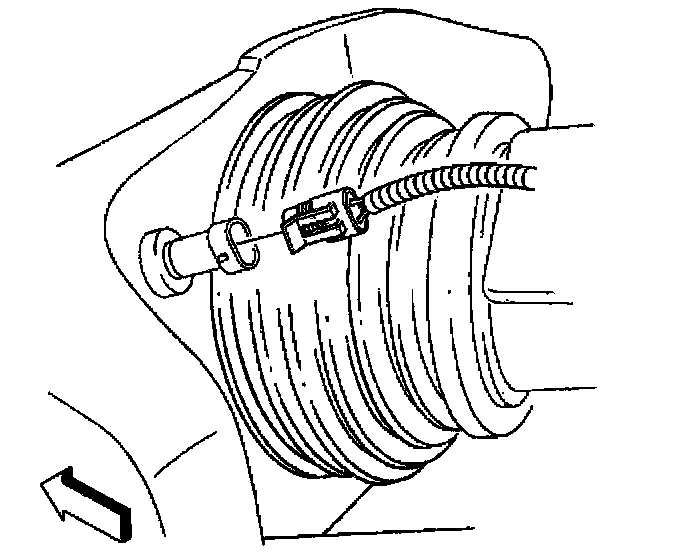

2. Disconnect the (IAT) Intake Air Temperature sensor electrical connector.

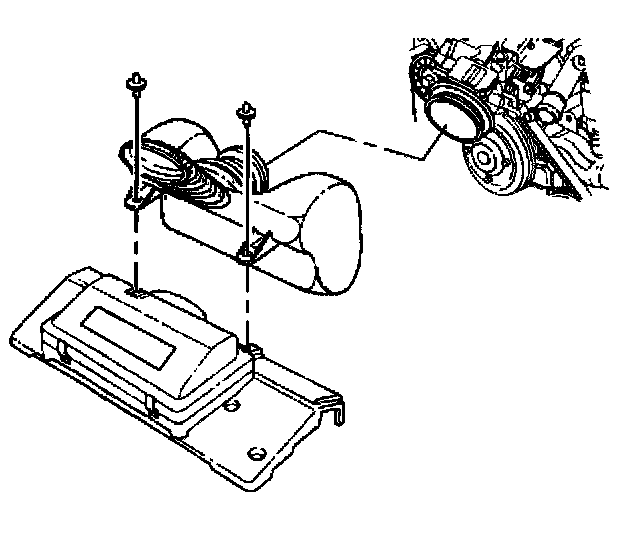

3. Remove the air intake duct.

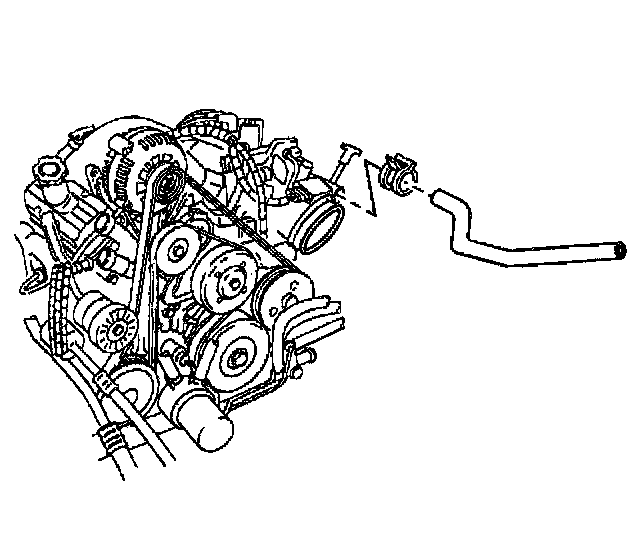

4. Remove the inlet hose from the water outlet.

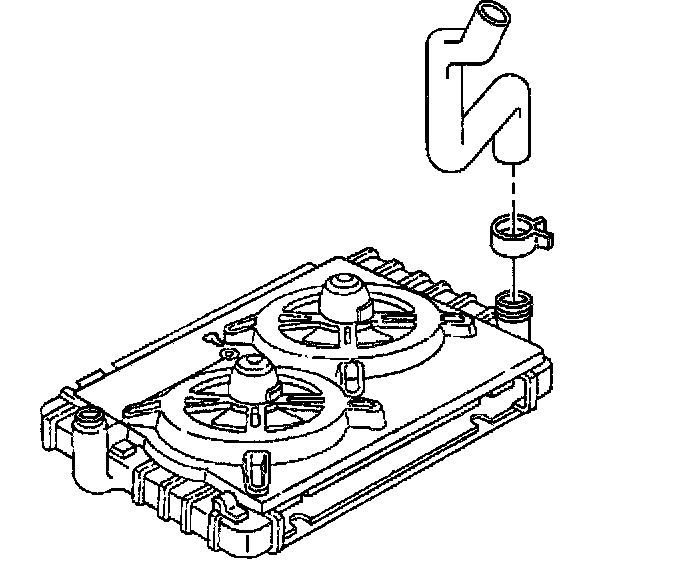

5. Remove the inlet hose from the radiator.

INSTALLATION PROCEDURE

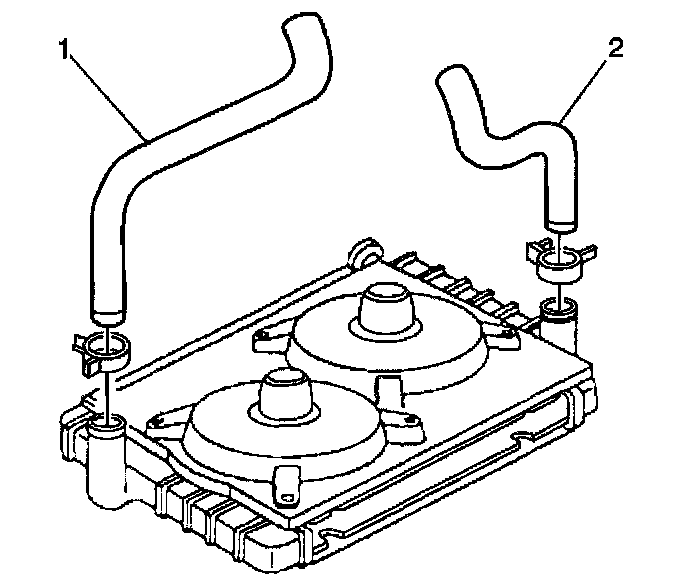

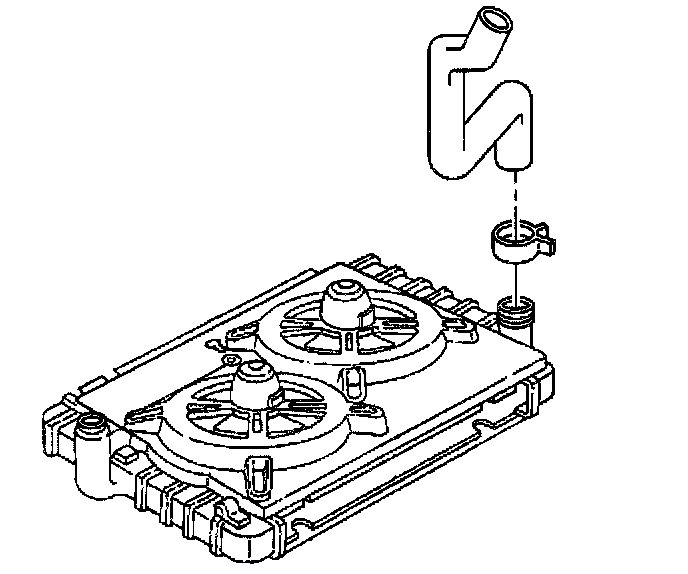

1. Install the inlet hose to the radiator.

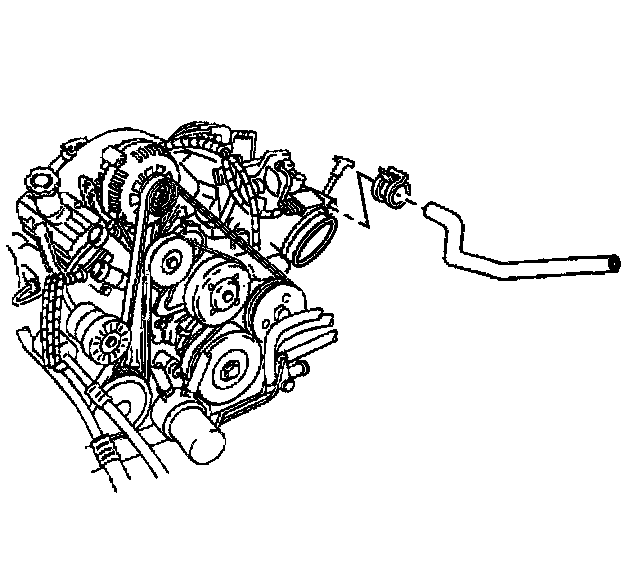

2. Install the inlet hose to the water outlet.

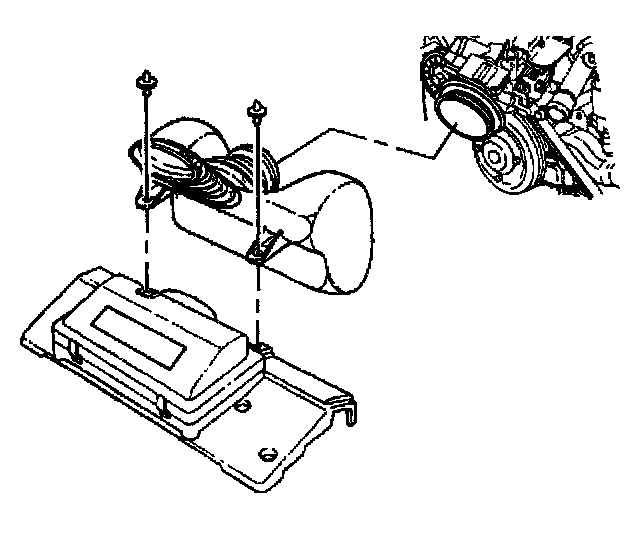

3. Install the air intake duct.





4. Connect the IAT sensor electrical connector.
5. Fill the engine coolant.
