Radiator Cooling Fan Motor Relay: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

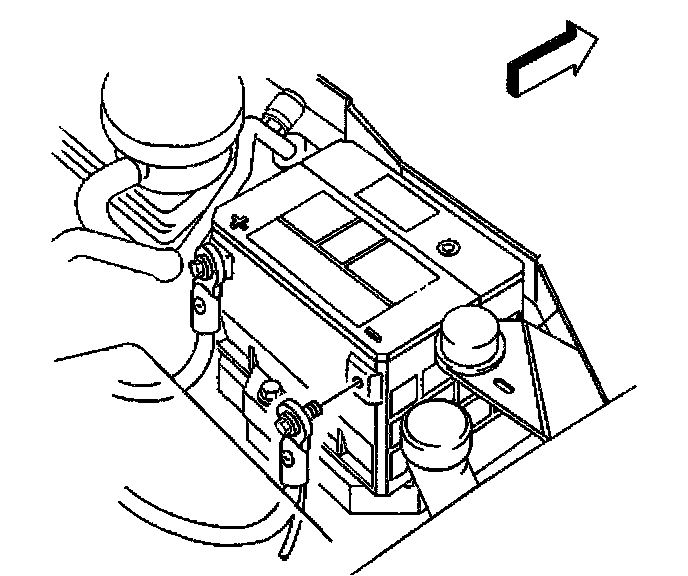

1. Disconnect the negative battery cable.

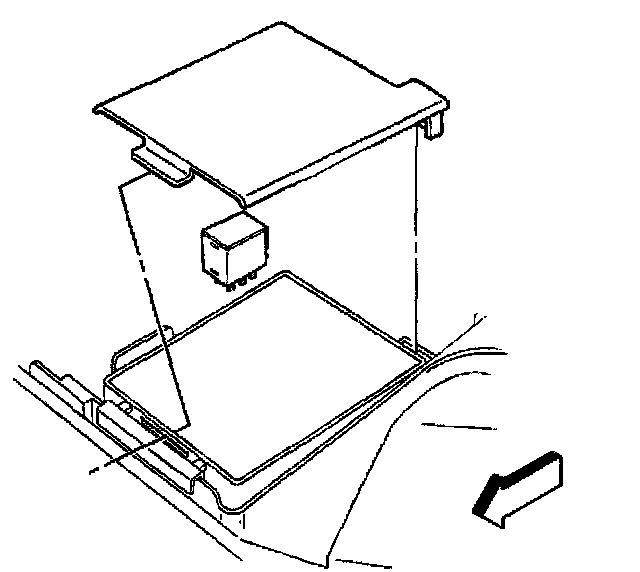

2. Remove the cover from the number 1 underhood electrical center.
3. Remove the cooling fan relay from the underhood electrical center.

INSTALLATION PROCEDURE

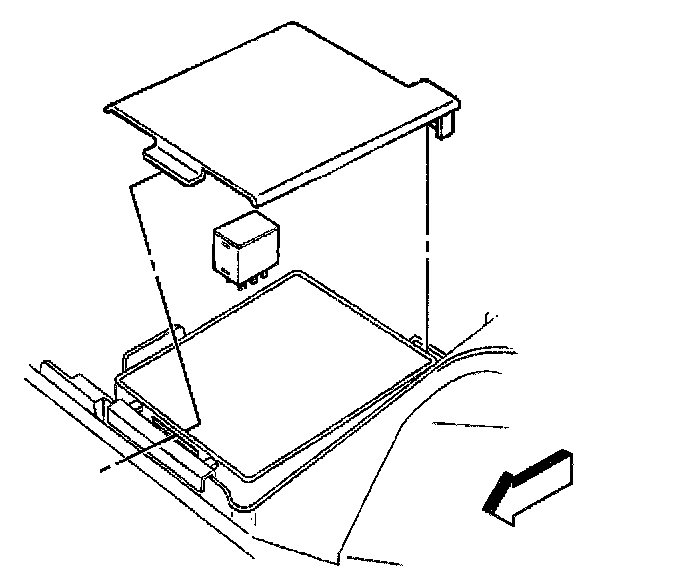

1. Install the cooling fan relay to the underhood electrical center.
2. Install the cover to the number 1 underhood electrical center.

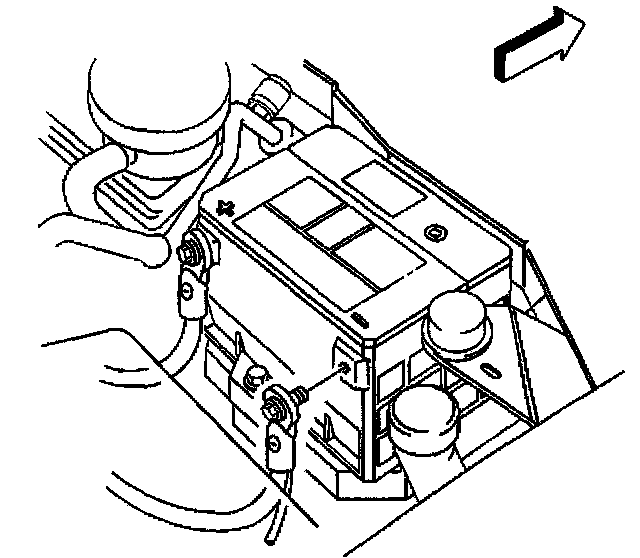

3. Connect the negative battery cable.
