Starter Heat Shield: Service and Repair

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.

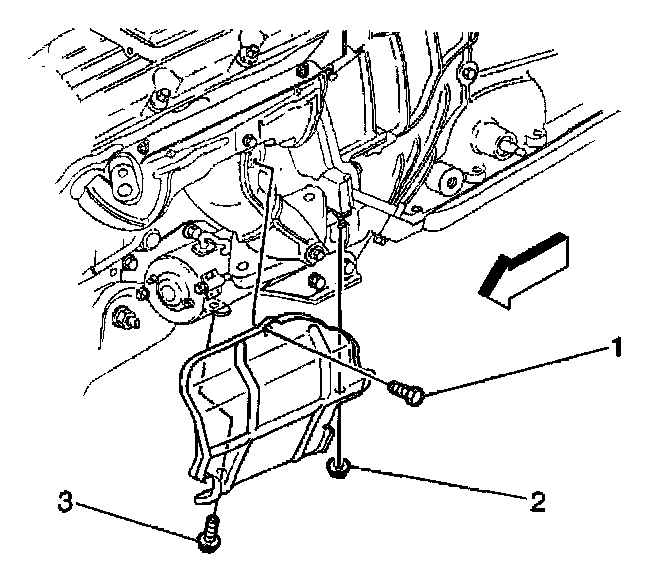

2. Remove the starter shield bolts (1 3) and nut (2).
3. Remove the starter shield from the vehicle.

INSTALLATION PROCEDURE
1. Install the starter shield to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the starter shield nut (2) and bolts (1, 3).

Tighten
^ Tighten the starter shield nut (2) to 10 N.m (89 lb in).
^ Tighten the starter shield to transmission brace bolt (3) to 10 N.m (89 lb in).
^ Tighten to starter shield to engine block bolt (1) to 30 N.m (22 lb ft).

3. Lower the vehicle.
