E. Main Drive Gear Disassemble

^ Tools Required
- A Hydraulic Press
- J 22912-01 Bearing and Gear Puller

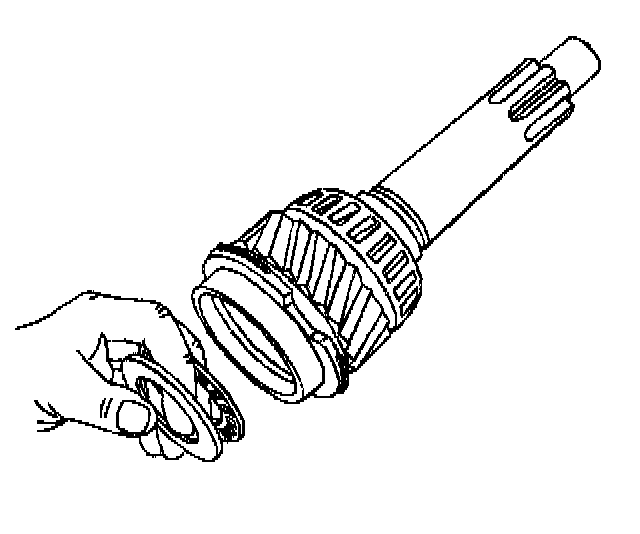

1. Remove the following parts:
1.1. The bearing race
1.2. The thrust bearing
1.3. The 15 roller bearings from the cavity of the drive gear.

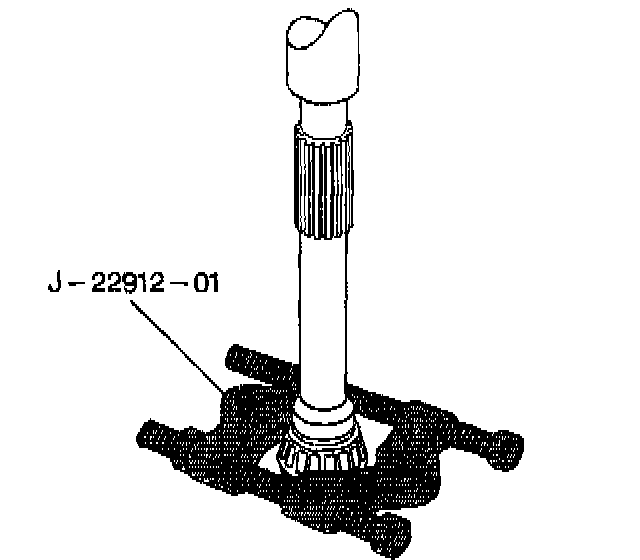

2. Remove the bearing from the drive gear. Use the J 22912-01 and a hydraulic press.
