U. Extension Housing Assemble

INSTALLATION PROCEDURE

^ Tools Required
- J 8092 Driver Handle
- J 23062-14 Extension Housing Bushing Remover and Installer
- J 21426 Extension Housing Seal Installer

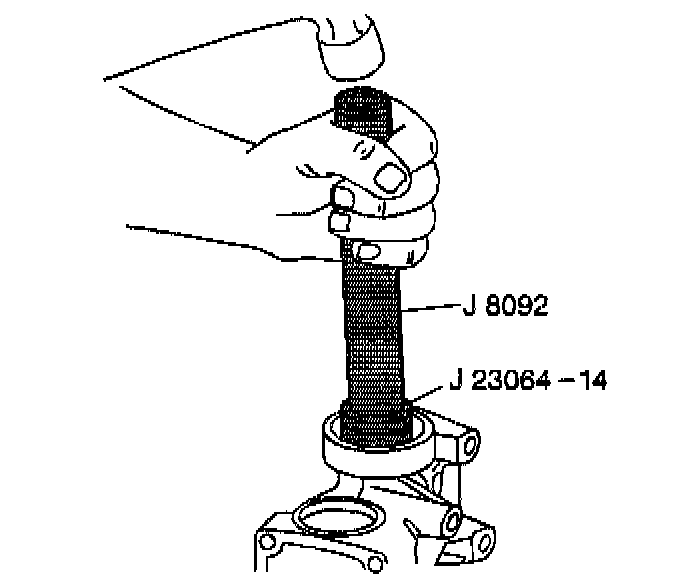

1. Install a new bushing in the extension housing.
Use the J 23062-14 and a J 8092.

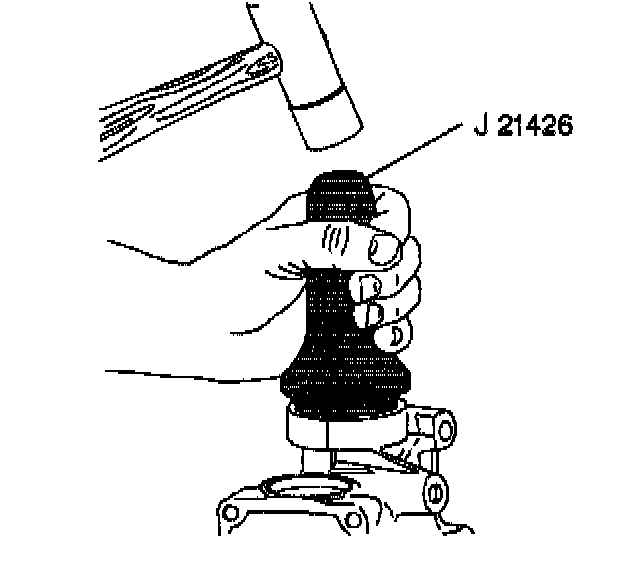

2. Install a new oil seal using the J 21426.

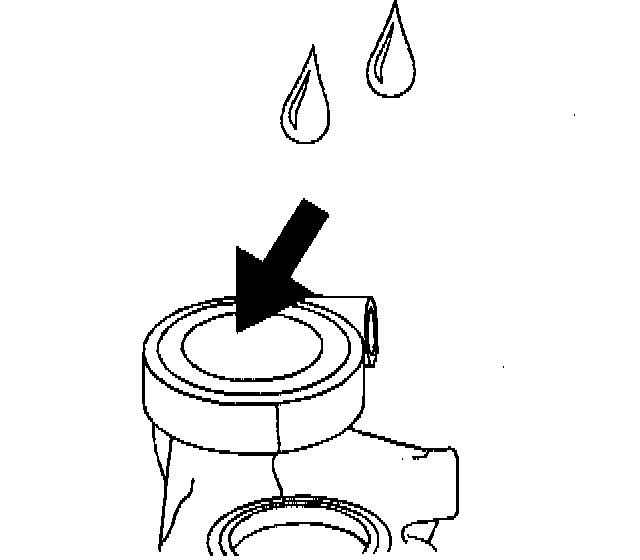

3. Lubricate the inside diameter of the seal with transmission lubricant. Use Dexron(R) III Transmission Lubricant or the equivalent.
