Exhaust Pipe: Service and Repair

REMOVAL PROCEDURE

NOTICE: Do not over-flex or damage the flex decoupler joint when moving the flex decoupler joint from the normal mounting position. The flex decoupler joint will flex a maximum of six degrees which is equivalent to the pipes connected at the joint which move 1 inch for each foot length of pipe. A three foot pipe would move a maximum of three inches.

IMPORTANT: A service muffler will be needed when replacing the intermediate pipe on an originally equipped, welded system.





1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Support the three-way catalytic converter.

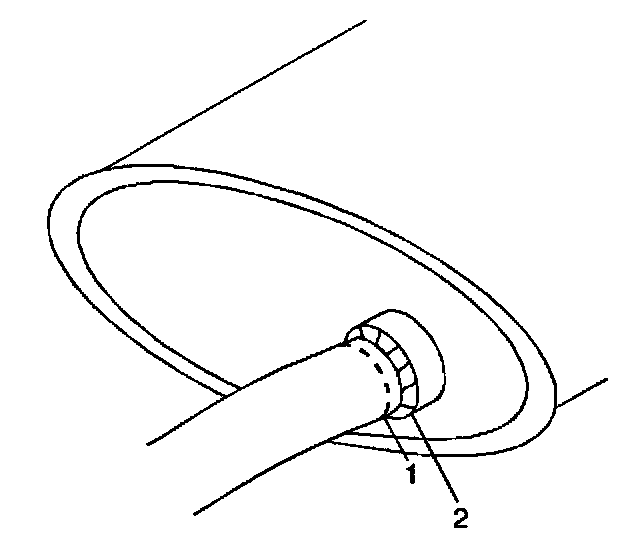

3. Cut the intermediate pipe at the muffler.

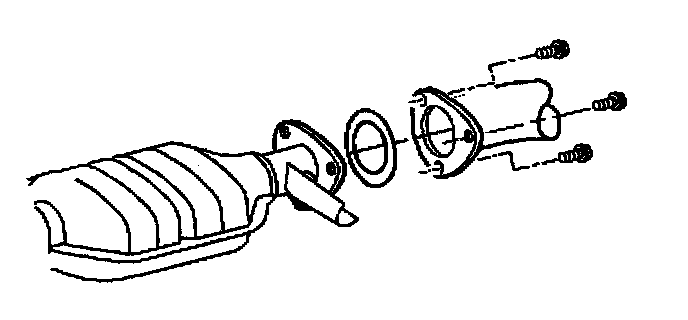

4. Remove the intermediate pipe from the three-way catalytic converter.

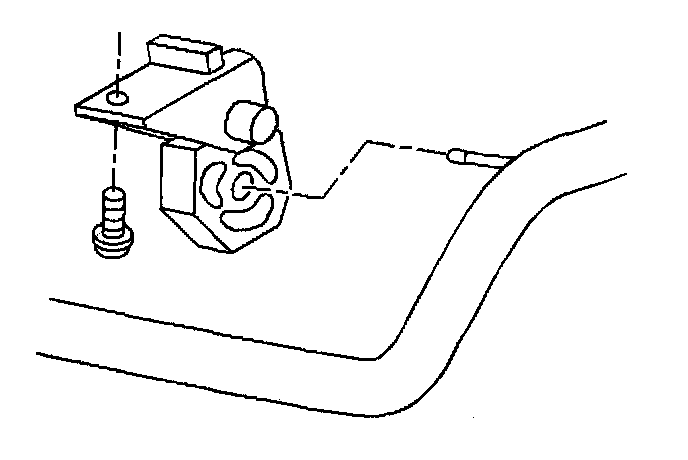

5. Remove the intermediate pipe from the hanger.





6. Remove the intermediate pipe.

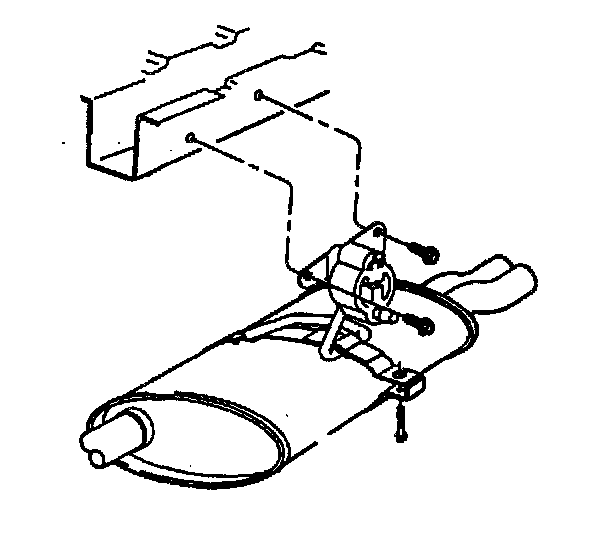

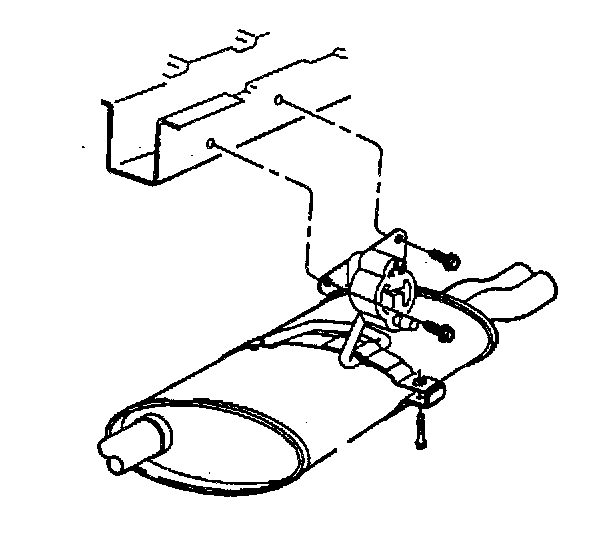

7. Remove the muffler from the hangers.

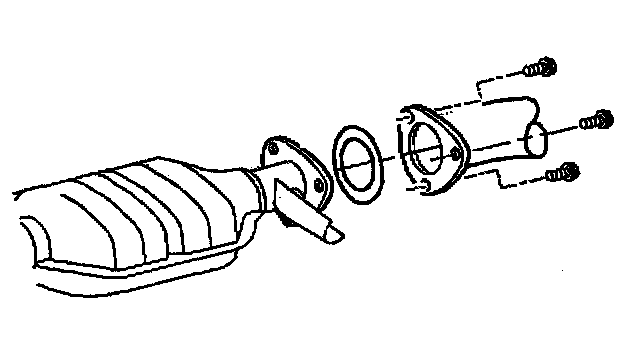

8. Remove the three-way catalytic converter seals.
9. Clean the flange surface.

INSTALLATION PROCEDURE

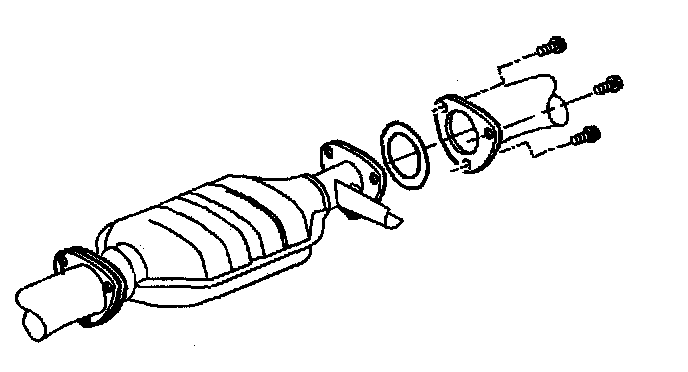

1. Install the three-way catalytic converter seals.

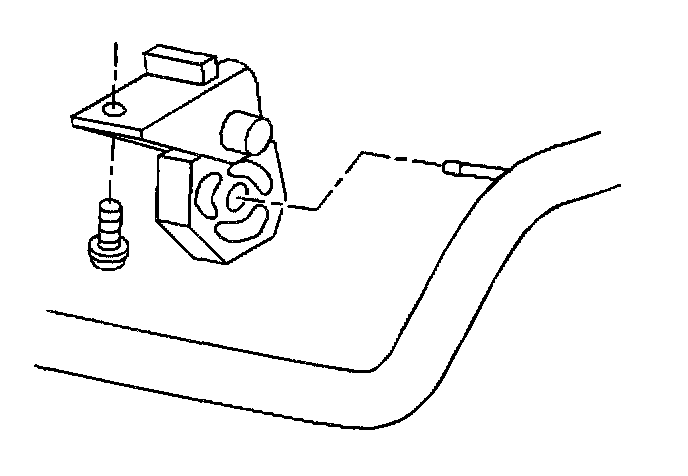

2. Install the intermediate pipe to the hanger.

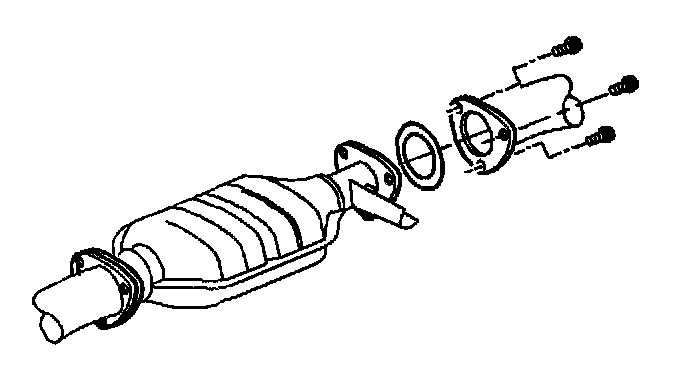

3. Install the intermediate pipe to the three-way-catalytic converter.





4. Install the muffler to the hangers.

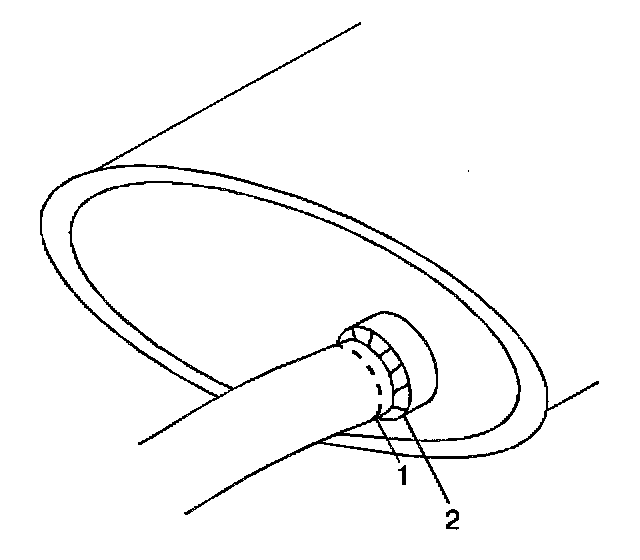

5. Weld the muffler to the intermediate pipe.
6. Lower the vehicle.
