Clutch Pedal Assembly: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: Service the clutch pedal and bracket as an assembly.





1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the sound insulator from inside the vehicle. Refer to Insulator Replacement - IP in Instrument Panel, Gauges and Warning Indicators.

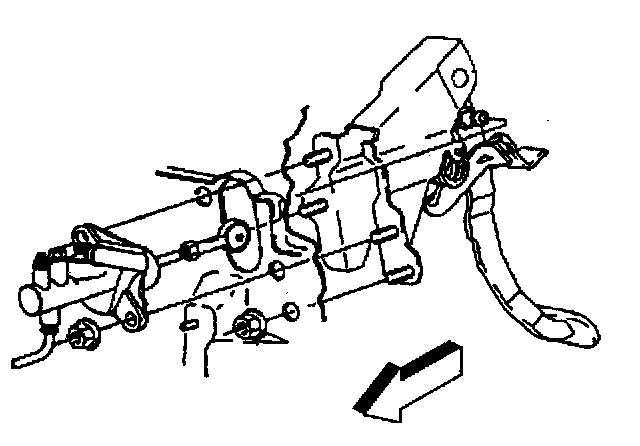

3. Remove the clutch master cylinder pushrod from the clutch pedal.

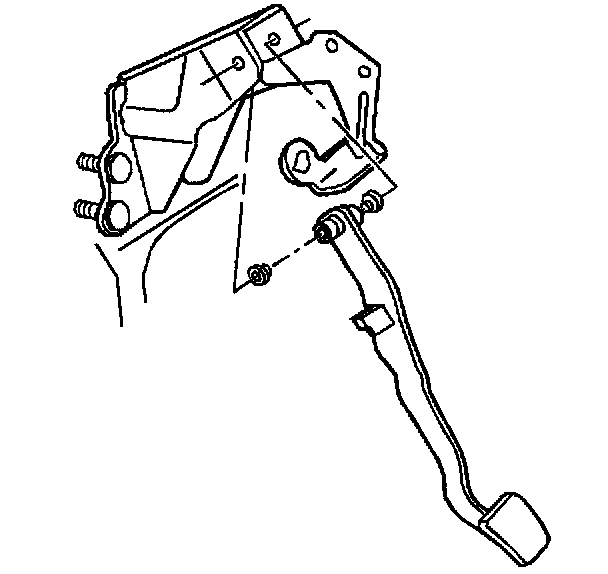

4. Remove the clutch pedal and bracket mounting nuts.





5. Remove the clutch pedal and bracket assembly.

INSTALLATION PROCEDURE

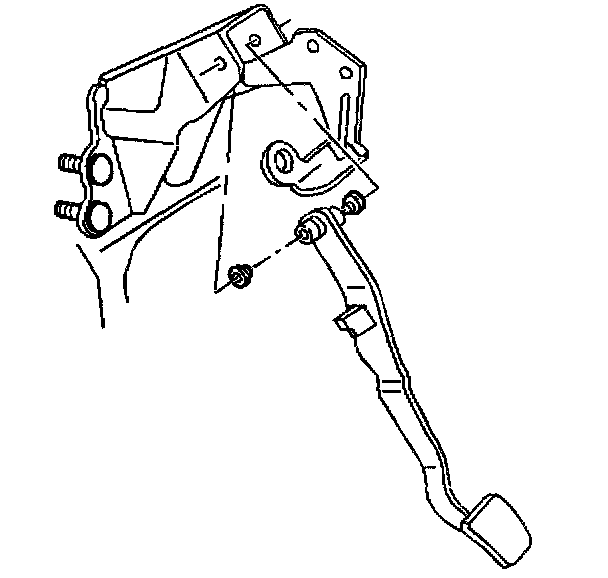

1. Install the clutch pedal and bracket assembly.

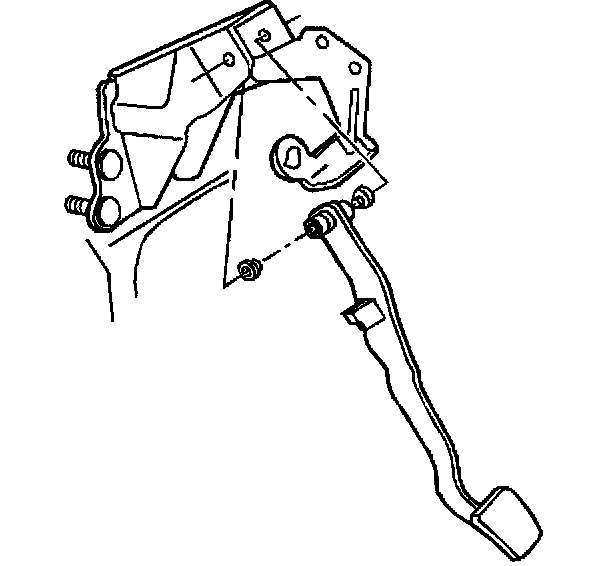

2. Install the clutch pedal and bracket mounting nuts.
^ Start with the lower nuts, tighten the nuts to 23 Nm (17 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the clutch master cylinder pushrod bushing on the pedal. Lubricate the bushing.
4. Install the clutch master cylinder pushrod to the clutch pedal.
5. Adjust the cruise control clutch switch, if equipped. Refer to Cruise Control Cable Adjustment (LN2) or Cruise Control Cable Adjustment (LD9) in Cruise Control.
6. Install the sound insulator. Refer to Insulator Replacement - IP in Instrument Panel, Gauges and Warning Indicators.
7. Connect the negative battery cable.
