Trunk / Liftgate Weatherstrip: Service and Repair

REMOVAL PROCEDURE

Weatherstrip Replace: Rear Compartment Opeing (Convertible): Removal Procedure:

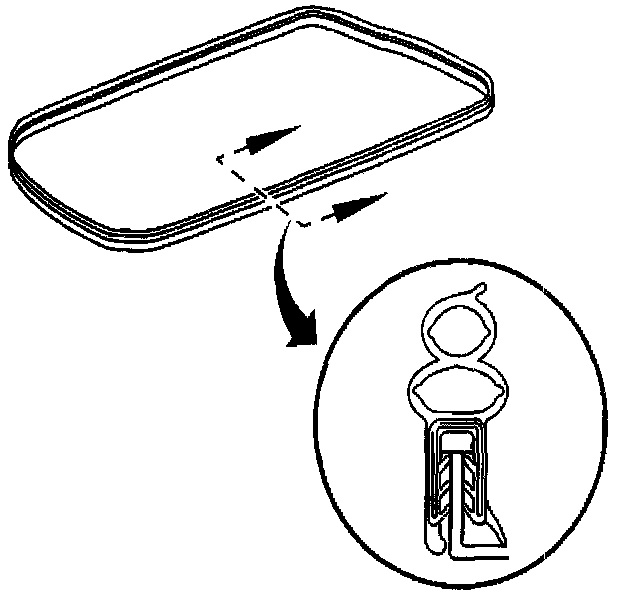

1. Pull the weather-strip from the flange of the rear compartment panel.

INSTALLATION PROCEDURE

Weatherstrip Replace: Rear Compartment Opeing (Convertible): Installation Procedure:

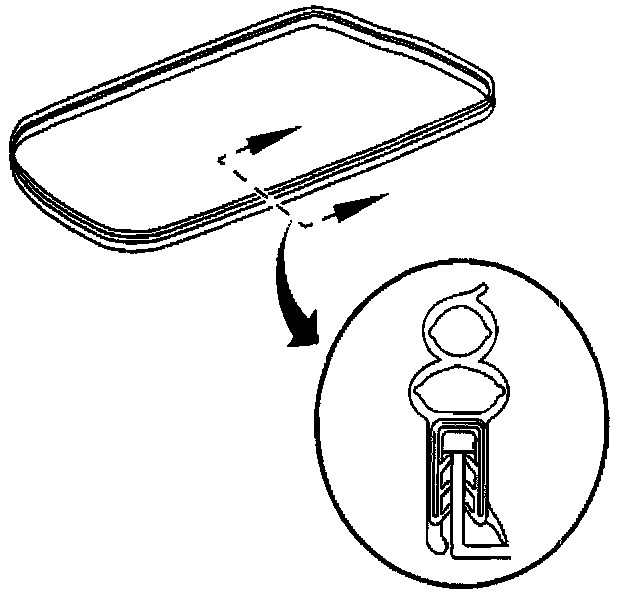

1. Position the weather-strip to the rear compartment flange with the upper lip of the seal facing outward.
2. Seat the seal firmly to the flange.
