Radio/Stereo
Radio/Stereo

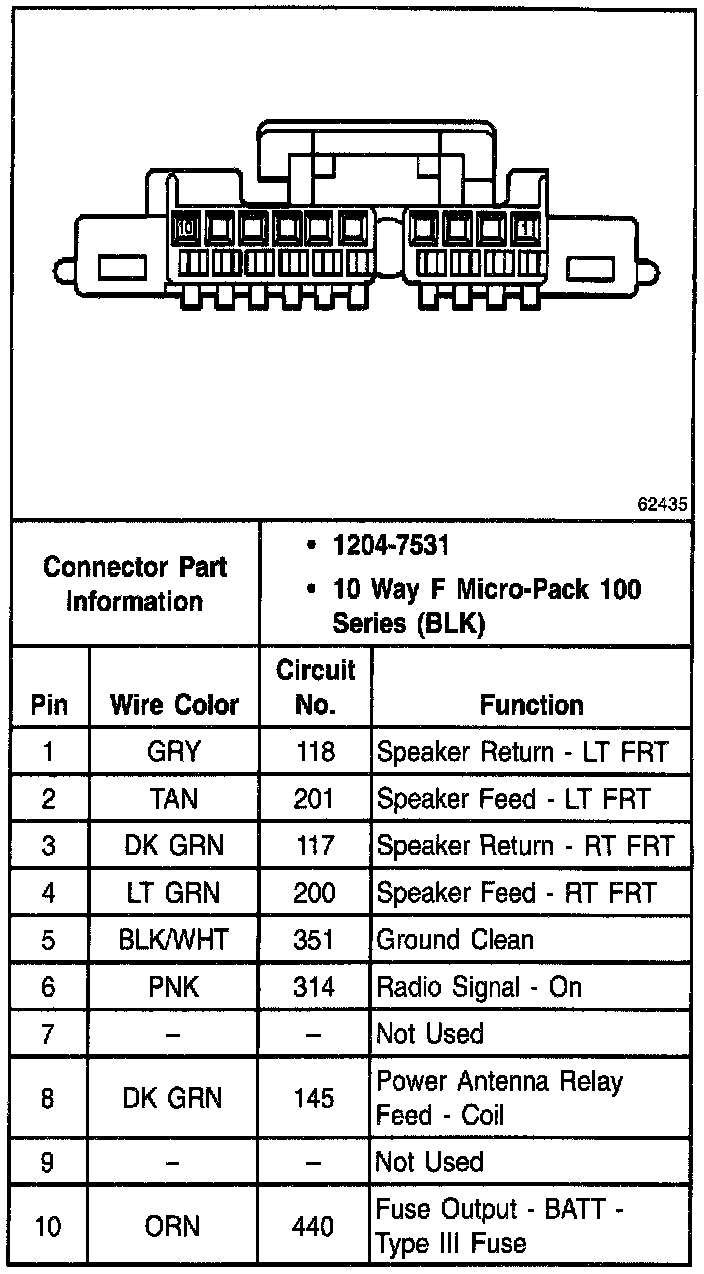

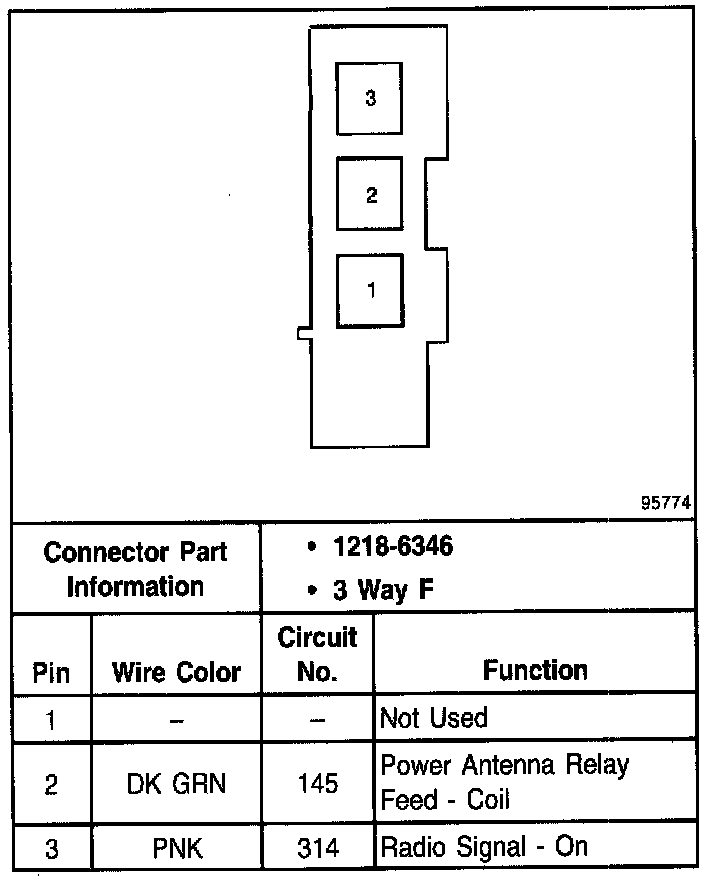

Radio Antenna Module:

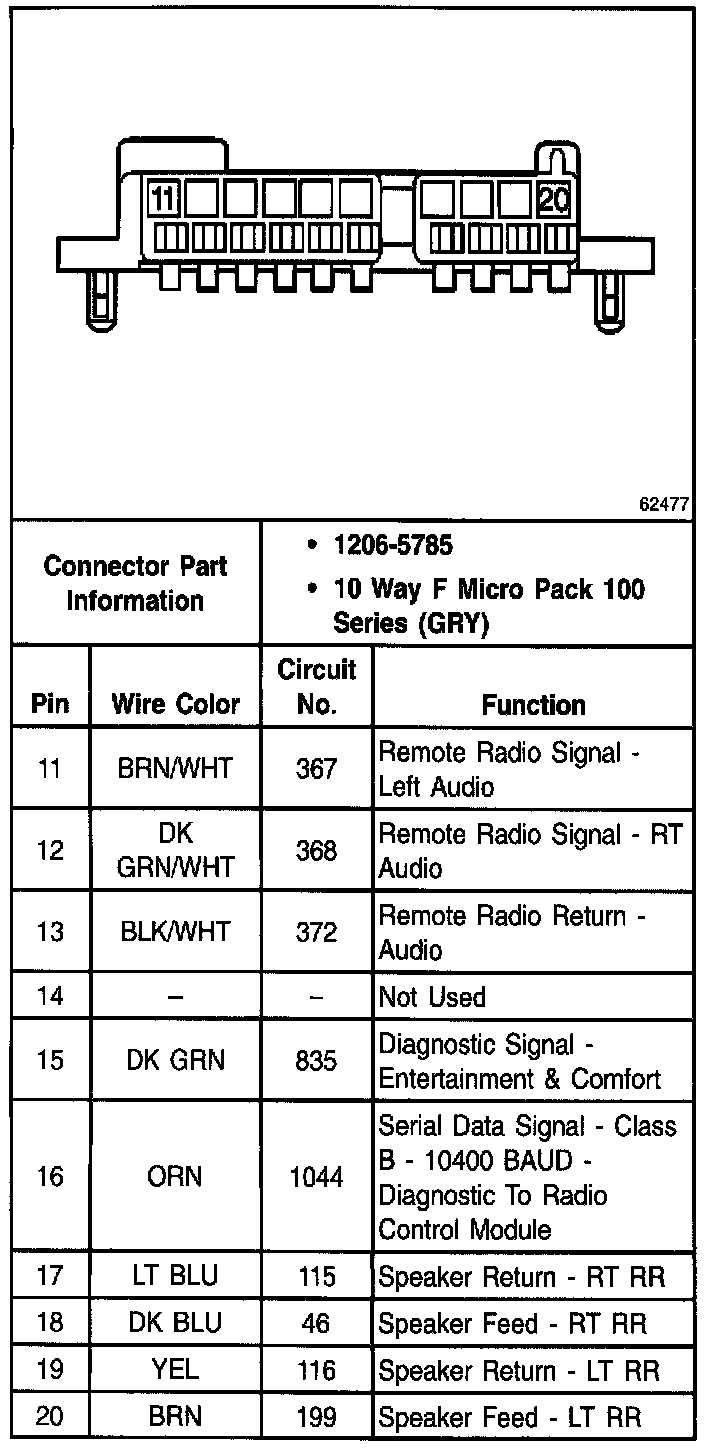

Bose(R) Signal Processor (Part 1 Of 2):

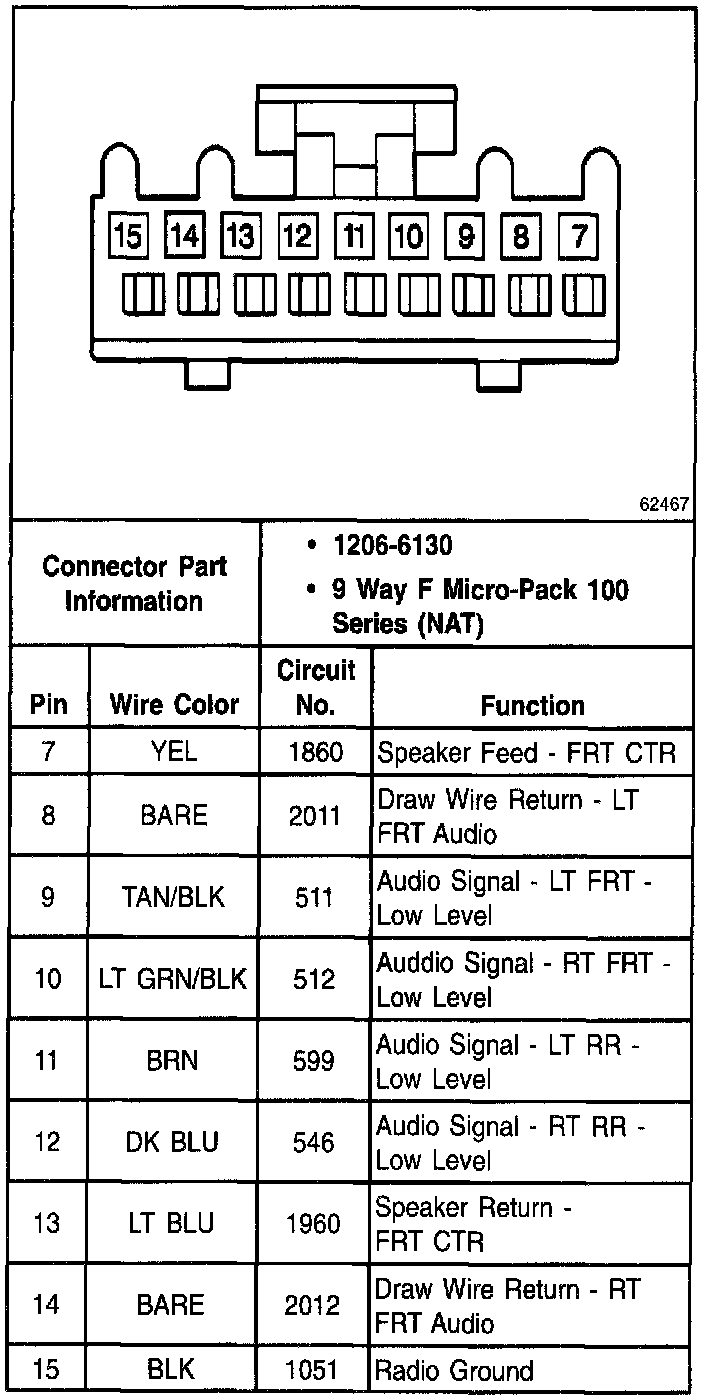

Bose(R) Signal Processor (Part 2 Of 2):

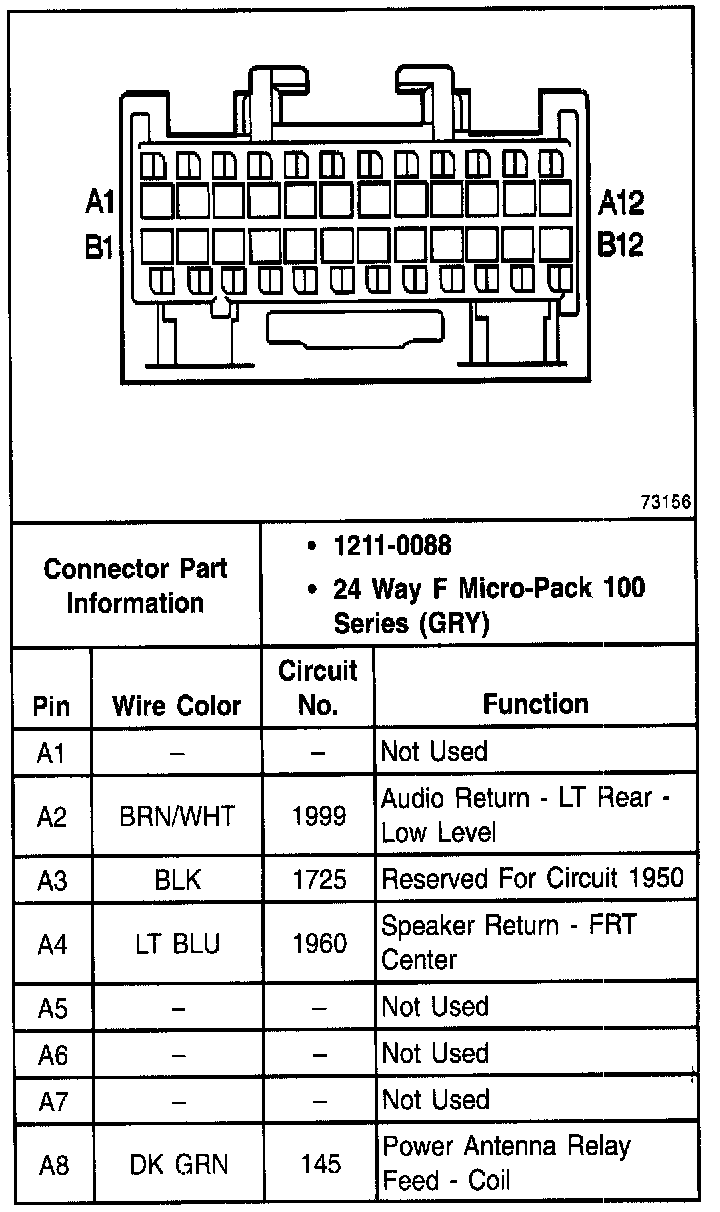

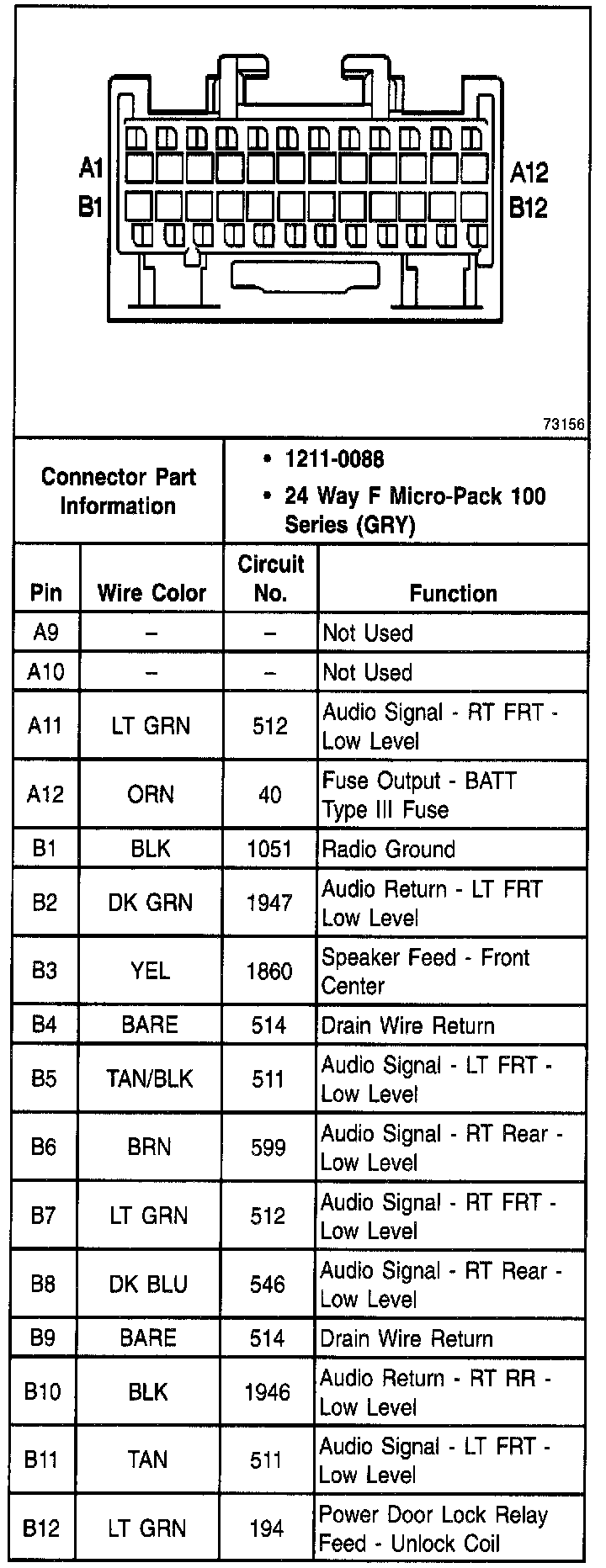

Radio: C1:

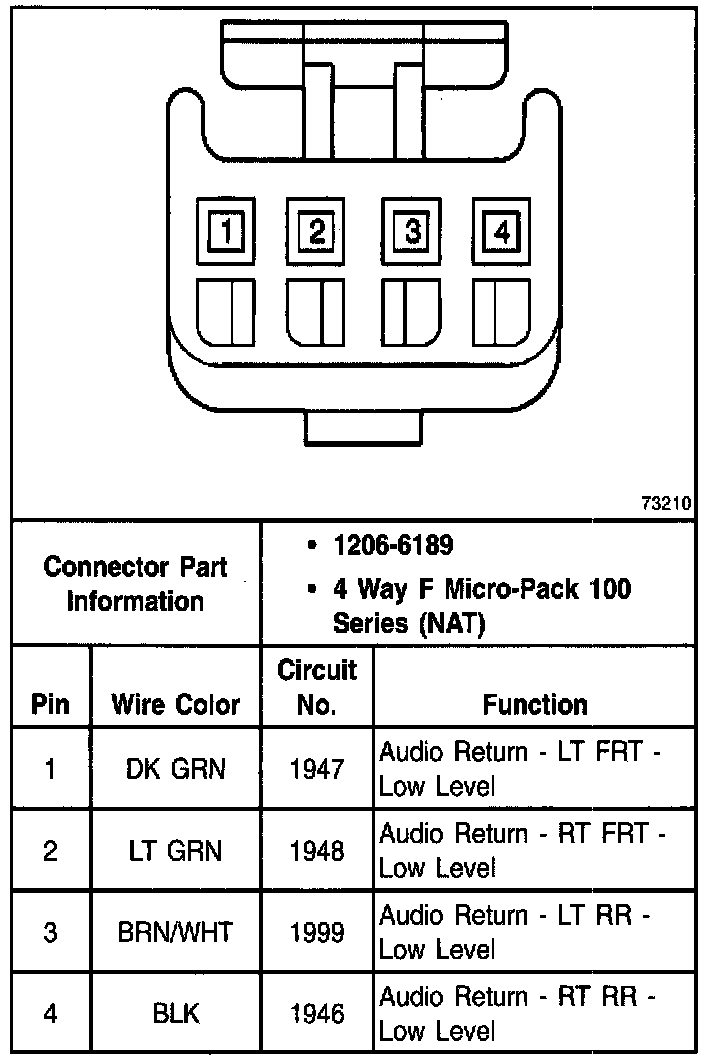

Radio: C2:
Radio: C3:
Radio: C4:
