Liftgate Window Glass Weatherstrip: Service and Repair
REMOVAL PROCEDUREWeatherstrip Replace: Rear Lift Window Opening (Coupe): Removal Procedure:
1. Open the rear lift window and suitably support.
Weatherstrip Replace: Rear Lift Window Opening (Coupe): Removal Procedure:

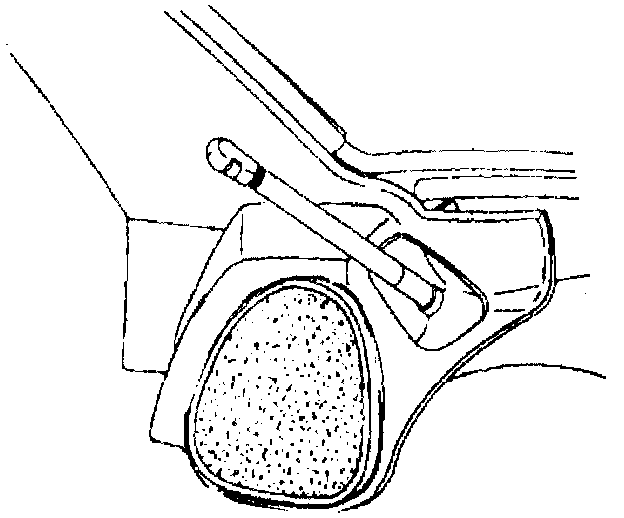

2. Disconnect the upper electrical connectors from the struts.
3. Remove the struts from the lift window ball studs.
Weatherstrip Replace: Rear Lift Window Opening (Coupe): Removal Procedure:

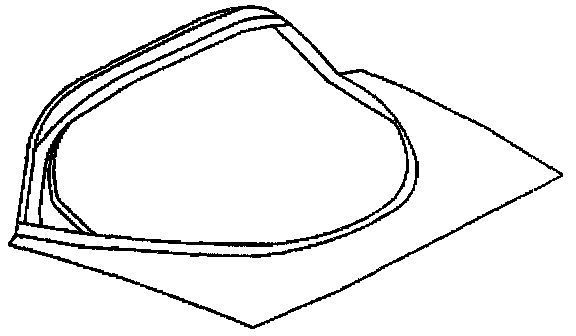

4. Pull the weather-strip from the body flange.
INSTALLATION PROCEDURE
Weatherstrip Replace: Rear Lift Window Opening (Coupe): Installation Procedure:

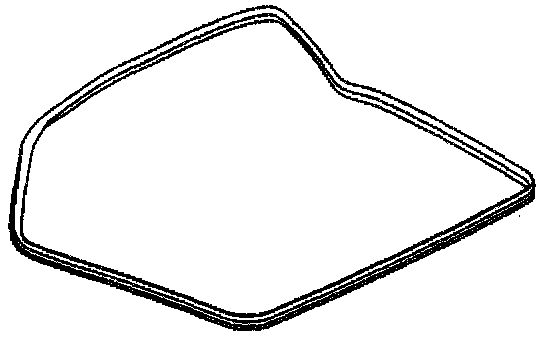

1. Position the weather-strip to the body opening.
2. Starting at the molded corners press the weather-strip firmly onto the body flange.
Weatherstrip Replace: Rear Lift Window Opening (Coupe): Installation Procedure:

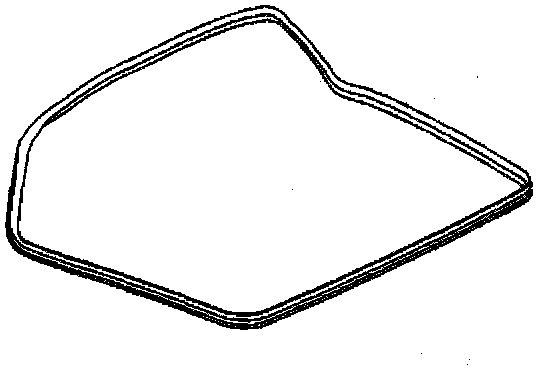

3. Install the struts to the window ball studs.
4. Connect the defogger electrical connectors to the struts.
5. Remove the support and close the lift window.
